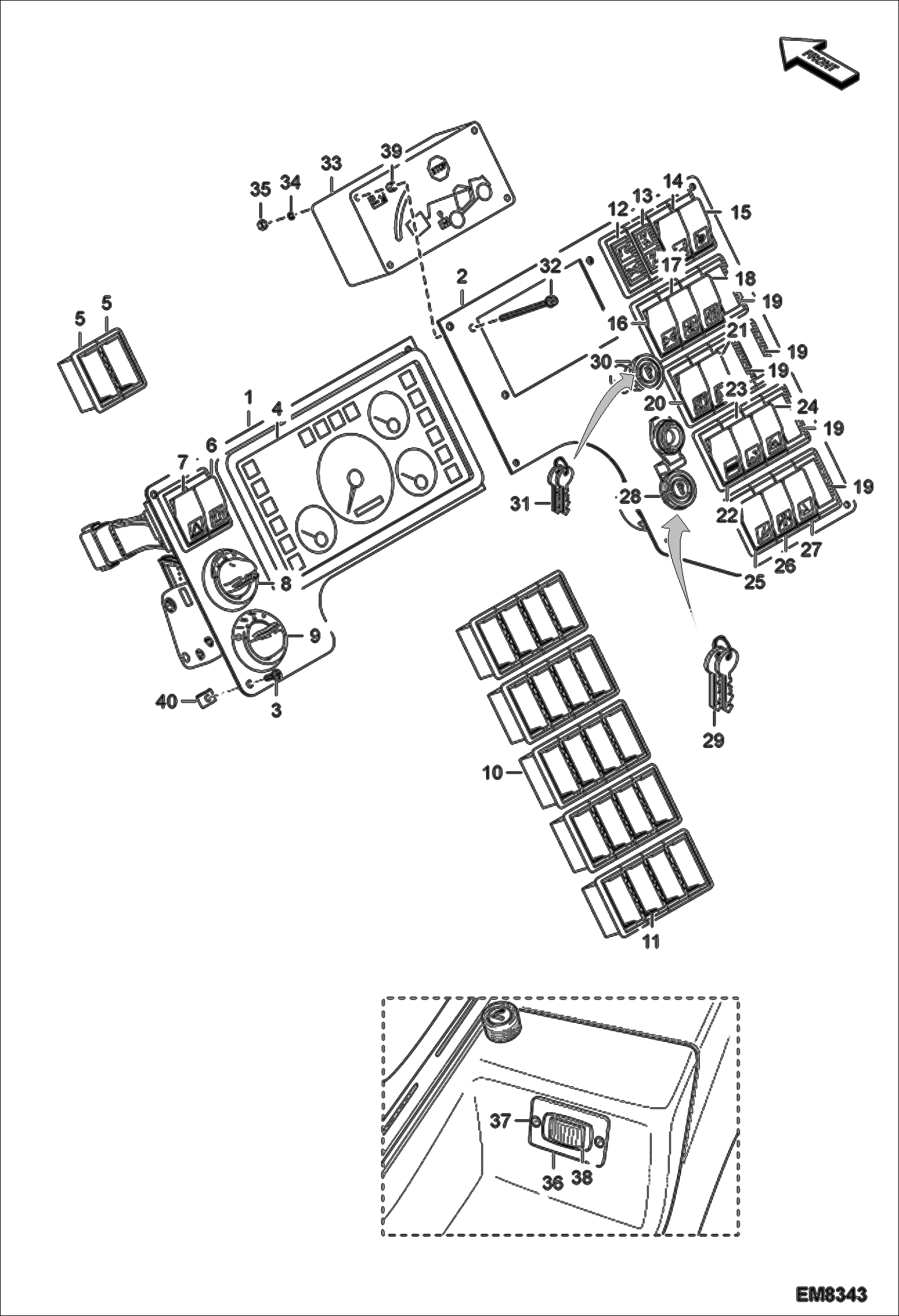

Запчасти Bobcat T35120SL CONTROL PANEL SWITCHES MAIN FRAME

1

96080.7

L.H. control panel plate LH

2

6914170

R.H. control panel plate RH

3

6910505

SCREW

4

6909356

INSTRUMENT , MODULE

5

80220.7

Bezel W/Ref. 6-7

6

96591.3

Switch, beacon light

7

96590.5

Warning Switch

8

96609.3

Heating Control Valve

9

96608.5

Fan Speed Switch

10

80220.7

Bezel W/Ref. 12, 15-16, 19-20, 22, 25 & 28

11

80221.5

Bezel W/Ref. 13-14, 17-19, 21, 23, 24 & 26-28

12

96595.4

Trailer turn indicator

13

96594.7

Steering mode indicator

14

96593.9

Steering mode switch

15

96592.1

Lever Switch

16

96600.2

Switch, head lamp

17

96601.0

Working light switch

18

96597.0

Fog light switch

19

65784.1

Blank Plug

19

65784.1

Blank Plug

20

96602.8

Switch, rear wiper/washer

21

96603.6

Switch, roof wiper Option

22

97519.3

Switch, transmission mode

23

6911728

LOCKING-DECOMPRESSION SWITCH Was 96606.9 - B

24

6910895

SWITCH, HYD AUX

25

6910560

SWITCH LEFT STABILISATOR

26

6910558

SWITCH LOCK STABILISATOR

27

6910561

SWITCH RIGHT STABILISATOR

28

6928151

SWITCH, IGNITION (WITHOUT CAP) W/Ref. 29 Was 55438.6 - B

29

6926414

SET OF KEYS Was 57189.3 - A

30

97885.8

Knob block W/Ref. 31

30

97886.6

Knob head

31

97054.1

Set of keys

32

68566.9

Screw

33

6913764

INDICATOR Was 6913047 - A

34

13415.5

Washer

35

4DM5

NUT Was 01665.9 - A

36

6914586

SUPPORT

37

6910951

SCREW

38

96598.8

Switch (proportional) Includes knob, cable and connector

39

6910953

SPACER,JOYSTICK

40

6909903

CLIPS
