Запчасти Bobcat T35120L BOOM HYDRAULIC INSTALLATION HYDRAULIC SYSTEM

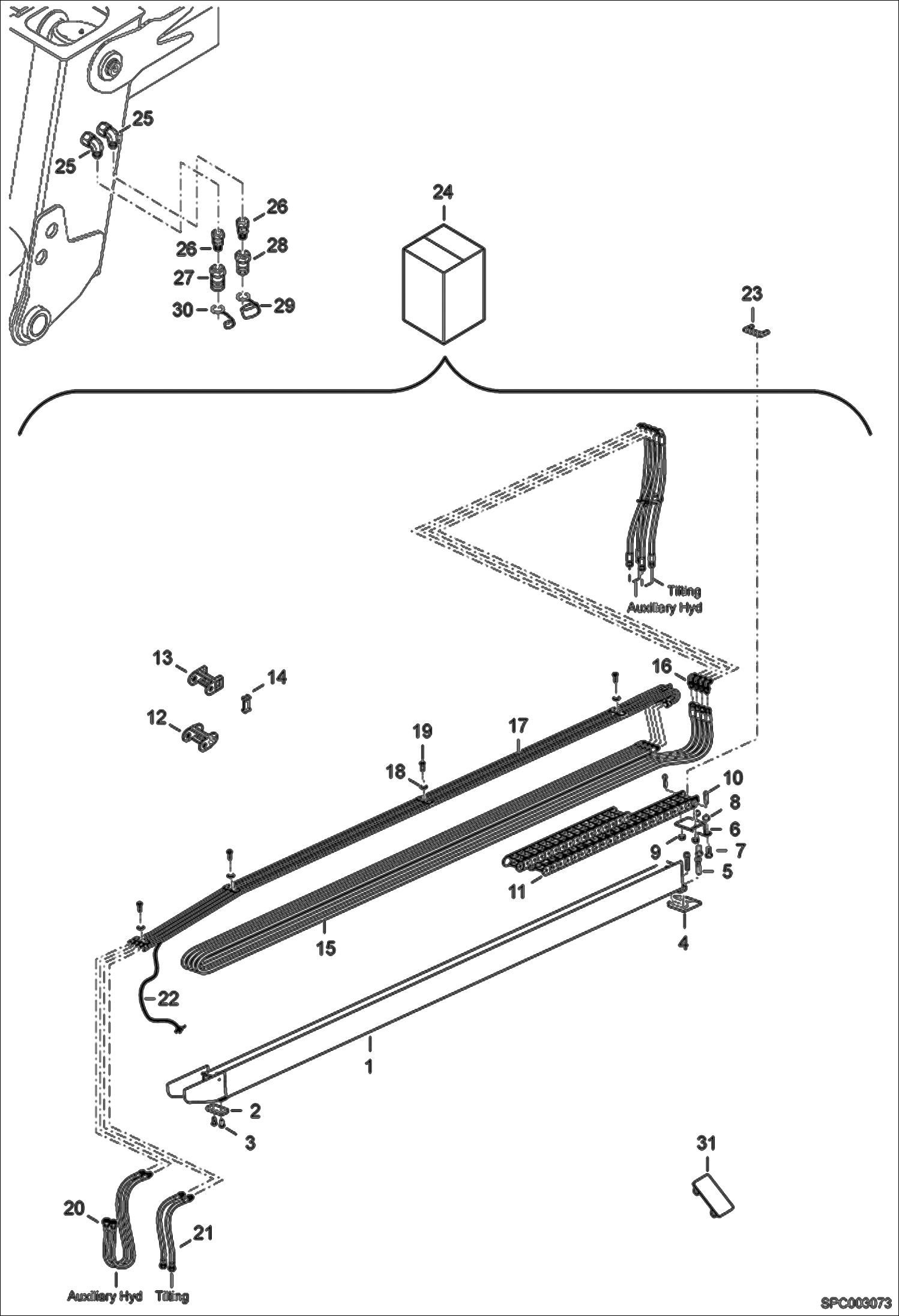

Схема запчастей Bobcat T35120L - BOOM HYDRAULIC INSTALLATION HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6910842

CHANNEL

2

6910307

PATIN

3

7214544

SCREW Was 95502.1 - A

4

7215444

SLIDE Was 6915701 - A

5

6GM1040

SCREW Was 88540.0 - A

6

6910278

PLATE

7

01605.5

Screw

8

100345-09A

NUT

9

100345-05V

NUT

10

6GM525

SCREW Was 33786.5 - A

11

6909226

CHAIN W/Ref. 12-14

12

95571.6

Link

13

95572.4

Link

14

95088.1

Chain spacer

15

6910210

HOSE

16

010370-57L

ELBOW UNION

17

6909214

HYDRAULIC PIPE ASSY

18

01718.6

Washer

19

4CM825

BOLT Was 01597.4 - B

20

76401.9

Hose

21

80407.0

Hose

22

6911736

WIRE HARNESS 2 or 3 wires

23

7215442

PLATE, CHAIN FIXATION Was 6909681 - A

24

6916579

HYDRAULIC ARM - CHANNEL ASSY W/Ref. 1-22

25

010370-90W

ELBOW PIECE

26

7225156

FITTING, HYD Was 022375-06W - A

27

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

28

7225159

COUPLER, HYD Was 95994.0 - A

29

7225160

CAP, COUPLER Was 96513.7 - A

30

7225161

CAP, COUPLER Was 96514.5 - A

31

7178513

CAP, SOCKET

Выбрано товаров: 31
