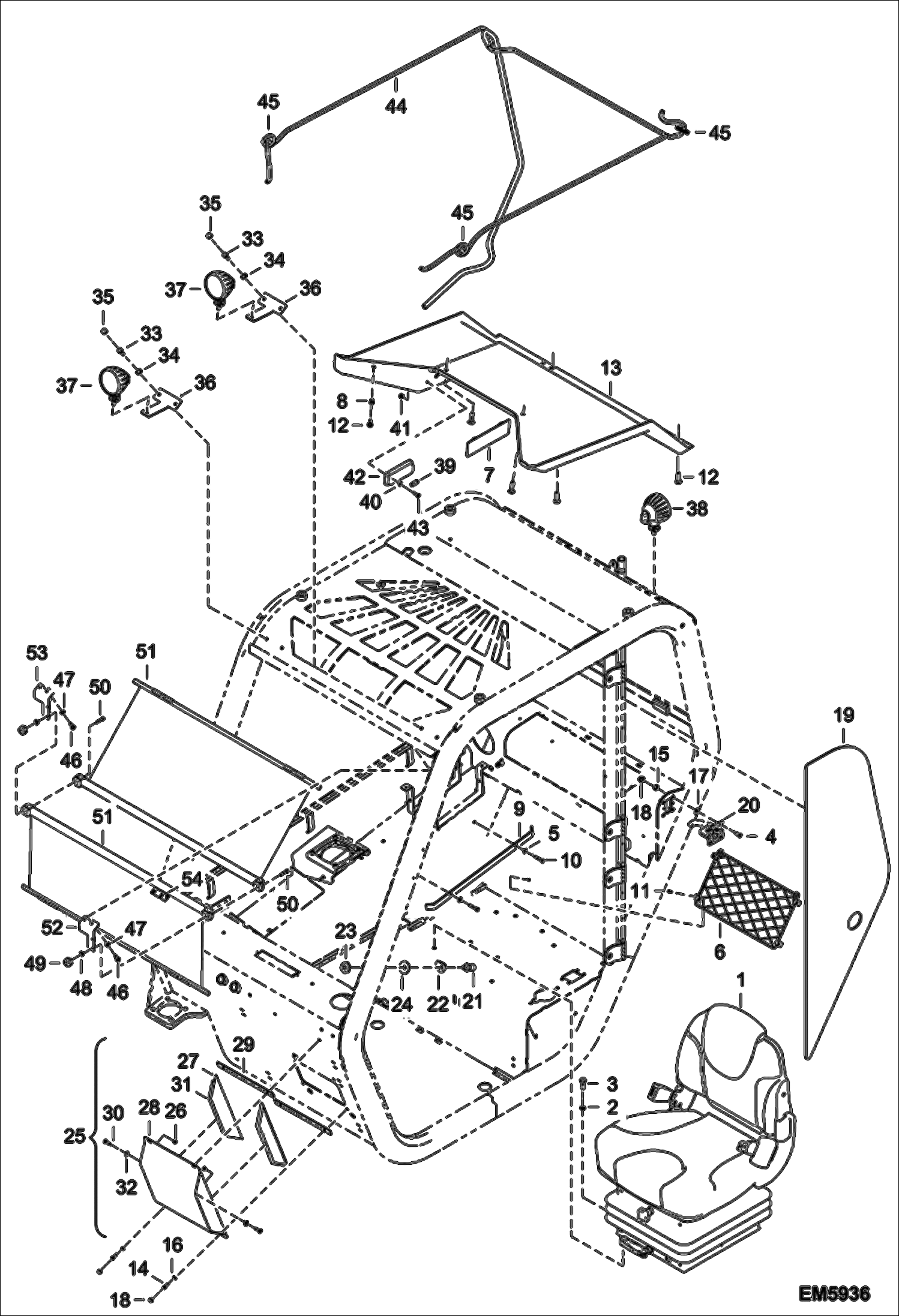

Запчасти Bobcat T35120L OPERATOR CAB II (S/N A8GS13000 & Above) MAIN FRAME

1

SEAT ASSY See Illustration SEAT & SUSPENSION/ EM10097 NAP - Order # 7181512 or #7218933 Was 6932751 - A

1

7181512

SEAT See Illustration SEAT & SUSPENSION/ EM10096 W/headrest Was 7181512 - A

1

7218933

SEAT See Illustration SEAT & SUSPENSION/ EM10095 W/O headrest

2

89519.3

Washer

3

1CM820

BOLT Was 01596.6 - B

4

25GM5016

BOLT

5

01717.8

Washer

6

7193037

NET, MANUAL Was 75883.9 - B

7

79581.5

Cover

8

86167.4

Nut

9

97504.5

Bracket

10

100338-23F

SCREW

11

6910999

SCREW

12

6932399

SCREW

13

6932400

UPPER COWLING

14

01590.9

Screw

15

01666.7

Nut

16

01696.4

Washer

17

01717.8

Washer

18

63332.1

Cap

19

6908789

WINDOW PANE,REAR LEFT

20

6910552

DOOR STOP

21

6918345

CATCH Was 6910946 - B,D

22

6910947

LATCH PROTECTOR

23

6910948

CATCH,LATCH

24

6910949

WASHER

25

6918862

BOX FILTER Ref. 26-32

26

01664.2

Nut

27

6910502

FILTER

28

6910503

FILTER BOX

29

6910504

SEAL

30

6910505

SCREW

31

6910929

INTERNAL GRID

32

6910936

WASHER JZC4

33

01591.7

Screw

34

29272.2

Washer

35

63332.1

Cap

36

6932245

BRACKET

37

7146784

WORK LIGHT front

37

7021771

BULB GE886 12V-50W 12V - 50W

38

7146784

WORK LIGHT rear

38

7021771

BULB GE886 12V-50W 12V - 50W

39

7228077

BULB, LIGHT Was 01443.1 - A

40

007346-02F

WASHER

41

100345-04U

NUT

42

7228070

LIGHT, DOME Was 101438-93V - A

43

6910505

SCREW

44

6932244

HARNESS, UPPER

45

6909953

GROMMET , 37X45X32/3

46

01590.9

Screw

47

01696.4

Washer

48

007346-02F

WASHER

49

100345-04U

NUT

50

6917991

SCREW

51

6927382

SUNVISOR

52

6928237

BRACKET SUNVISOR

53

6932388

BRACKET SUNVISOR

54

6932830

SPACER
