Запчасти Bobcat T35120L COUNTERWEIGHT MAIN FRAME

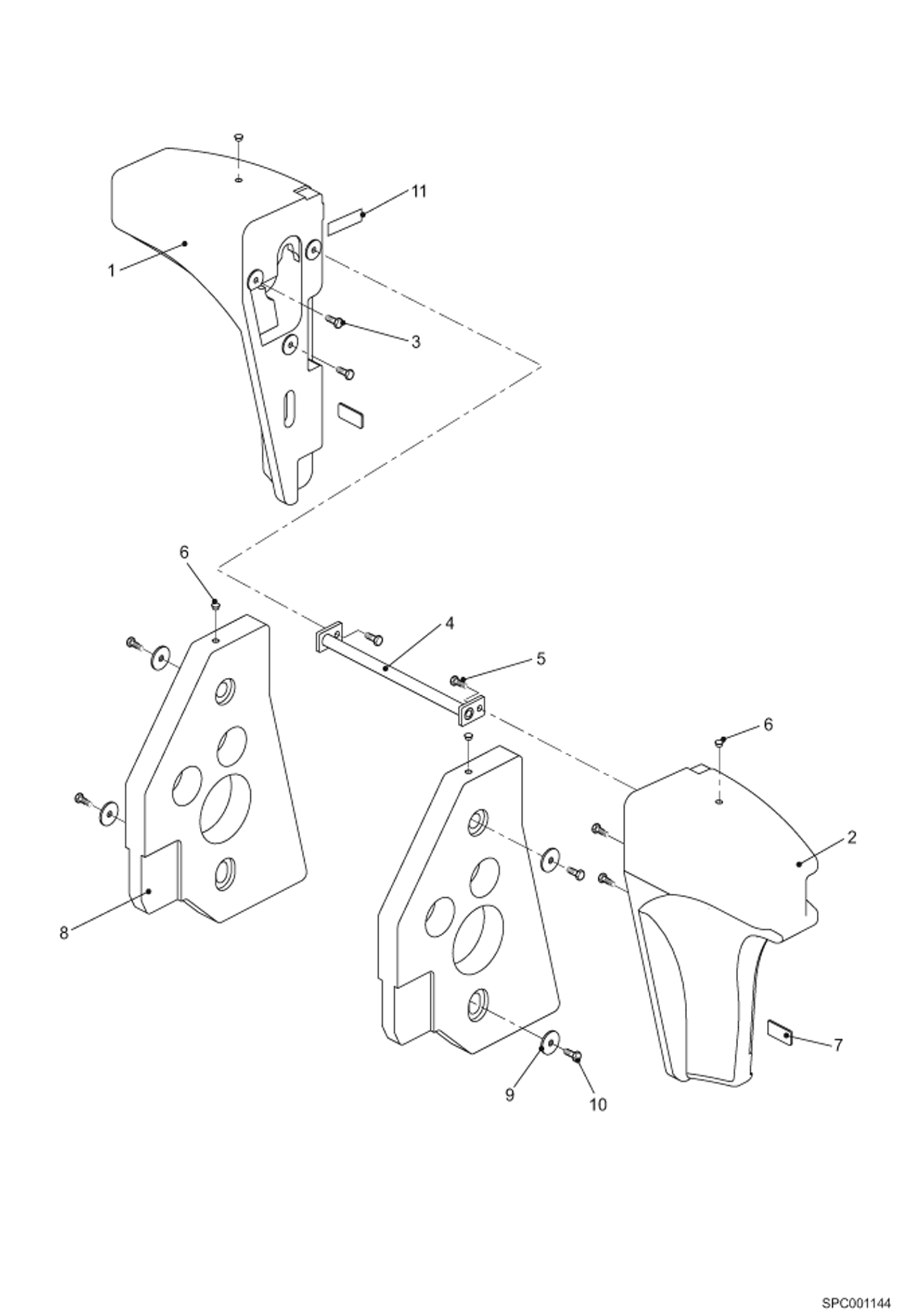

Схема запчастей Bobcat T35120L - COUNTERWEIGHT MAIN FRAME

Артикул

Название

Примечание

Количество

1

90841.8

Counterweight RH

2

90842.6

Counterweight LH

3

01547.9

Screw

4

6910496

TUBE

5

01549.5

Screw

6

7213176

PLUG Was 94548.5 - A

7

7214281

DECAL, REFLECTIVE Was 59736.9 - A

8

6915839-B

COUNTERWEIGHT Was 6915839 - B

9

56726.3

Washer

10

1CM1630

BOLT Was 10882.9 - A

11

6910909

FOAM STRIP

Выбрано товаров: 11
