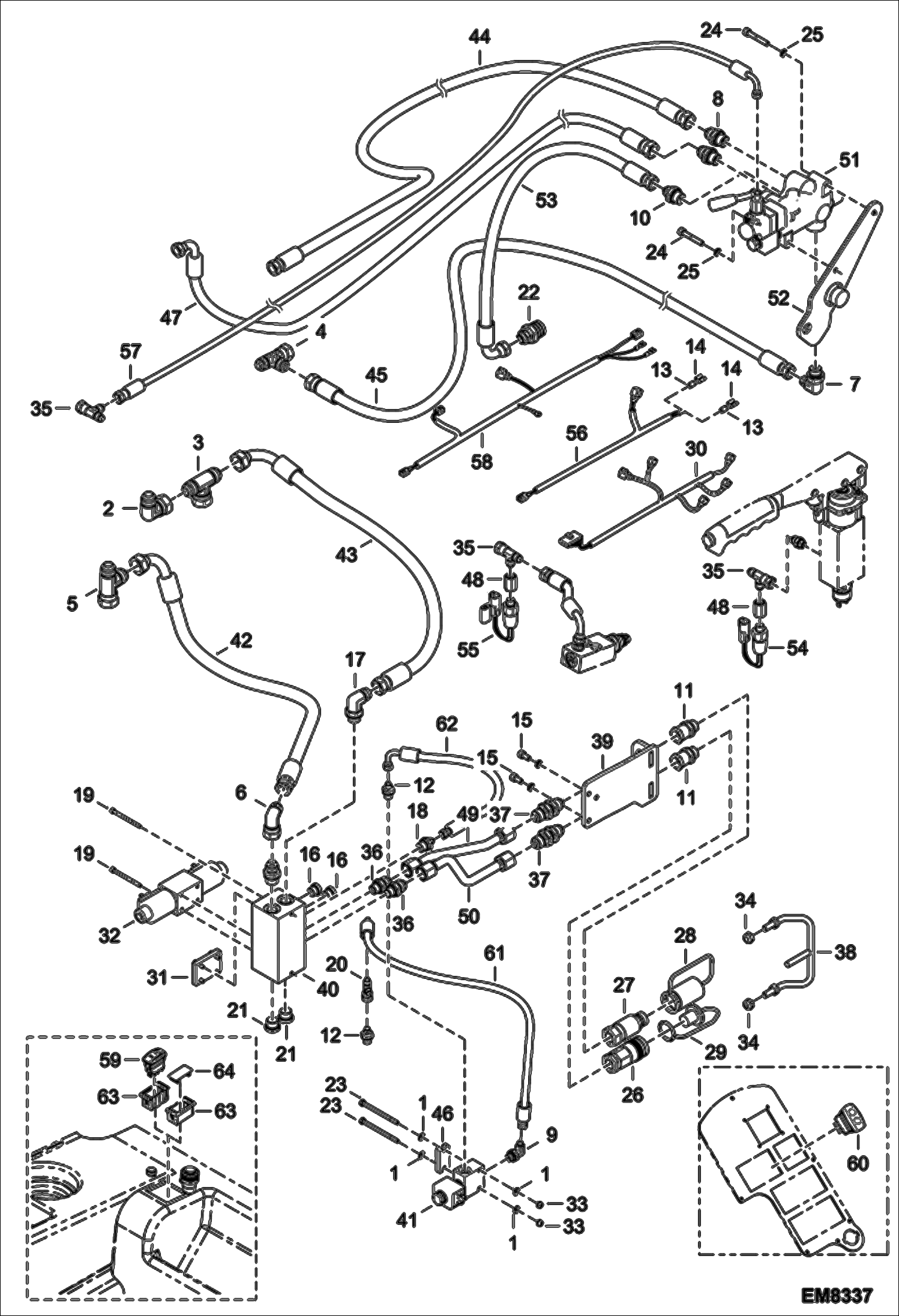

Запчасти Bobcat T35120L REAR AUXILIARY HYDRAULICS & TRAILER BRAKE (Italy Version) (S/N A8GJ15000 & Above, A8GV15000 & Above) ACCESSORIES & OPTIONS

1

000350-01U

WASHER

2

008372-14Q

ELBOW

3

008372-21X

TEE

4

008372-28F

UNION

5

008372-34M

UNION

6

010370-90W

ELBOW PIECE

7

010370-93A

ELBOW PIECE

8

014375-30H

UNION

9

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

10

022375-04U

UNION

11

7225156

FITTING, HYD Was 022375-06W - A

12

022375-28V

UNION

13

26261.8

Clip

14

26263.4

Sleeve Was 26267.5 - A

15

6GM816

SCREW Was 29649.1 - A

16

56029.2

Plug

17

65285.9

Elbow

18

65614.0

Union

19

68566.9

Screw

20

69485.1

T- union

20

69485.1

T- union

21

78743.2

Drain plug

22

79170.7

Coupling

23

80643.0

Screw

24

88271.2

Screw

25

89519.3

Washer

26

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

27

7225159

COUPLER, HYD Was 95994.0 - A

28

7225161

CAP, COUPLER Was 96513.7 - A

29

7225161

CAP, COUPLER Was 96514.5 - A

30

96589.7

Wire harness

31

98353.6

Plate

32

98360.1

Union

33

100345-06W

NUT

34

100345-09A

NUT

35

100372-06G

UNION

36

100375-39T

UNION 7/8 JIC 3/8 BSP

37

100375-52H

UNION

38

6910517

PROTECTOR

39

6910523

SUPPORT

40

6911079

HYDRAULIC BLOCK

41

6911845

SOLENOID 2-2

42

6913675

FLEXIBLE

43

6913675

FLEXIBLE

44

6913684

Hose

45

6913684

Hose

46

6915305

SPACER

47

6916641

HOSE

48

6916745

UNION

49

6922003

HYDRAULIC TUBE

50

6922004

HYDRAULIC TUBE

51

6922655

VALVE

52

6922966

VALVE, SUPPORT

53

6923062

HOSE

54

6923136

PRESSURE SWITCH 232 PSI (16 bar)

55

6923401

PRESSURE SWITCH 1450 PSI (100 bar)

56

6923530

HARNESS, WIRE

57

6923537

HOSE

58

6923576

WIRE HARNESS

59

6927725

SWITCH, REAR HYD

60

6932019

INDICATOR, TRAILER BRAKE

61

6933605

HOSE, HYD

62

6933606

HOSE, HYD

63

7178511

SOCKET, END

64

7178513

CAP, SOCKET
