Запчасти Bobcat T35120L ELECTRIC CIRCUIT SECURITY ELECTRICAL SYSTEM

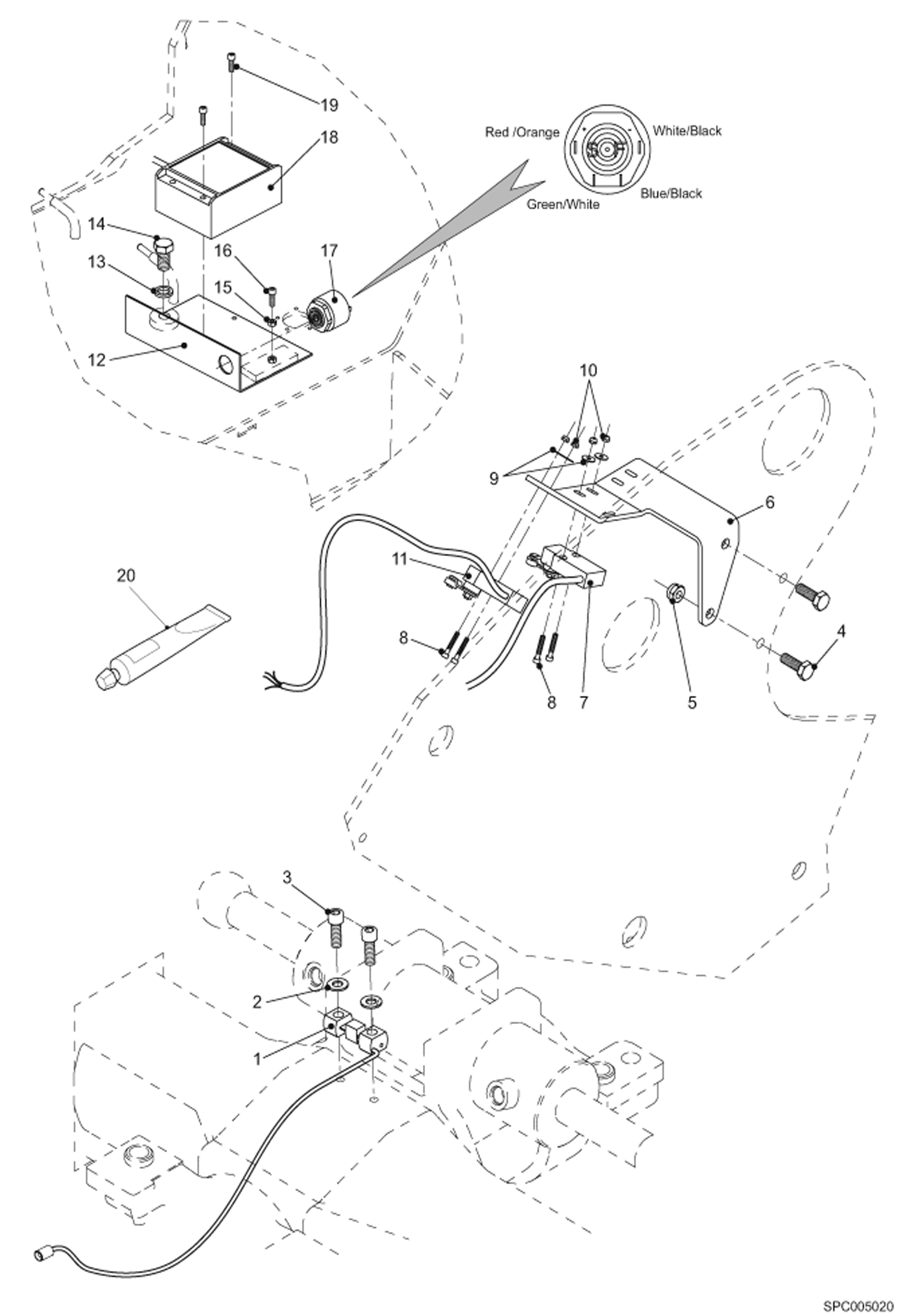

Схема запчастей Bobcat T35120L - ELECTRIC CIRCUIT SECURITY ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6914109

SENSOR, LOAD

2

000350-03W

WASHER

3

2GM1030

SCREW Was 01640.2 - A

4

01606.3

Screw

5

100345-09A

NUT

6

6911477

PLATE

7

6911738

SWITCH

8

53100.4

Screw

9

61378.6

Washer

10

100345-04U

NUT

11

92972.9

Switch

12

6913189

Support

13

89518.5

Washer

14

1CM1630

BOLT Was 10882.9 - A

15

01666.7

Nut

16

10167.5

Screw

17

BUZZER Was 90913.5 - A

18

6914946

Inclinometer Was 6911367 - A

19

6GM525

SCREW Was 33786.5 - A

20

6901596

GREASE

Выбрано товаров: 20
