Запчасти Bobcat T35120L HYDRAULIC PUMP INSTALLATION HYDRAULIC SYSTEM

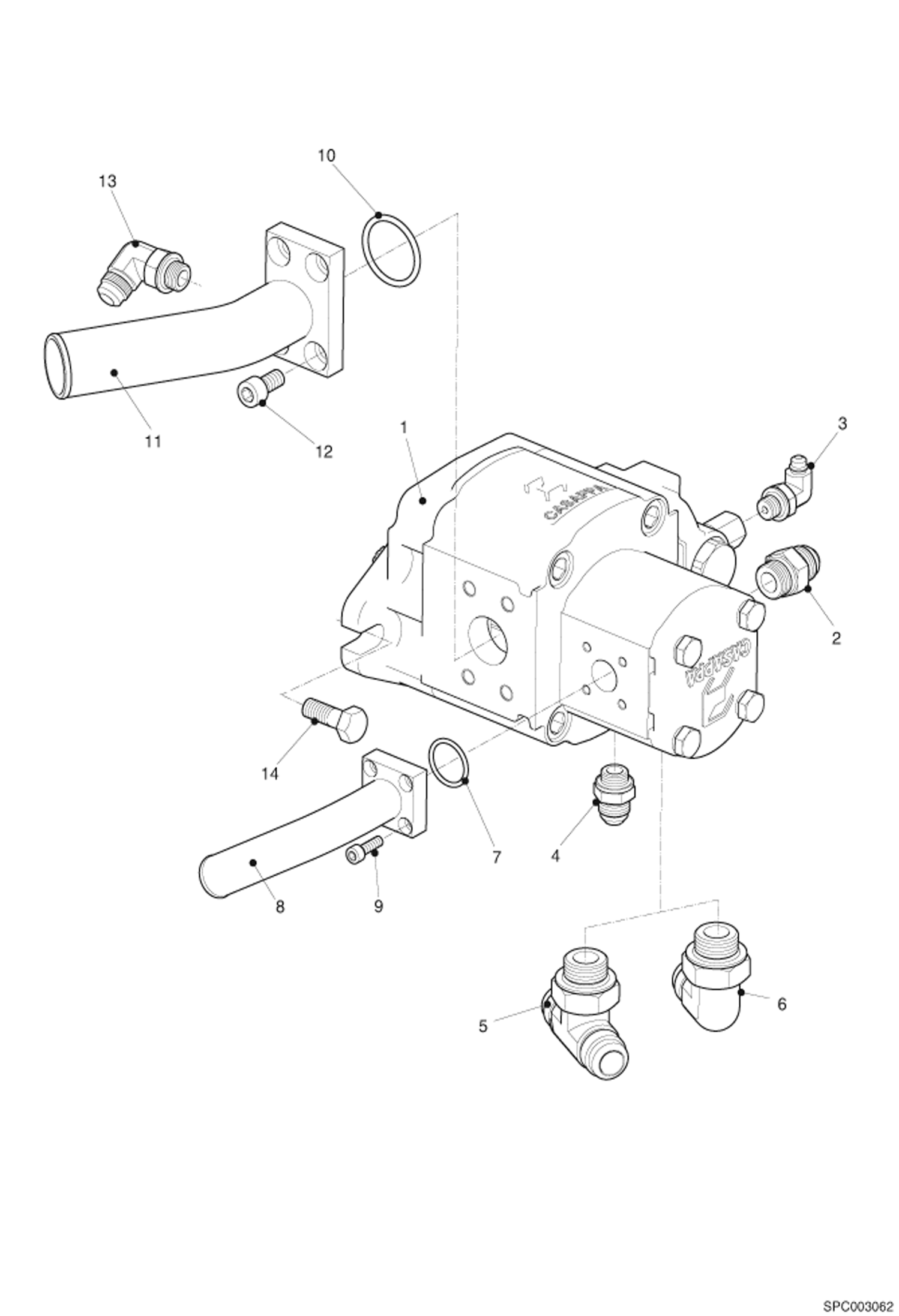

Схема запчастей Bobcat T35120L - HYDRAULIC PUMP INSTALLATION HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6909447

PUMP, HYD ASSY See Illustration HYDRAULIC PUMP ASSY/ SPC003029

2

022375-04U

UNION Was 014375-30H

3

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

4

100375-38S

UNION

5

80732.1

T- union t-union

6

100370-31R

ELBOW PIECE

7

93049.5

O-ring

8

6908091

FLANGE D20 T25

9

10167.5

Screw

10

92637.8

O-ring

11

6911767

FLANGE SAE 1''

12

10662.5

Screw

13

010370-94B

ELBOW PIECE

14

26160.2

Screw

Выбрано товаров: 14
