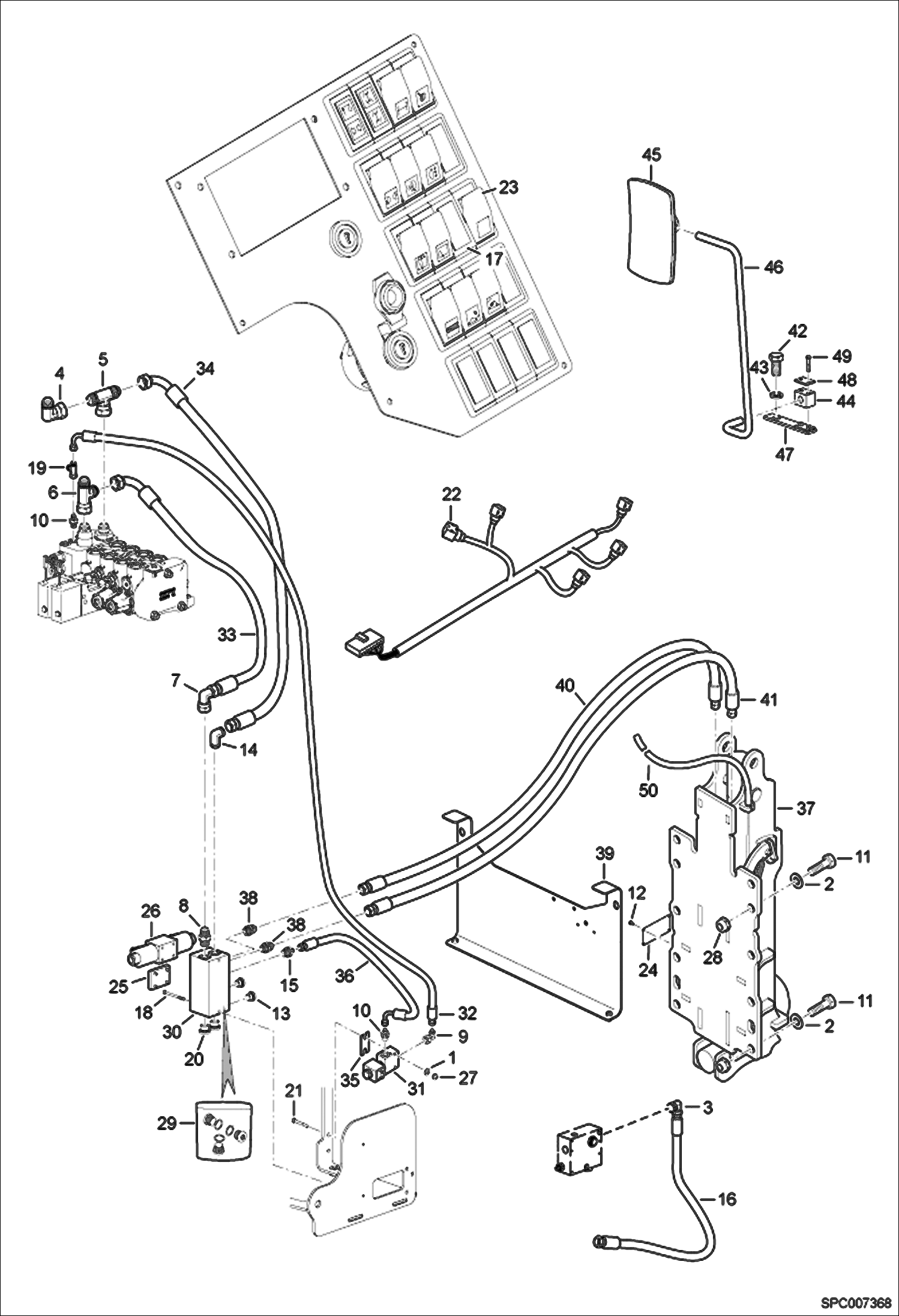

Запчасти Bobcat T35100SL REAR HYDRAULIC HOOK INSTALLATION ACCESSORIES & OPTIONS

1

000350-01U

WASHER

2

000350-08C

WASHER

3

008372-01B

ELBOW PIECE

4

008372-14Q

ELBOW

5

008372-21X

TEE

6

008372-34M

UNION

7

010370-90W

ELBOW PIECE

8

014375-30H

UNION

9

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

10

022375-28V

UNION

11

1CM2060

SCREW Was 39584.8 - A

12

43824.2

Rivet

13

56029.2

Plug

14

65285.9

Elbow

15

65614.0

Union

16

65715.5

Hose

17

65784.1

Blank Plug

18

68566.9

Screw

19

69485.1

T- union

20

78743.2

Drain plug

21

1CM650

SCREW Was 48829.6 - A

21

80643.0

Screw

22

96589.7

Wire harness

23

96598.8

Switch (proportional)

24

PLATE NAP

25

98353.6

Plate

26

98360.1

Union

27

100345-06W

NUT

28

100345-20M

NUT

29

6912535

SET OF PLUG

30

6911079

HYDRAULIC BLOCK

31

6911845

SOLENOID 2-2

32

6912226

FLEXIBLE

33

6913675

FLEXIBLE

34

6913675

FLEXIBLE

35

6915305

SPACER

36

6916079

HOSE

37

6917366

HOOK See Illustration REAR HYDRAULIC HOOK/ EM5349 Was 82425.0 - A

38

6919773

UNION

39

6922478

REAR HOOD Was 6919717 - A

40

6925927

HOSE

41

6925927

HOSE

42

01620.4

Screw Was 96467.6 - A

43

15323.9

Washer

44

7179623

SLEEVE Was 61358.8 - A

45

63860.1

Mirror

46

79300.0

Pipe

47

84648.5

Plate

48

100228-57K

COVER

49

100338-23F

SCREW

50

7009791

CABLE PULL
