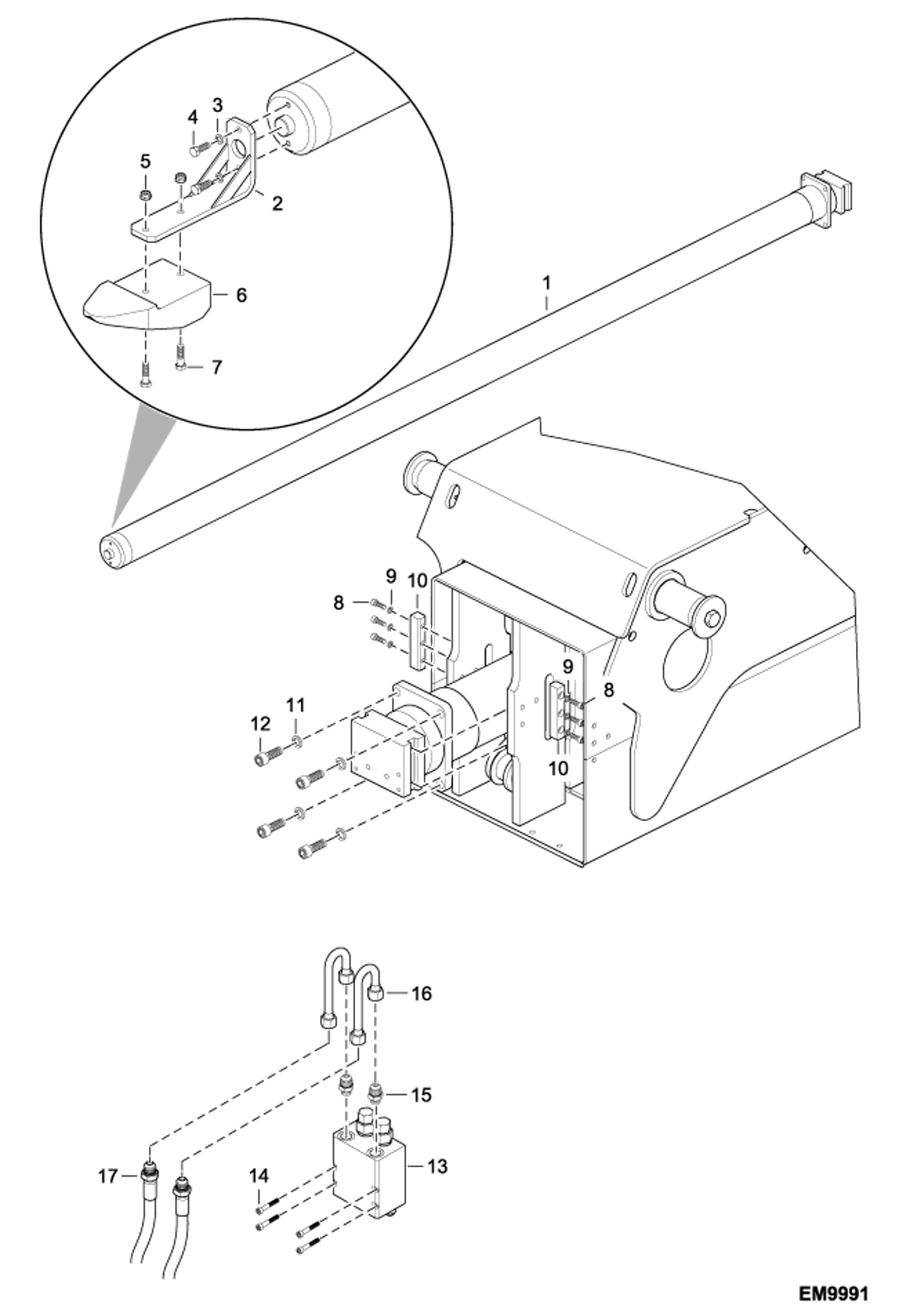

Запчасти Bobcat T35100L TELESCOPE CYLINDER INSTALLATION HYDRAULIC SYSTEM

1

6918738

Cylinder See Illustration TELESCOPE CYLINDER/ SPC003186

2

6909220

SUPPORT

3

11689.7

Washer

4

01613.9

Screw

5

000345-96E

NUT

6

6909072

SHOE

7

01615.4

Screw

8

100329-07J

SCREW

9

7225260

WASHER Was 89516.9 - A

10

6912235

INSTRUCTIONS MANUALS Was 6925399 - D

11

89518.5

Washer

12

6GM1645

SCREW Was 97851.0 - A

13

6909412

VALVE

14

01636.0

Screw

15

014375-30H

UNION

16

6910769

HYDRAULIC PIPE

17

96779.4

Hose
