Запчасти Bobcat T35100L INTERMEDIATE BOOM (S/N 366211001 & Above) MAIN FRAME

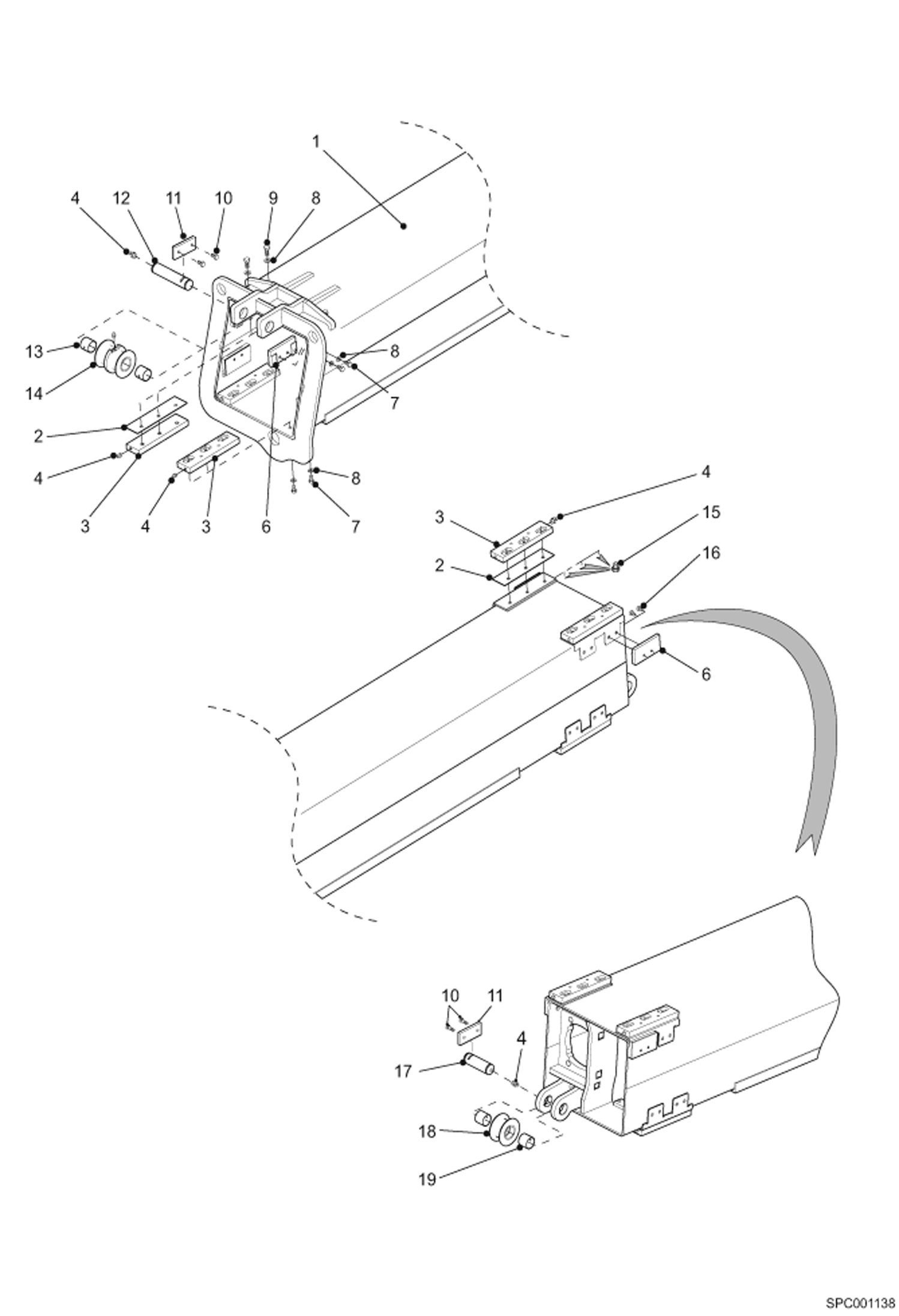

Схема запчастей Bobcat T35100L - INTERMEDIATE BOOM (S/N 366211001 & Above) MAIN FRAME

Артикул

Название

Примечание

Количество

1

6915224

ARM

2

98300.7

Shim 1 mm

2

98301.5

Shim 2 mm

2

98302.3

Shim 3 mm

3

95501.3

Shoe

4

01775.6

Grease Nipple

6

98344.5

Shoe 11 mm

6

98343.7

Shoe 12 mm

6

98342.9

Shoe 13 mm

6

98341.1

Shoe 14 mm

6

98340.3

Shoe 15 mm

7

1CM816

BOLT Was 01595.8 - A

8

01697.2

Washer

9

1CM820

BOLT Was 01596.6 - B

10

01604.8

Screw

11

7213585

PLATE Was 6915193 - A

12

7213338

PIN Was 6915214 - A

13

95541.9

Bush

14

6915195

PULLEY

15

7214544

SCREW Was 95502.1 - A

16

7214543

SCREW Was 98303.1 - A

17

7213340

PIN Was 6915215 - A

18

95539.3

Pulley

19

95541.9

Bush

Выбрано товаров: 24
