Запчасти Bobcat T35100L TRAILER BRAKE (S/N A8HD15000 & Above, A8GW15000 & Above, A8GT15000 & Above) ACCESSORIES & OPTIONS

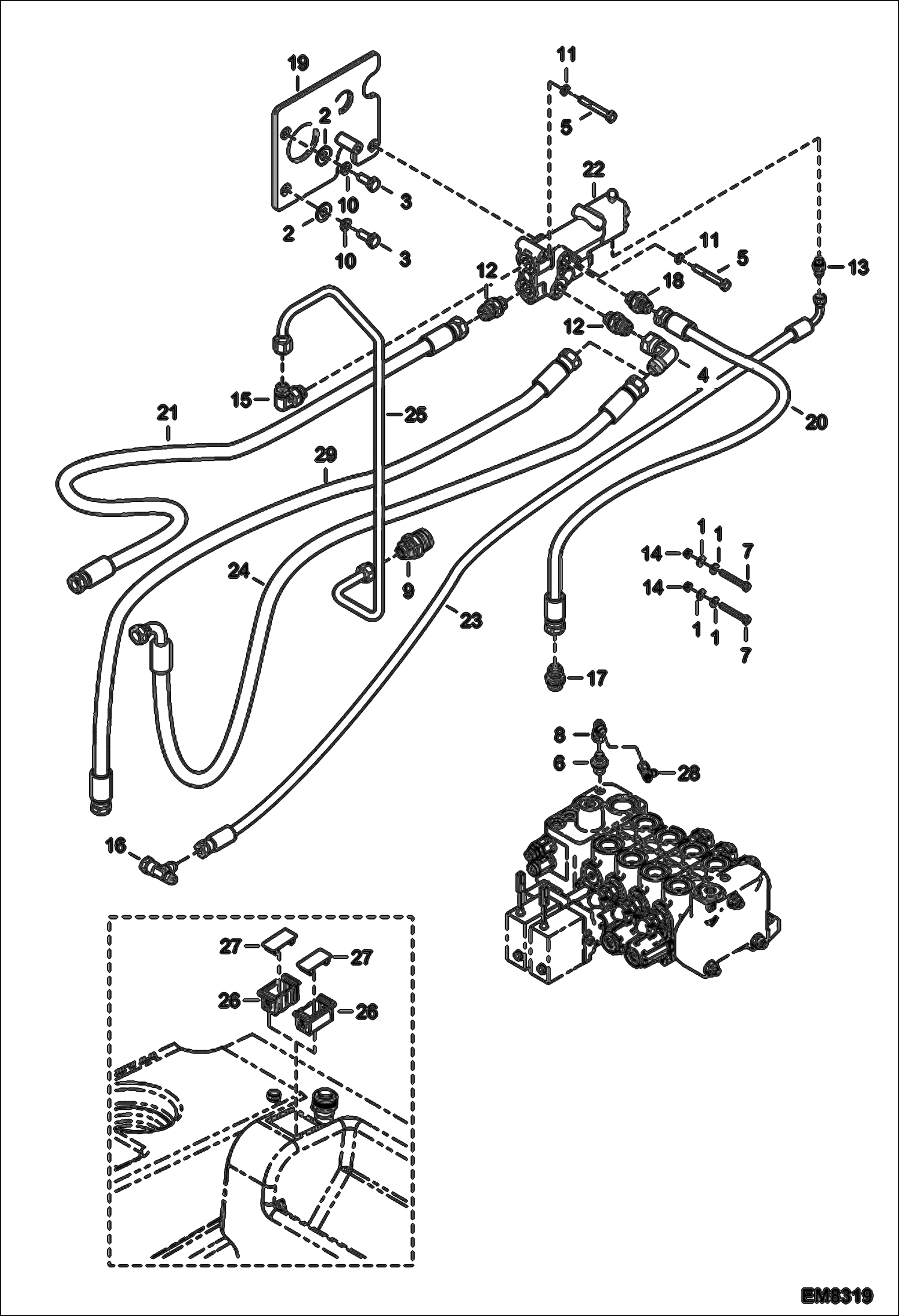

Схема запчастей Bobcat T35100L - TRAILER BRAKE (S/N A8HD15000 & Above, A8GW15000 & Above, A8GT15000 & Above) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

000350-01U

WASHER

1

000350-01U

WASHER

2

000350-21R

WASHER

3

01605.5

Screw

4

010370-90W

ELBOW PIECE

5

10947.0

Screw

6

022375-28V

UNION

7

1CM650

SCREW Was 48829.6 - A

8

72294.2

Elbow union

9

79170.7

Coupling

10

7225260

WASHER Was 89516.9 - A

11

89519.3

Washer

12

96568.1

Union

13

96580.6

Union

14

100345-06W

NUT

15

7228465

FITTING, HYD ELBOW Was 100370-06P - A

16

100372-06G

UNION

17

100375-38S

UNION

18

100375-56M

UNION

19

6913021

Support

20

6913650

Hose

21

6913684

Hose

22

6915262

VALVE

23

6916961

HOSE

24

6917394

HOSE

25

6917437

Tube

26

7178511

SOCKET, END

27

7178513

CAP, SOCKET

28

69485.1

T- union

29

6913684

Hose

Выбрано товаров: 30
