Запчасти Bobcat T35100L STEERING COLUMN INSTALLATION MAIN FRAME

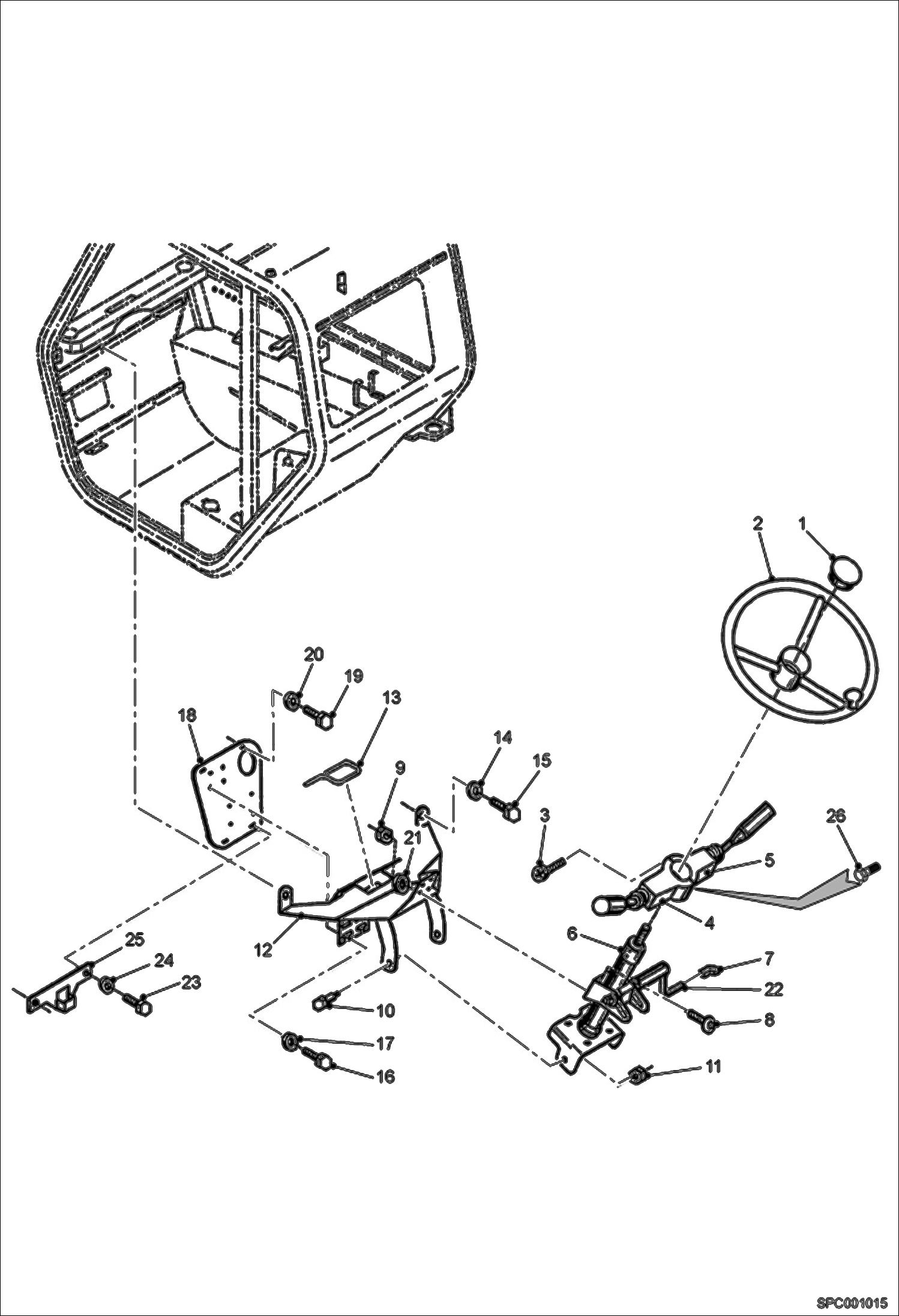

Схема запчастей Bobcat T35100L - STEERING COLUMN INSTALLATION MAIN FRAME

Артикул

Название

Примечание

Количество

1

94018.9

Steering wheel cap

2

6908477

STEERING WHEEL

3

6909993

SCREW TCB M5X40

4

98241.3

Reverser travel direction

5

98242.9

Drive/lighting control lever direction signal

6

6908476

STEERING SHAFT

7

97502.9

Knob, steering column adjust steering column adjustment

8

63359.4

Screw

9

01681.6

Nut Was 51851.4 - B

10

97210.9

Pin

11

01681.6

Nut Was 51851.4 - B

12

6915747

STEERING COLUMN SUPPORT Was 97503.7 - A

13

6909935

SEAL , CRIMPED L 390

14

01697.2

Washer

15

1CM820

BOLT Was 01596.6 - B

16

1CM820

BOLT Was 01596.6 - B

17

01697.2

Washer

18

6909977

BRACKET

19

1CM820

BOLT Was 01596.6 - B

20

01697.2

Washer

21

01697.2

Washer

22

HANDLE NLA Was 97501.1 - A

23

4CM825

BOLT Was 01597.4 - B

24

01697.2

Washer

25

6910649

PEDAL STOP

26

6909993

SCREW TCB M5X40

Выбрано товаров: 26
