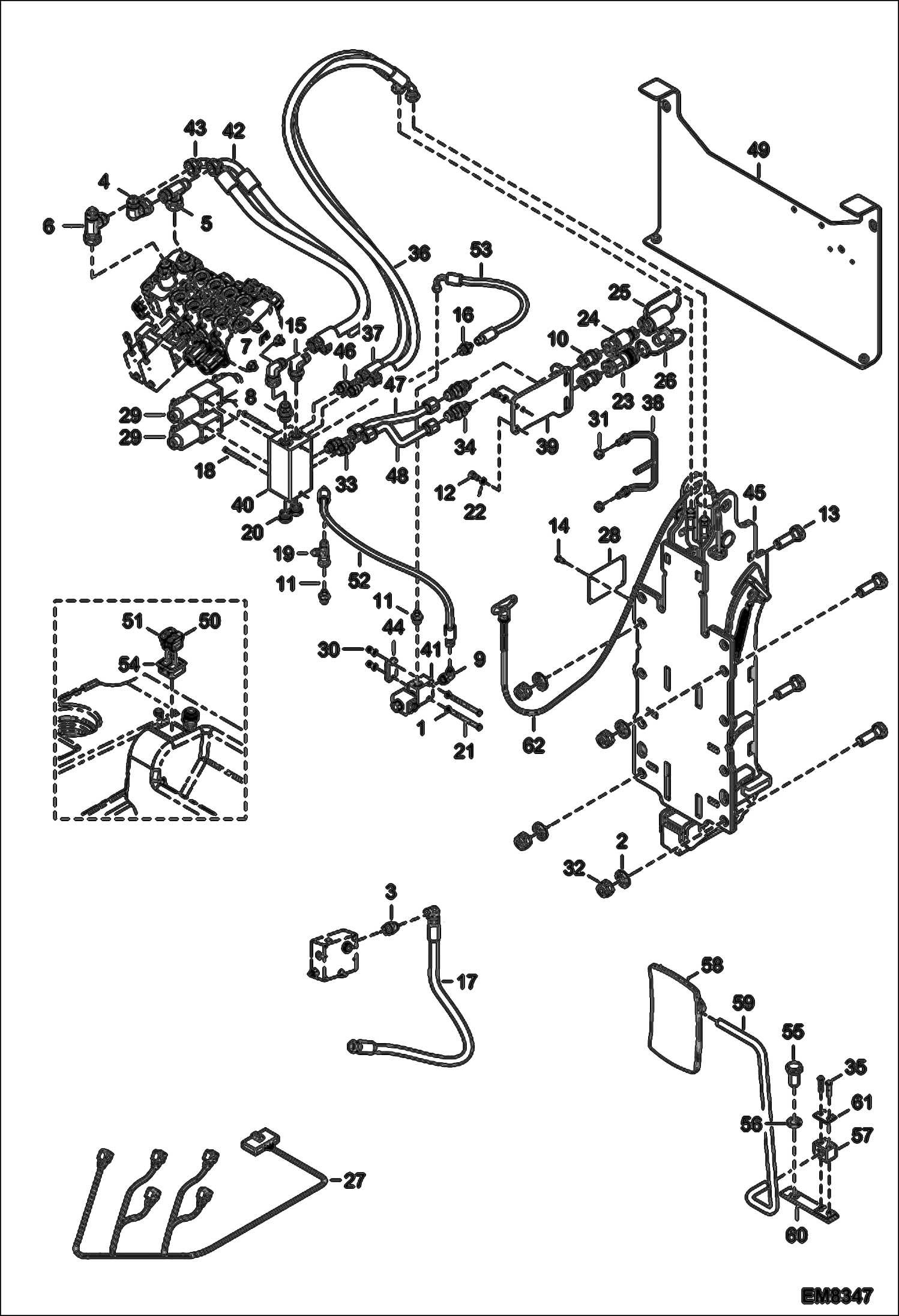

Запчасти Bobcat T35100L REAR HYDRAULIC HOOK & AUXILIARY HYDRAULICS (S/N A8HD15000 & Above, A8GW15000 & Above, A8GT15000 & Above) ACCESSORIES & OPTIONS

1

000350-01U

WASHER

2

000350-08C

WASHER

3

008372-01B

ELBOW PIECE

4

008372-14Q

ELBOW

5

008372-21X

TEE

6

008372-34M

UNION

7

010370-90W

ELBOW PIECE

8

014375-30H

UNION

9

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

10

7225156

FITTING, HYD Was 022375-06W - A

11

022375-28V

UNION

12

6GM816

SCREW Was 29649.1 - A

13

1CM2060

SCREW Was 39584.8 - A

14

43824.2

Rivet

15

65285.9

Elbow

16

65614.0

Union

17

65715.5

Hose

17

74602.4

Hose

18

68566.9

Screw

19

69485.1

T- union

19

69485.1

T- union

20

78743.2

Drain plug

21

80643.0

Screw

22

89519.3

Washer

23

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

24

7225159

COUPLER, HYD Was 95994.0 - A

25

7225160

CAP, COUPLER Was 96513.7 - A

26

7225161

CAP, COUPLER Was 96514.5 - A

27

96589.7

Wire harness

28

PLATE, SERIAL NO. NAP

29

98360.1

Union

30

100345-06W

NUT

31

100345-09A

NUT

32

100345-20M

NUT

33

100375-39T

UNION 7/8 JIC 3/8 BSP

34

100375-52H

UNION

35

100338-23F

SCREW

36

6910391

Adapter

37

6910391

Adapter

38

6910517

PROTECTOR

39

6910523

SUPPORT

40

6911079

HYDRAULIC BLOCK

41

6911845

SOLENOID 2-2

42

6913675

FLEXIBLE

43

6913675

FLEXIBLE

44

6915305

SPACER

45

6917366

HOOK See Illustration REAR HYDRAULIC HOOK/ EM5349

46

6919773

UNION

47

6922003

HYDRAULIC TUBE

48

6922004

HYDRAULIC TUBE

49

6922478

REAR HOOD

50

6927721

SWITCH, HYD HOOK

51

6927725

SWITCH, REAR HYD

52

6912226

FLEXIBLE

53

6916079

HOSE

54

7178511

SOCKET, END

55

01620.4

Screw

56

15323.9

Washer

57

7179623

SLEEVE Was 61358.8 - A

58

63860.1

Mirror

59

79300.0

Pipe

60

84648.5

Plate

61

100228-57K

COVER

62

7009791

CABLE PULL
