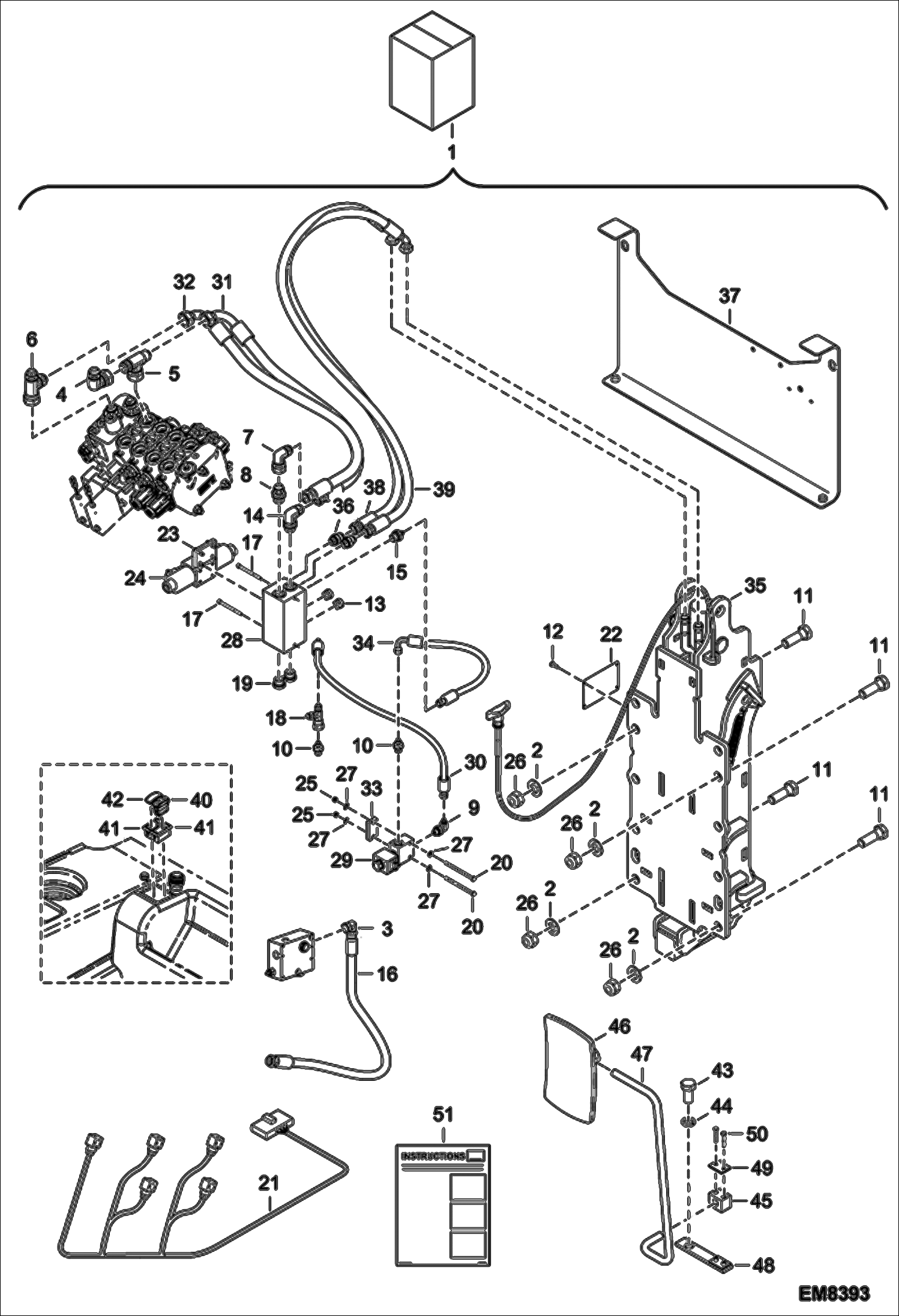

Запчасти Bobcat T35100L REAR HYDRAULIC HOOK KIT (S/N A8HD11001 - 14999, A8GW11001 - 14999, A8GT11001 - 14999) ACCESSORIES & OPTIONS

1

6924954

KIT, REAR HYDRAULIC HOOK W/Ref. 2-51

1

6925394

KIT, REAR HYDRAULIC HOOK W/Ref. 2-51

2

000350-08C

WASHER

3

008372-01B

ELBOW PIECE

4

008372-14Q

ELBOW

5

008372-21X

TEE

6

008372-34M

UNION

7

010370-90W

ELBOW PIECE

8

014375-30H

UNION

9

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

10

022375-28V

UNION

11

1CM2060

SCREW Was 39584.8 - A

12

43824.2

Rivet

13

56029.2

Plug

14

65285.9

Elbow

15

65614.0

Union

16

65715.5

Hose

17

68566.9

Screw

18

69485.1

T- union

19

78743.2

Drain plug

20

80643.0

Screw

21

96589.7

Wire harness

22

PLATE, SERIAL NO. NAP

23

98353.6

Plate

24

98360.1

Union

25

100345-06W

NUT

26

100345-20M

NUT

27

000350-01U

WASHER

28

6911079

HYDRAULIC BLOCK

29

6911845

SOLENOID 2-2

30

6912226

FLEXIBLE

31

6913675

FLEXIBLE

32

6913675

FLEXIBLE

33

6915305

SPACER

34

6916079

HOSE

35

6917366

HOOK See Illustration REAR HYDRAULIC HOOK/ EM5349 Was 82425.0 - A

36

6919773

UNION

37

6922478

REAR HOOD Was 6919717 - A

38

6925927

HOSE

39

6925927

HOSE

40

96598.8

Switch (proportional)

40

6927721

SWITCH, HYD HOOK

41

7178511

SOCKET, END

42

65784.1

Blank Plug

42

7178513

CAP, SOCKET

43

01620.4

Screw Was 96467.6 - A

44

15323.9

Washer

45

7179623

SLEEVE Was 61358.8 - A

46

63860.1

Mirror

47

79300.0

Pipe

48

84648.5

Plate

49

100228-57K

COVER

50

100338-23F

SCREW

51

6986910

INSTRUCTIONS, INSTALLATION
