Запчасти Bobcat T35100L REAR HYDRAULIC HOOK INSTALLATION (S/N A8HD15000 & Above, A8GW15000 & Above, A8GT15000 & Above) ACCESSORIES & OPTIONS

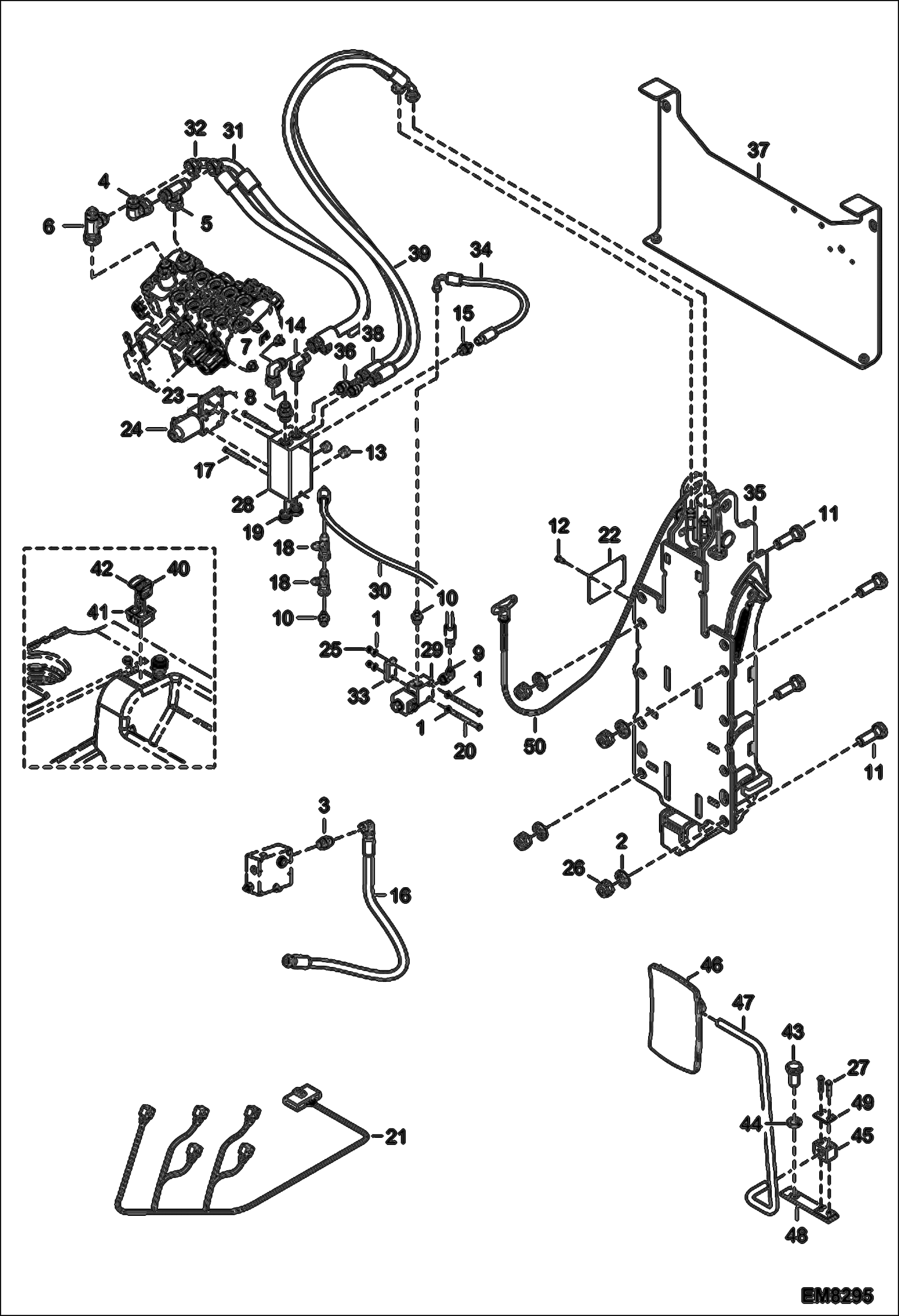

Схема запчастей Bobcat T35100L - REAR HYDRAULIC HOOK INSTALLATION (S/N A8HD15000 & Above, A8GW15000 & Above, A8GT15000 & Above) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

000350-01U

WASHER

2

000350-08C

WASHER

3

008372-01B

ELBOW PIECE

4

008372-14Q

ELBOW

5

008372-21X

TEE

6

008372-34M

UNION

7

010370-90W

ELBOW PIECE

8

014375-30H

UNION

9

7186826

COUPLER, QUICK FEMALE

10

022375-28V

UNION

11

1CM2060

SCREW Was 39584.8 - A

12

43824.2

Rivet

13

56029.2

Plug

14

65285.9

Elbow

15

65614.0

Union

16

65715.5

Hose

17

68566.9

Screw

18

69485.1

T- union

18

69485.1

T- union

19

78743.2

Drain plug

20

80643.0

Screw

21

96589.7

Wire harness

22

PLATE NAP

23

98353.6

Plate

24

98360.1

Union

25

100345-06W

NUT

26

100345-20M

NUT

27

100338-23F

SCREW

28

6911079

HYDRAULIC BLOCK

29

6911845

SOLENOID 2-2

30

6933605

HOSE, HYD

31

6913675

FLEXIBLE

32

6913675

FLEXIBLE

33

6915305

SPACER

34

6933606

HOSE, HYD

35

6917366

HOOK See Illustration REAR HYDRAULIC HOOK/ EM5349

36

6919773

UNION

37

6922478

REAR HOOD

38

6925927

HOSE

39

6925927

HOSE

40

96598.8

Switch (proportional)

41

7178511

SOCKET, END

42

65784.1

Blank Plug

43

01620.4

Screw

44

15323.9

Washer

45

7179623

SLEEVE Was 61358.8 - A

46

63860.1

Mirror

47

79300.0

Pipe

48

84648.5

Plate

49

100228-57K

COVER

50

7009791

CABLE PULL

Выбрано товаров: 51
