Запчасти Bobcat T35100L REAR AUXILIARY HYDRAULICS & TRAILER BRAKE (S/N A8HD15000 & Above, A8GW15000 & Above, A8GT15000 & Above) ACCESSORIES & OPTIONS

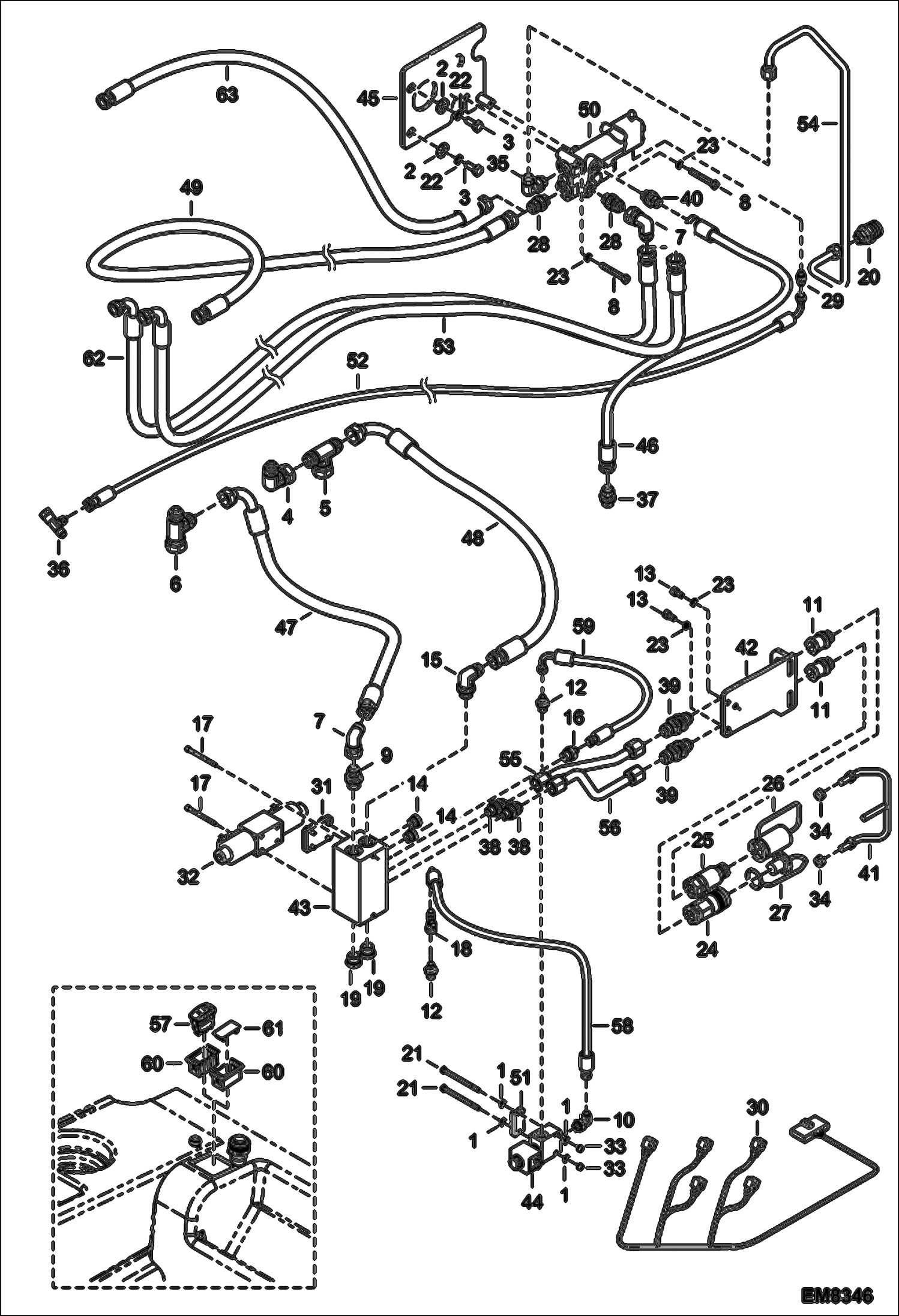

Схема запчастей Bobcat T35100L - REAR AUXILIARY HYDRAULICS & TRAILER BRAKE (S/N A8HD15000 & Above, A8GW15000 & Above, A8GT15000 & Above) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

000350-01U

WASHER

2

000350-21R

WASHER

3

01605.5

Screw

4

008372-14Q

ELBOW

5

008372-21X

TEE

6

008372-34M

UNION

7

010370-90W

ELBOW PIECE

8

10947.0

Screw

9

014375-30H

UNION

10

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

11

7225156

FITTING, HYD Was 022375-06W - A

12

022375-28V

UNION

13

6GM816

SCREW Was 29649.1 - A

14

56029.2

Plug

15

65285.9

Elbow

16

65614.0

Union

17

68566.9

Screw

18

69485.1

T- union

19

78743.2

Drain plug

20

79170.7

Coupling

21

80643.0

Screw

22

7225260

WASHER Was 89516.9 - A

23

89519.3

Washer

24

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

25

7225159

COUPLER, HYD Was 95994.0 - A

26

7225160

CAP, COUPLER Was 96513.7 - A

27

7225161

CAP, COUPLER Was 96514.5 - A

28

96568.1

Union

29

96580.6

Union

30

96589.7

Wire harness

31

98353.6

Plate

32

98360.1

Union

33

100345-06W

NUT

34

100345-09A

NUT

35

7228465

FITTING, HYD ELBOW Was 100370-06P - A

36

100372-06G

UNION

37

100375-38S

UNION

38

100375-39T

UNION 7/8 JIC 3/8 BSP

39

100375-52H

UNION

40

100375-56M

UNION

41

6910517

PROTECTOR

42

6910523

SUPPORT

43

6911079

HYDRAULIC BLOCK

44

6911845

SOLENOID 2-2

45

6913021

Support

46

6913650

Hose

47

6913675

FLEXIBLE

48

6913675

FLEXIBLE

49

6913684

Hose

50

6915262

VALVE

51

6915305

SPACER

52

6916961

HOSE

53

6917394

HOSE

54

6917437

Tube

55

6922003

HYDRAULIC TUBE

56

6922004

HYDRAULIC TUBE

57

6927725

SWITCH, REAR HYD

58

6933605

HOSE, HYD

59

6933606

HOSE, HYD

60

7178511

SOCKET, END

61

7178513

CAP, SOCKET

62

69485.1

T- union

63

6913684

Hose

Выбрано товаров: 63
