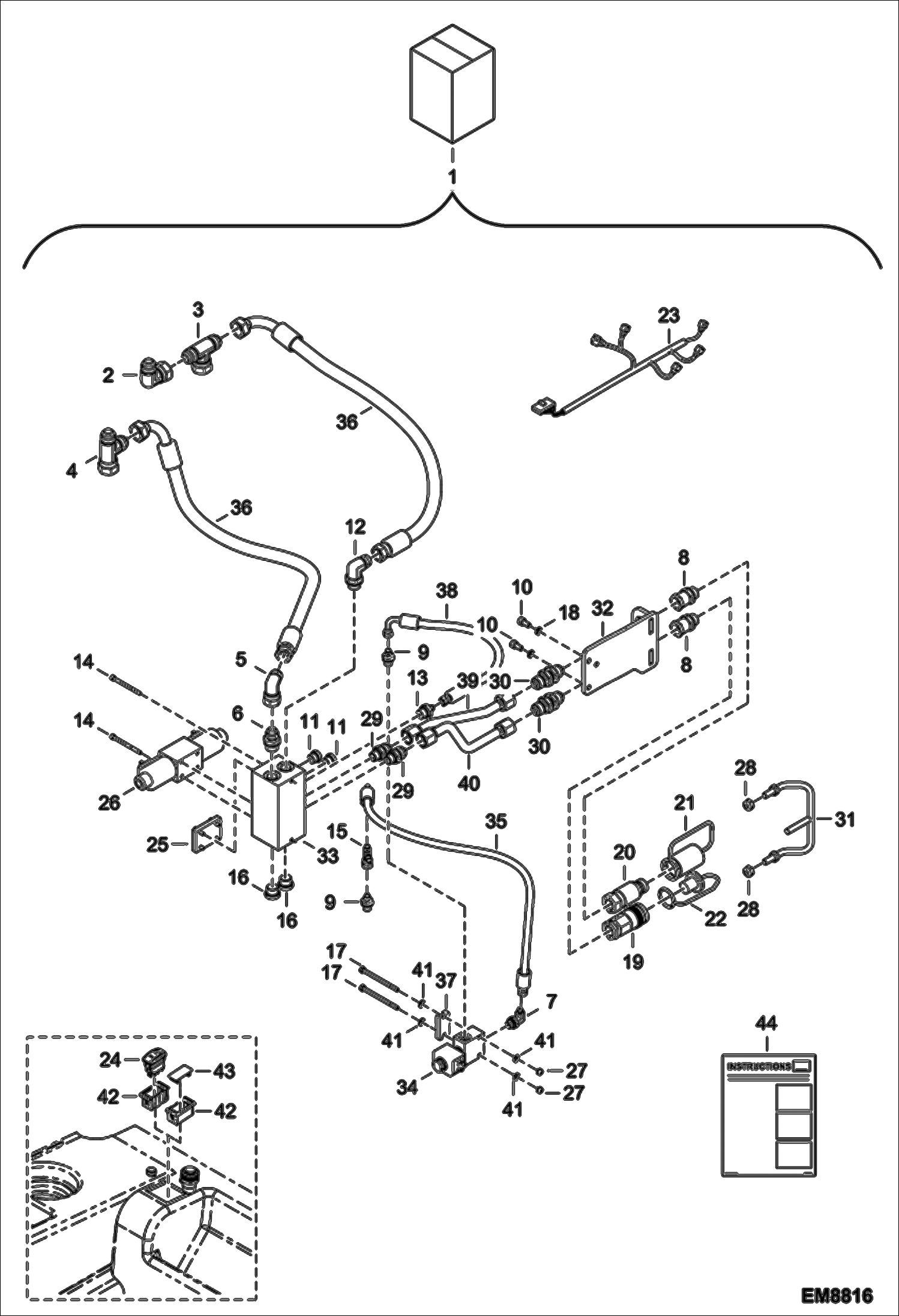

Запчасти Bobcat T35100L REAR AUXILIARY HYDRAULICS KIT (S/N A8HD11001 - 14999, A8GW11001 - 14999, A8GT11001 - 14999) ACCESSORIES & OPTIONS

1

6921508

KIT, REAR HYDRAULIC AUXILIARY W/Ref. 2-44

1

6925377

KIT, REAR HYDRAULIC AUXILIARY W/Ref. 2-44

2

008372-14Q

ELBOW

3

008372-21X

TEE

4

008372-34M

UNION

5

010370-90W

ELBOW PIECE

6

014375-30H

UNION

7

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

8

7225156

FITTING, HYD Was 022375-06W - A

9

022375-28V

UNION

10

6GM816

SCREW Was 29649.1 - A

11

56029.2

Plug

12

65285.9

Elbow

13

65614.0

Union

14

68566.9

Screw

15

69485.1

T- union

16

78743.2

Drain plug

17

80643.0

Screw

18

7225260

WASHER Was 89516.9 - A

19

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

20

7225159

COUPLER, HYD Was 95994.0 - A

21

7225160

CAP, COUPLER Was 96513.7 - A

22

7225161

CAP, COUPLER Was 96514.5 - A

23

96589.7

Wire harness

24

96599.6

Rear Option Switch

24

6927725

SWITCH, REAR HYD

25

98353.6

Plate

26

98360.1

Union

27

100345-06W

NUT

28

100345-09A

NUT

29

100375-39T

UNION 7/8 JIC 3/8 BSP

30

100375-52H

UNION

31

6910517

PROTECTOR

32

6910523

SUPPORT

33

6911079

HYDRAULIC BLOCK

34

6911845

SOLENOID 2-2

35

6912226

FLEXIBLE

36

6913675

FLEXIBLE

37

6915305

SPACER

38

6916079

HOSE

39

6922003

HYDRAULIC TUBE

40

6922004

HYDRAULIC TUBE

41

000350-01U

WASHER

42

7178511

SOCKET, END

43

7178513

CAP, SOCKET

44

6986655

INSTRUCTION, INSTALLATION
