Запчасти Bobcat T35100L ALTERNATOR POWER UNIT

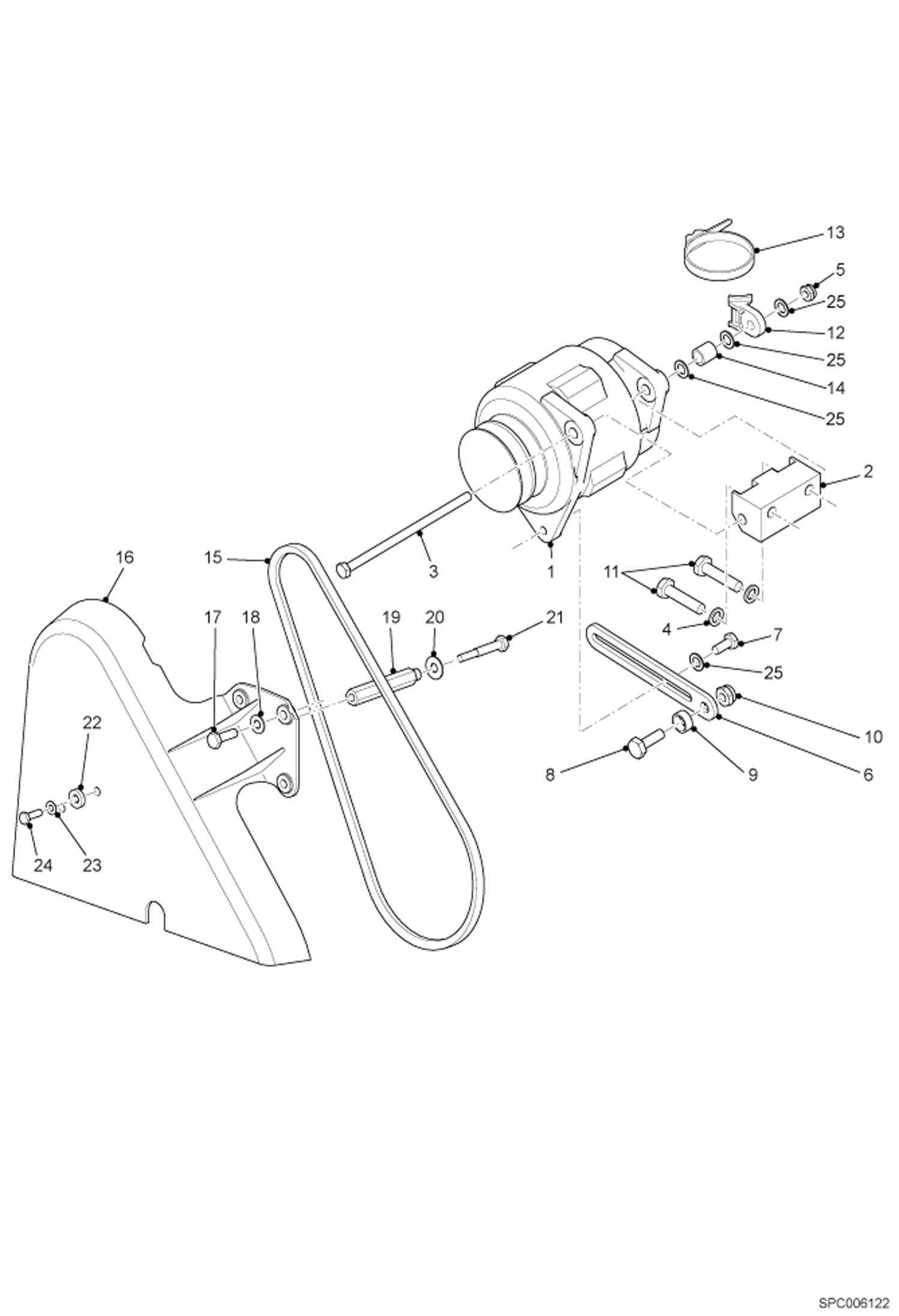

Схема запчастей Bobcat T35100L - ALTERNATOR POWER UNIT

Артикул

Название

Примечание

Количество

1

6911377

ALTERNATOR ESA 85 AMP (EUROPE)

2

6911382

Clamp

3

57506.8

Screw Was 6911871 - B,D

4

01698.0

Washer Was 93433.1 - A

5

01681.6

Nut Was 51851.4 - B

6

6911383

Alternator bracket

7

4CM825

BOLT Was 01597.4 - A

8

01522.2

Screw

9

6911384

Spacer

10

100345-09A

NUT

11

1CM1045

BOLT Was 10944.7 - A

12

6679034

MOUNT

13

6624289

STRAP, TIE

14

6910771

WASHER

15

79527.8

Engine Drive Belt

16

6919502

BELT PROTECTOR

17

01605.5

Screw

18

000350-03W

WASHER

19

6915334

SPACER

20

000350-20Q

WASHER

21

01602.2

Screw

22

97610.0

Washer

23

01697.2

Washer

24

01578.4

Screw

25

000350-02V

WASHER

Выбрано товаров: 25
