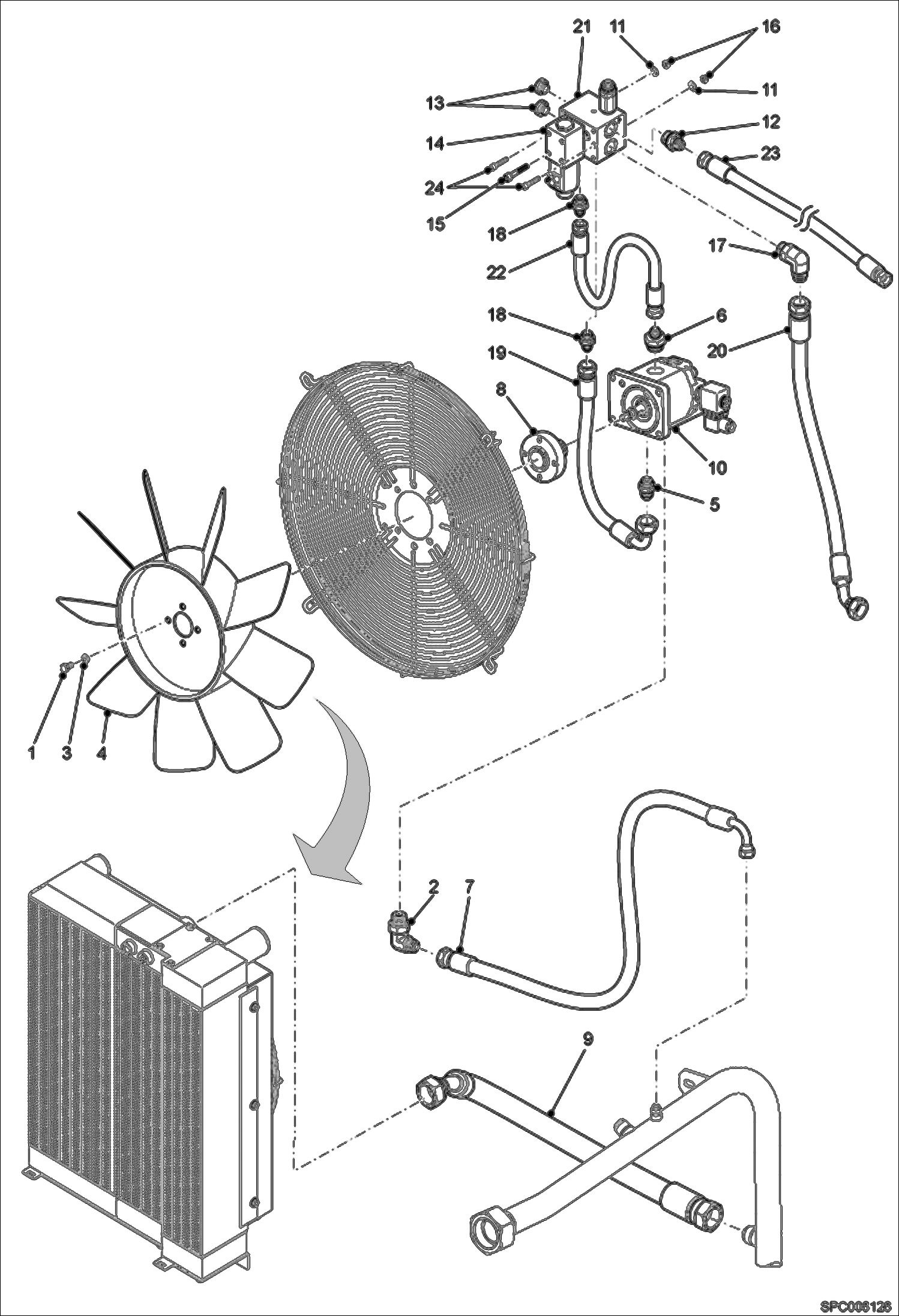

Запчасти Bobcat T35100L COOLING FAN CIRCUIT (W/ Optional Reverse - W/O Frame Levelling) POWER UNIT

1

1CM816

BOLT Was 01595.8 - A

2

010370-93A

ELBOW PIECE

3

89519.3

Washer

4

97915.3

Fan

5

100375-40U

UNION

6

100375-59Q

UNION 3/4 JIC 3/4 BSP

7

6910622

HOSE TJ3/4 9.5 TJ90 9/16 L800

9

6928048

HOSE Was 6913654 - A

9

6927903

HOSE

10

6916978

HYDRAULIC MOTOR See Illustration HYDRAULIC MOTOR/ SPC003181 1 speed

11

01696.4

Washer

12

022375-04U

UNION

13

78743.2

Drain plug

14

98355.1

Electro distributor W/Ref. 15

15

79160.8

Screw

16

100345-05V

NUT

17

100370-05N

ELBOW UNION

18

100375-38S

UNION

19

6911028

HOSE

21

6917718

PRESSURE SWITCH

22

6918314

HOSE

23

65715.5

Hose

24

98897.2

VIS
