Запчасти Bobcat T35100L ENGINE BASKET MAIN FRAME

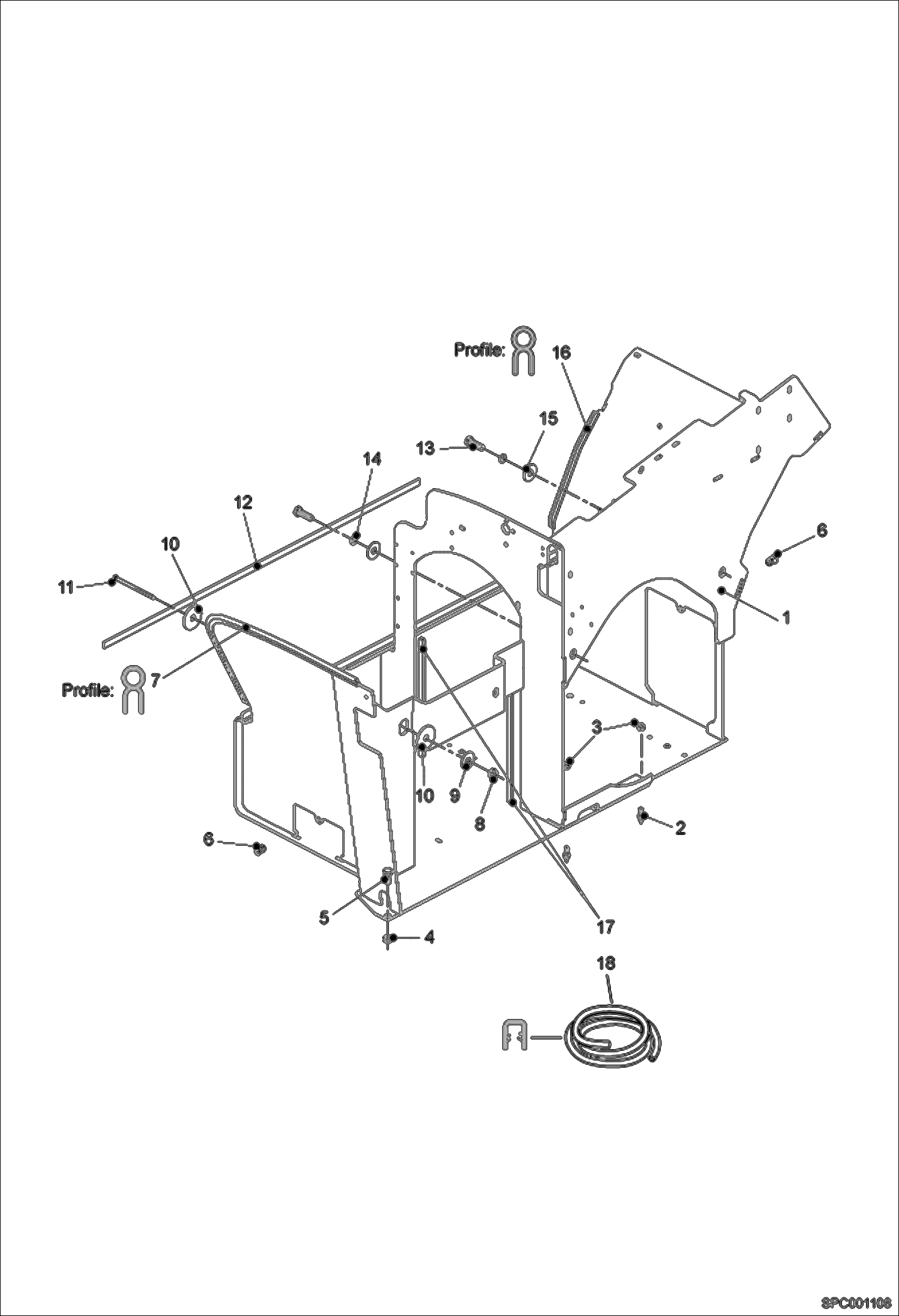

Схема запчастей Bobcat T35100L - ENGINE BASKET MAIN FRAME

Артикул

Название

Примечание

Количество

1

6935125

ENGINE BONNET Was 6916605 - A

2

6908170

DOWEL

3

000345-96E

NUT

4

100345-16H

NUT

5

1CM1630

BOLT Was 10882.9 - A

6

44334.1

Nut

7

85987.6

Edging 1020 mm (40.16'') long - sold per foot

8

100345-16H

NUT

9

17EM160

WASHER Was 88236.5 - A

10

7213175

WASHER Was 100454-05T - A

11

6910150

SCREW HMM16-260/57 CL8.8 ZJ8

12

36912.4

Seal 1270 mm (50'') long - sold per foot

13

84997.6

Screw

14

89518.5

Washer

15

17EM160

WASHER Was 88236.5 - A

16

85987.6

Edging 340 mm (13.39'') long - sold per foot

17

SEAL NAP - 375 mm (14.76'') long - Order Ref. 18 Was 6913644 - A

18

80919.4

Seal bulk - sold per foot

Выбрано товаров: 18
