Запчасти Bobcat T35100L SECURITY OPTION STABILIZERS/TELESCOPING (S/N A8GT11001 - 14999) ELECTRICAL SYSTEM

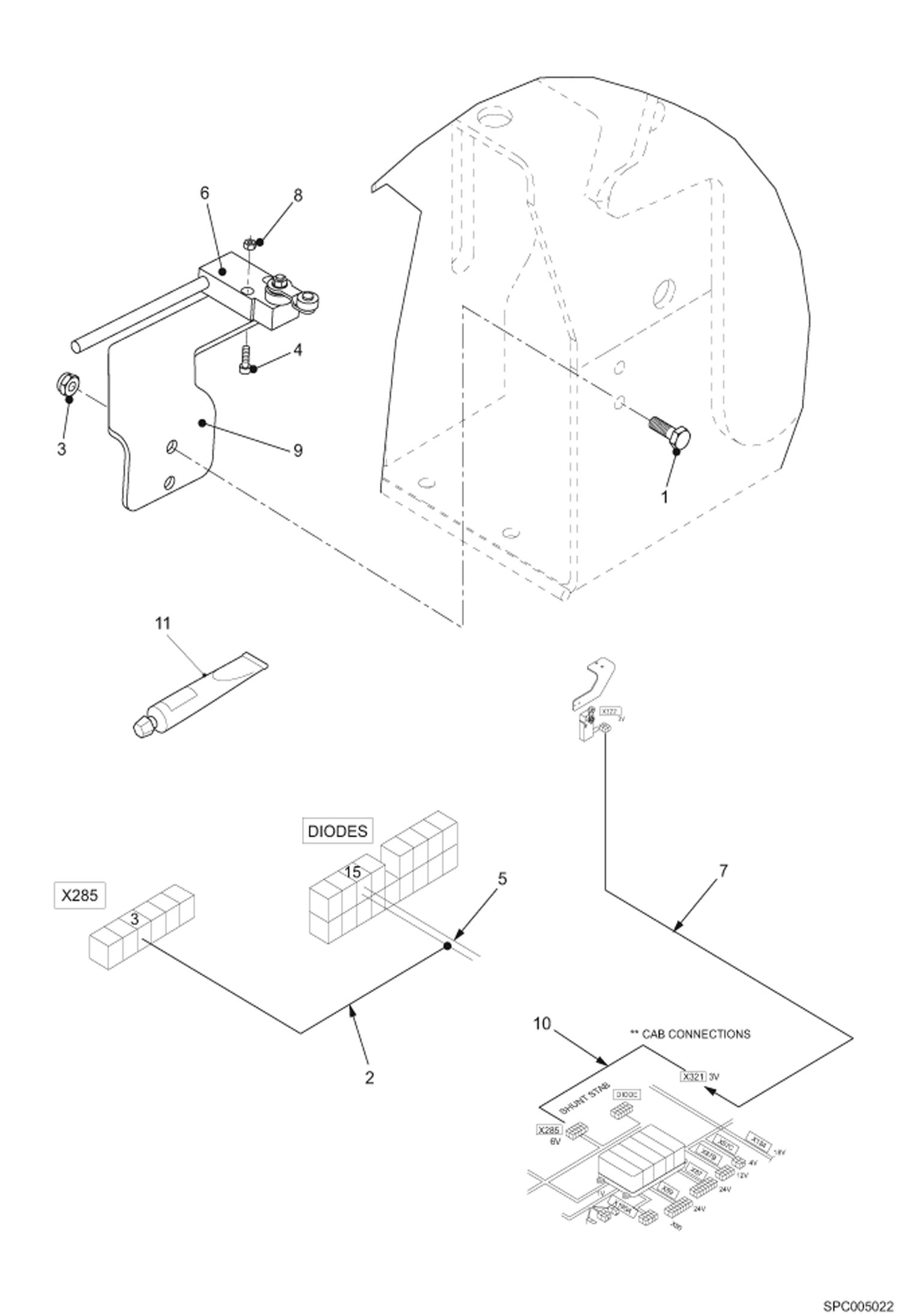

Схема запчастей Bobcat T35100L - SECURITY OPTION STABILIZERS/TELESCOPING (S/N A8GT11001 - 14999) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

4CM825

BOLT Was 01597.4 - B

2

7214998

STRAP, TIE Used to fix the cable between diodes and X285 Was 50917.4 - A

3

01681.6

Nut Was 51851.4 - B

4

53100.4

Screw

5

80235.5

Shrink sleeve

6

92971.1

Switch

7

97634.0

Wire harness

8

100345-04U

NUT

9

6914403

Support

10

6914480

Security shunt stab/telescop

11

6901596

GREASE

Выбрано товаров: 11
