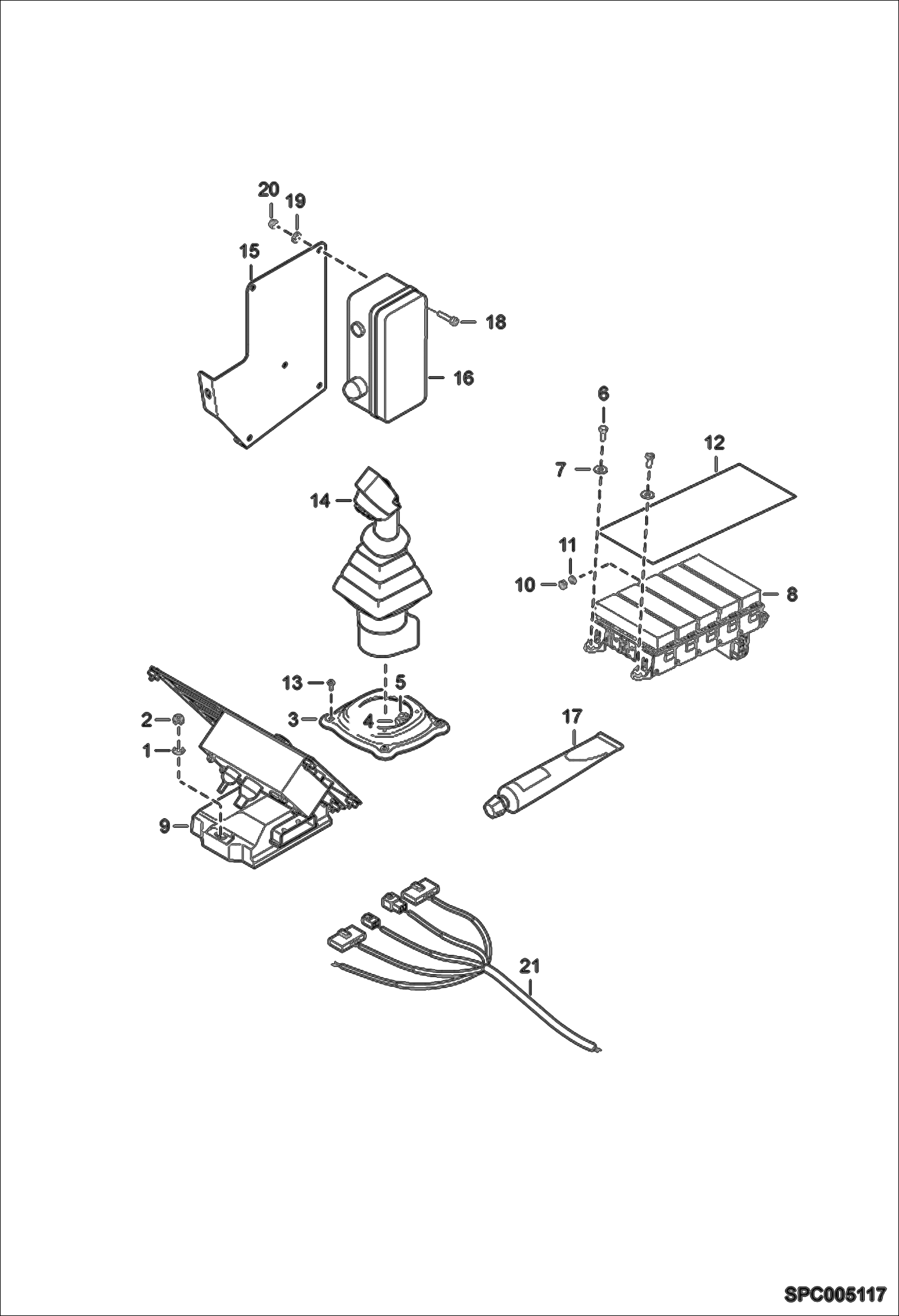

Запчасти Bobcat T35100L TRANSMISSION CONTROL INSTALLATION (S/N A8HD11001 - 12000, A8GW11001 - 12000, A8GT11001 - 12000) ELECTRICAL SYSTEM

1

01697.2

Washer

2

01681.6

Nut Was 51851.4 - B

3

6909205

COVER , DUST

4

01666.7

Nut

5

01717.8

Washer

6

01590.9

Screw

7

29272.2

Washer

8

BOX, FUSE NAP Was 6916967 - B, D

9

6911325

ELECTRIC BOX

10

01666.7

Nut

11

94574.1

Washer

12

6916963

DECAL

13

6910697

SCREW

14

6915268

MANIPULATOR Was 6910314 - A

15

6923638

SUPPORT Was 6909206 - A

16

6922919

BCC 570 also Order Ref. 21 Was 6919190 - A

17

6901596

GREASE

18

61416.4

Screw

19

007346-02F

WASHER

20

100345-04U

NUT

21

6927147

CONNECTOR, INTERFACE
