Запчасти Bobcat T35100L HYDRAULIC CONTROL VALVE (Assy) (Vendor Partnumber 08 404 946) (S/N A8HD12036 & Above, A8GW12071 & Above, A8GT12063 & Above) HYDRAULIC SYSTEM

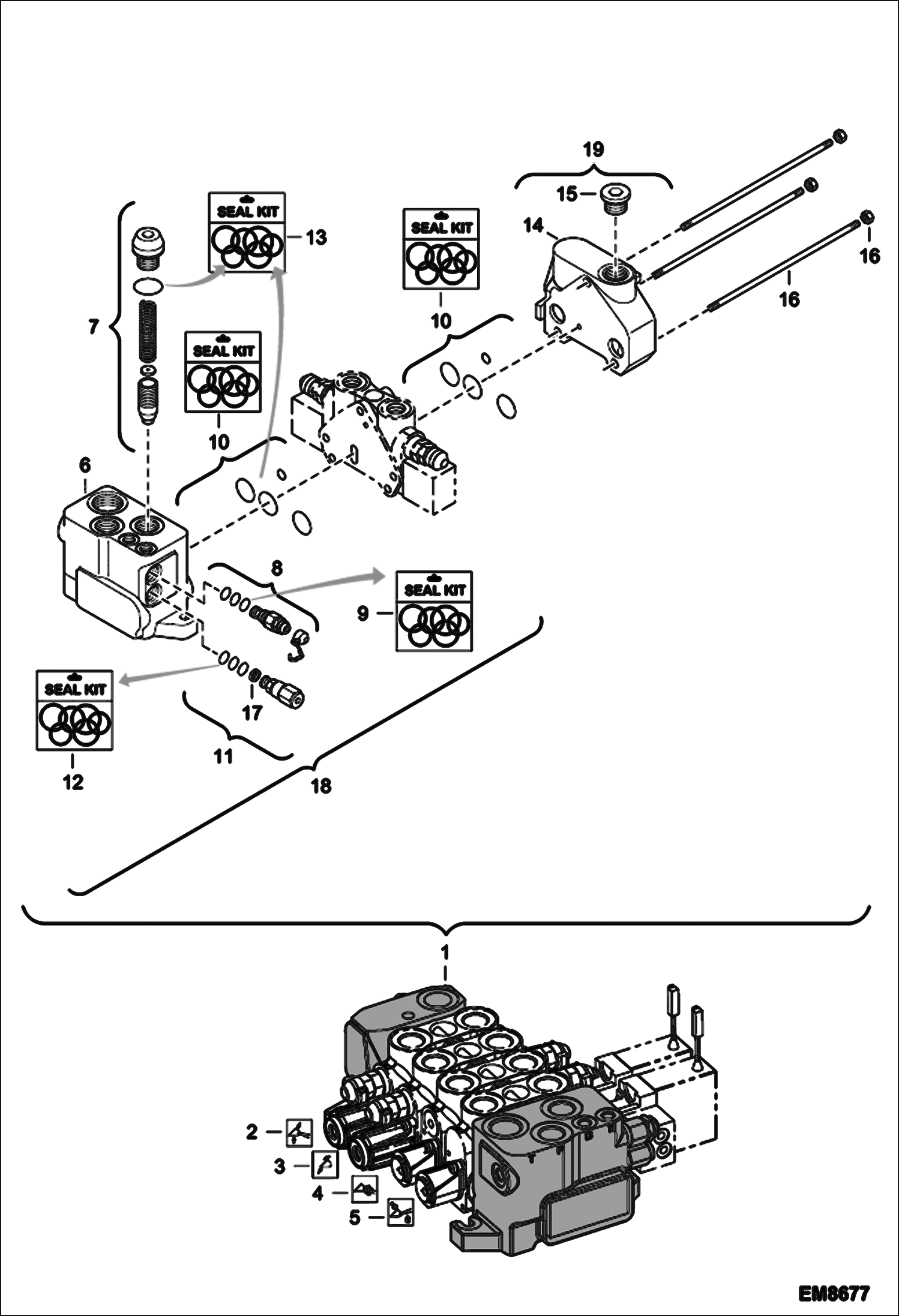

Схема запчастей Bobcat T35100L - HYDRAULIC CONTROL VALVE (Assy) (Vendor Partnumber 08 404 946) (S/N A8HD12036 & Above, A8GW12071 & Above, A8GT12063 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6927618

MAIN VALVE Vendor partnumber 08 404 946 - Ref. 2-19 Was 6924092 - B

2

6910749

LIFTING ELEMENT See Illustration HYDRAULIC CONTROL VALVE/ EM8678

3

6910747

TILTING ELEMENT See Illustration HYDRAULIC CONTROL VALVE/ EM8679

4

7012479

ELEMENT, TELESCOPE See Illustration HYDRAULIC CONTROL VALVE/ EM8681 Vendor partnumber 08 405 024 Was 6910745 - B

5

7012480

ELEMENT, EQUIPMENT See Illustration HYDRAULIC CONTROL VALVE/ EM8683 Vendor partnumber 08 405 023 Was 6910743 - B

6

7012481

INLET ELEMENT

7

6910704

REGULATION KIT load sense relief valve

8

97300.8

Pressure relief valve 265 bar - W/Ref. 9

9

6685257

SEAL KIT

10

97295.0

Set of seals

11

6910705

FLOW REGULATOR W/Ref. 12 & 17

12

6910708

SEAL KIT

13

6910710

SEAL KIT

14

6910706

OUTLET ELEMENT

15

6910709

PLUG

16

6910707

TIE ROD KIT

17

6687064

FILTER Was 97297.6 - A

18

6910742

INLET ELEMENT W/Ref. 6-13 & 17

19

7012482

OUTLET ELEMENT W/Ref. 14-15

Выбрано товаров: 19
