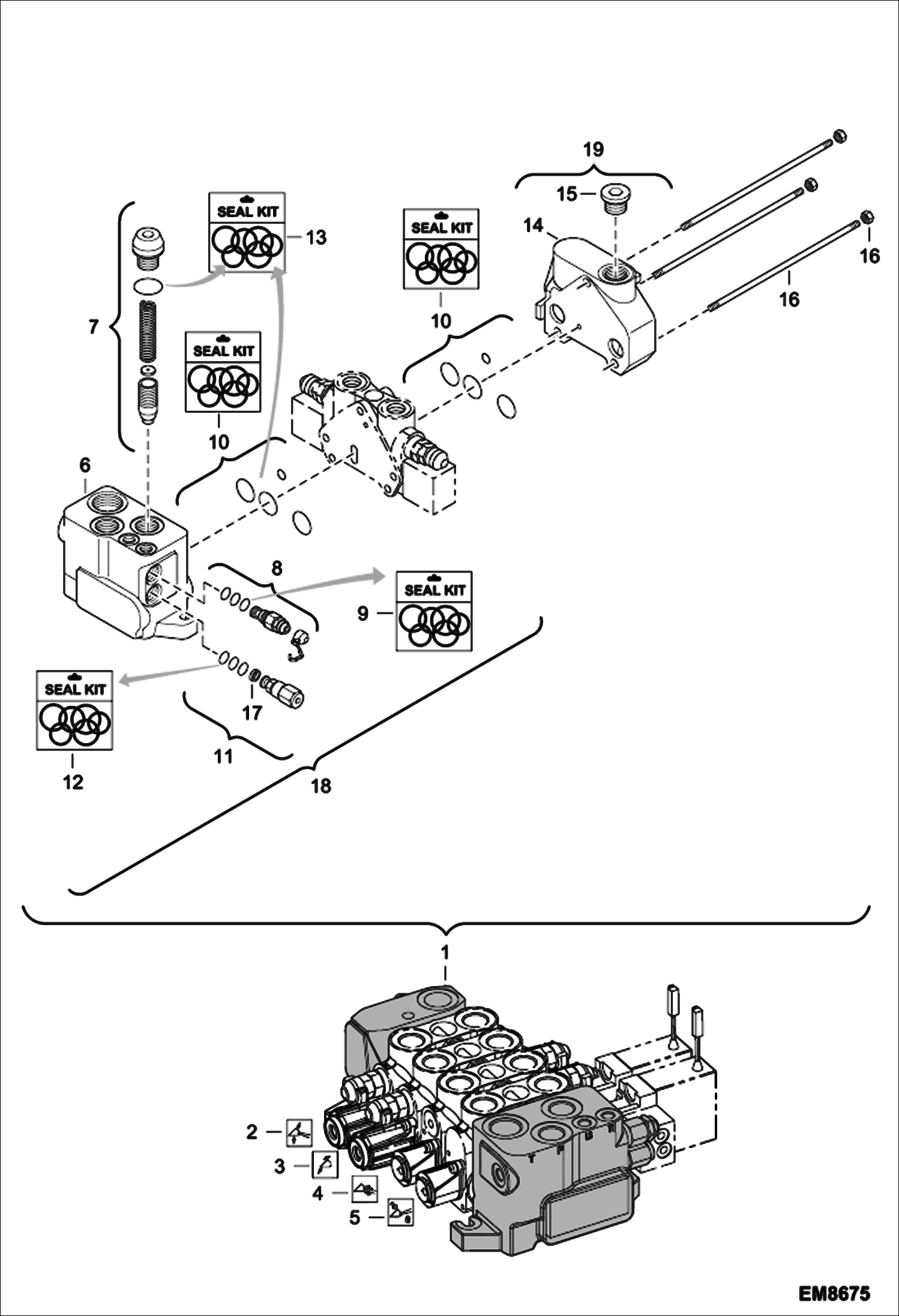

Запчасти Bobcat T35100L HYDRAULIC CONTROL VALVE (Assy) (Vendor Partnumber 08 402 005) (S/N A8HD11001 - 12035, A8GW11001 - 12070, A8GT11001 - 12062) HYDRAULIC SYSTEM

1

CONTROL VALVE ASSY See Illustration HYDRAULIC CONTROL VALVE/ EM8676 NAP -Vendor partnumber 08 402 005 - Ref. 2-19 Was 6912484 - A

2

6910749

LIFTING ELEMENT See Illustration HYDRAULIC CONTROL VALVE/ EM8678

3

6910747

TILTING ELEMENT See Illustration HYDRAULIC CONTROL VALVE/ EM8679 Was 6910748 - A

4

SECTION, TELESCOPE See Illustration HYDRAULIC CONTROL VALVE/ EM8680 NAP - Vendor partnumberVendor partnumber 08 402 020 Was 6910745 - A

4

7012479

ELEMENT, TELESCOPE See Illustration HYDRAULIC CONTROL VALVE/ EM8681 Vendor partnumber 08 405 024

5

SECTION, AUXILIARY HYDRAULICS See Illustration HYDRAULIC CONTROL VALVE/ EM8682 NAP - Vendor partnumberVendor partnumber 08 402 018 Was 6910743 - A

5

7012480

ELEMENT, EQUIPMENT See Illustration HYDRAULIC CONTROL VALVE/ EM8683 Vendor partnumber 08 405 023

6

7012481

INLET ELEMENT Was 6910742 - A

7

6910704

REGULATION KIT load sense relief valve

8

97300.8

Pressure relief valve 265 bar - W/Ref. 9

9

6685257

SEAL KIT Was 6910708 - A

10

97295.0

Set of seals

11

6910705

FLOW REGULATOR W/Ref. 12 & 17

12

6910708

SEAL KIT

13

6910710

SEAL KIT

14

6910706

OUTLET ELEMENT

15

6910709

PLUG

16

6910707

TIE ROD KIT

17

6687064

FILTER Was 97297.6 - A

18

6910742

INLET ELEMENT W/Ref. 6-13 & 17

19

7012482

OUTLET ELEMENT W/Ref. 14-15
