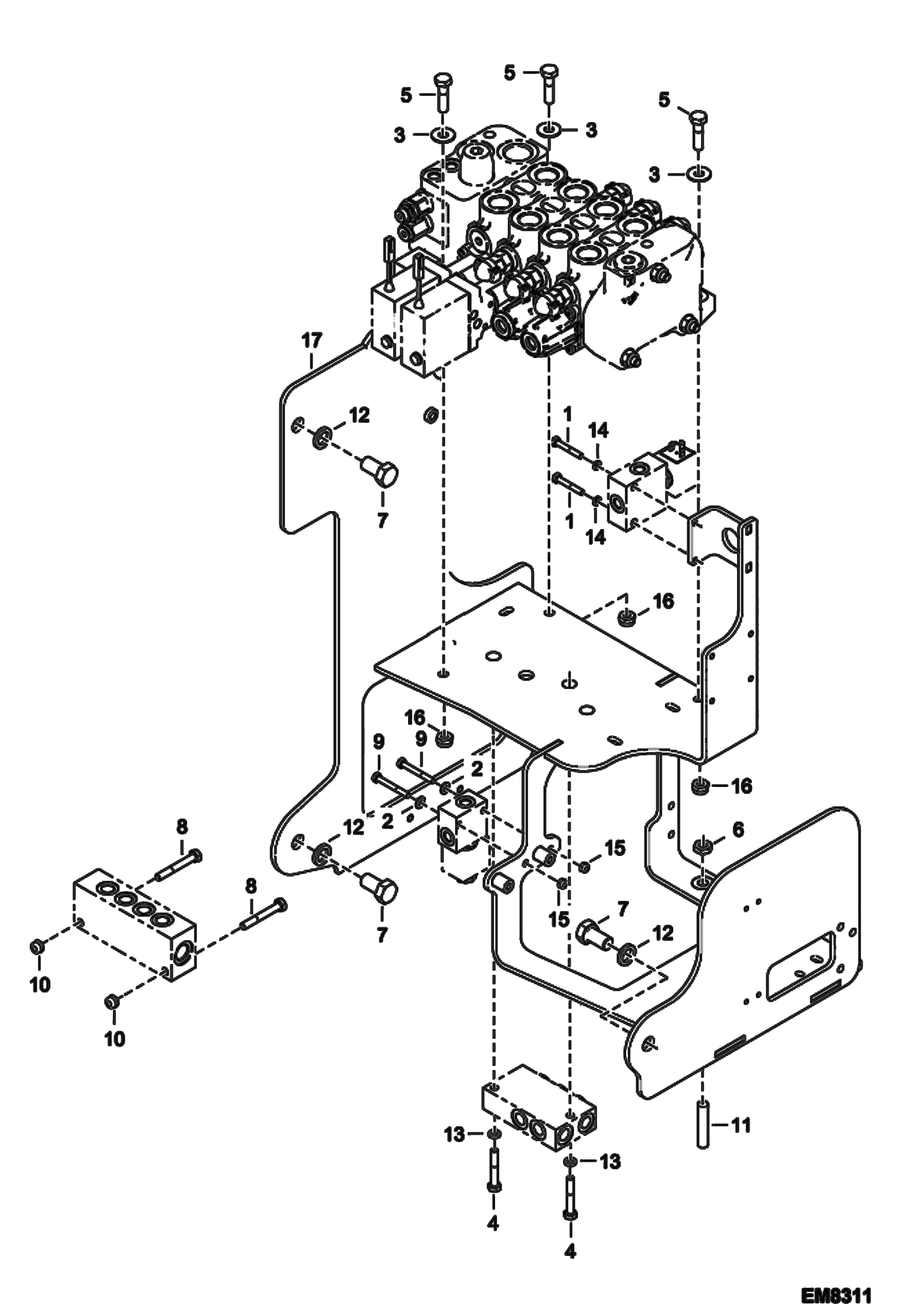

Запчасти Bobcat T35100L HYDRAULIC CONTROL VALVE FIXATION (S/N A8HD15000 & Above, A8GW15000 & Above, A8GT15000 & Above) HYDRAULIC SYSTEM

1

000326-25M

SCREW

2

000350-01U

WASHER

3

000350-21R

WASHER

4

01508.1

Screw

5

1CM1040

BOLT Was 01608.9 - B

6

01683.2

Nut

7

1CM1630

BOLT Was 10882.9 - A

8

10947.0

Screw

9

1CM650

SCREW Was 48829.6 - A

10

01681.6

Nut Was 51851.4 - B

11

88946.9

Screw

12

89518.5

Washer

13

89519.3

Washer

14

94574.1

Washer

15

100345-06W

NUT

16

100345-09A

NUT

17

6933455

BRACKET
