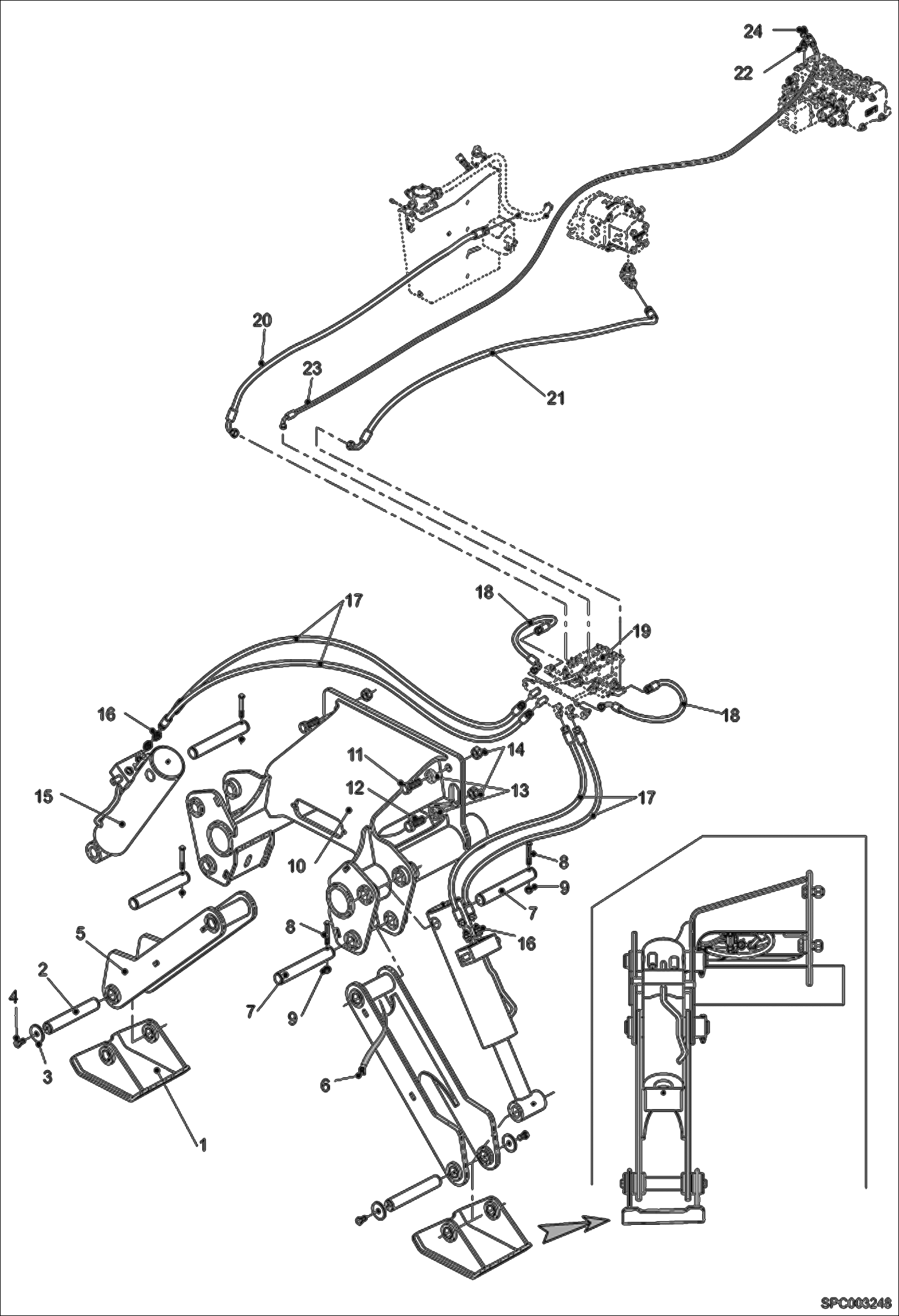

Запчасти Bobcat T35100L STABILIZERS INSTALLATION HYDRAULIC SYSTEM

1

6909143

Shoe

2

7213174

PIN Was 84237.7 - A

3

7213175

WASHER Was 100454-05T - A

4

1CM1630

BOLT Was 10882.9 - A

5

6909142

Arm

6

01782.2

Grease nipple

7

7213172

PIN Was 88597.0 - A

8

1CM1090

BOLT Was 12597.1 - A

9

100345-09A

NUT

10

6909127

Front support

11

6909675

Screw

12

6909675

Screw

13

6909128

Washer

14

001345-66S

Nut

15

6914550

RAM See Illustration STABILIZER CYLINDER/ SPC003027

16

022375-04U

UNION

17

6934802

HOSE Was 66748.5 - B

18

74466.4

Hose

19

6911079

HYDRAULIC BLOCK

20

6913651

HOSE Was 6910781

21

6911054

HOSE

22

022375-28V

UNION

23

6910786

HOSE

24

72294.2

Elbow union
