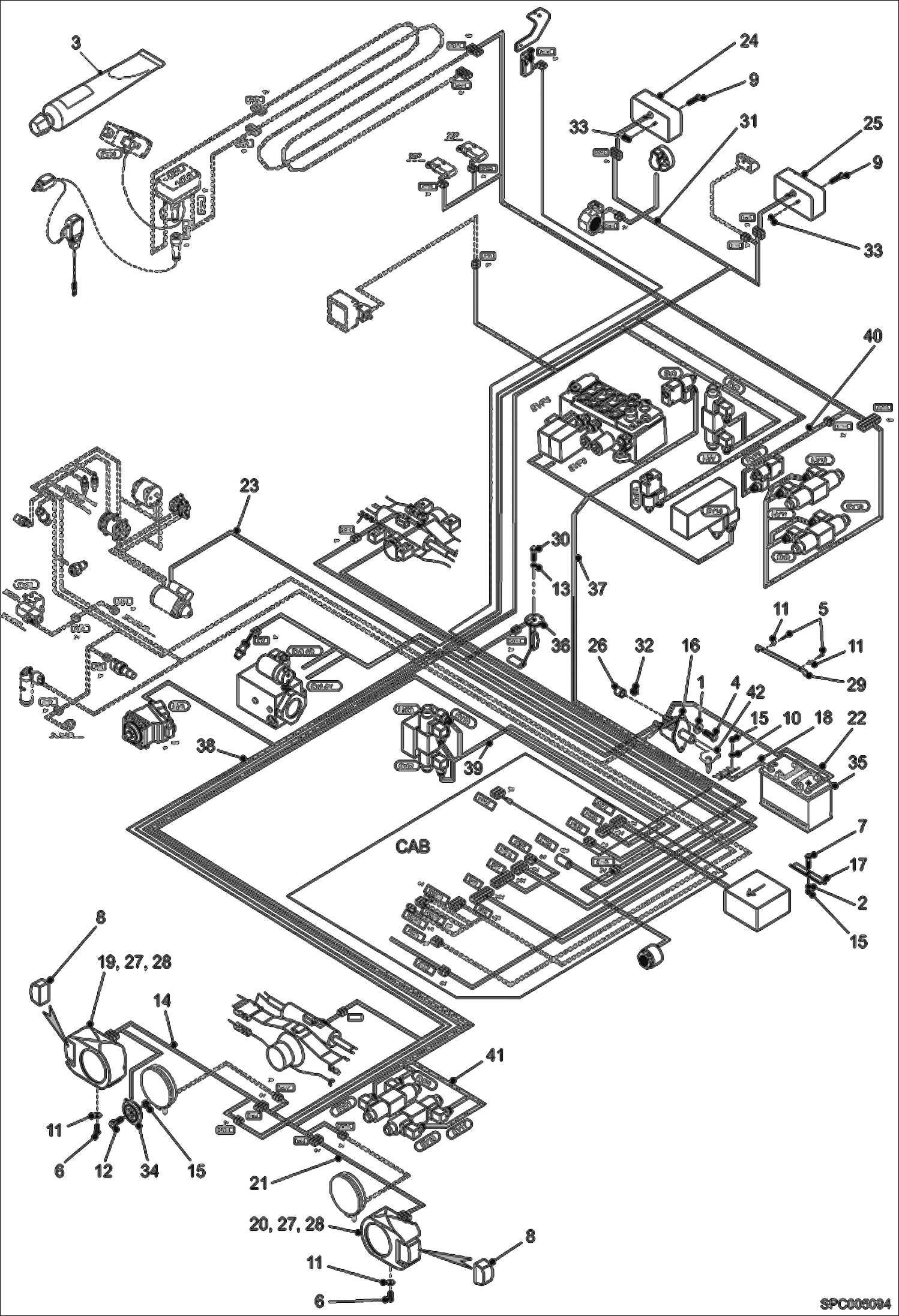

Запчасти Bobcat T35100L ELECTRICAL CIRCUIT CHASSIS ELECTRICAL SYSTEM

1

000350-01U

WASHER

2

000350-02V

WASHER

3

6901596

GREASE

4

01591.7

Screw

5

1CM816

BOLT Was 01595.8 - A

6

1CM820

BOLT Was 01596.6 - B

7

01598.2

Screw

8

27089.2

Bulb 21W

9

100329-01C

SCREW

10

01697.2

Washer

11

01718.6

Washer

12

10947.0

Screw

13

13415.5

Washer

14

6917889

HARNESS

15

01681.6

Nut Was 51851.4 - B

16

65764.3

Circuit Breaker W/Ref. 42

17

77136.0

Bracket

18

78869.5

Negative Battery Cable negative

19

79533.6

Front Light Assembly, RH RH

20

79534.4

Front Light Assembly, LH LH

21

79539.3

Front Light Wire Harness, LH LH

22

79861.1

Positive Battery Cable positive

23

79862.9

Starter Wiring Harness

24

7225546

LIGHT, REAR RH Was 82265.0 - A

24

97260.4

Glass

24

27089.2

Bulb 21W

24

6909955

BULB 21/5W

25

7225545

LIGHT, REAR LH Was 82266.8 - A

25

97261.2

Glass

25

27089.2

Bulb 21W

25

6909955

BULB 21/5W

26

85837.3

Nut Cover

27

6666570

BULB 40W Was 000405-62P - A

28

27362.3

Bulb 4W

29

96421.3

Plate

30

6918271

SCREW

31

98087.0

Wire harness

32

100345-06W

NUT

33

7225547

WASHER Was 6921479 - A

34

100417-11D

HORN

35

7223985

BATTERY Was 6914907 - A

36

6933959

FUEL GAUGE Was 6918308 - C

37

6911357

HARNESS , VALVE

38

6911726

HARNESS , MAIN

39

6910891

WIRE HARNESS

40

6913674

HARNESS

41

6910892

Wire harness

42

66181.9

CIRCUIT BREAKER KEY
