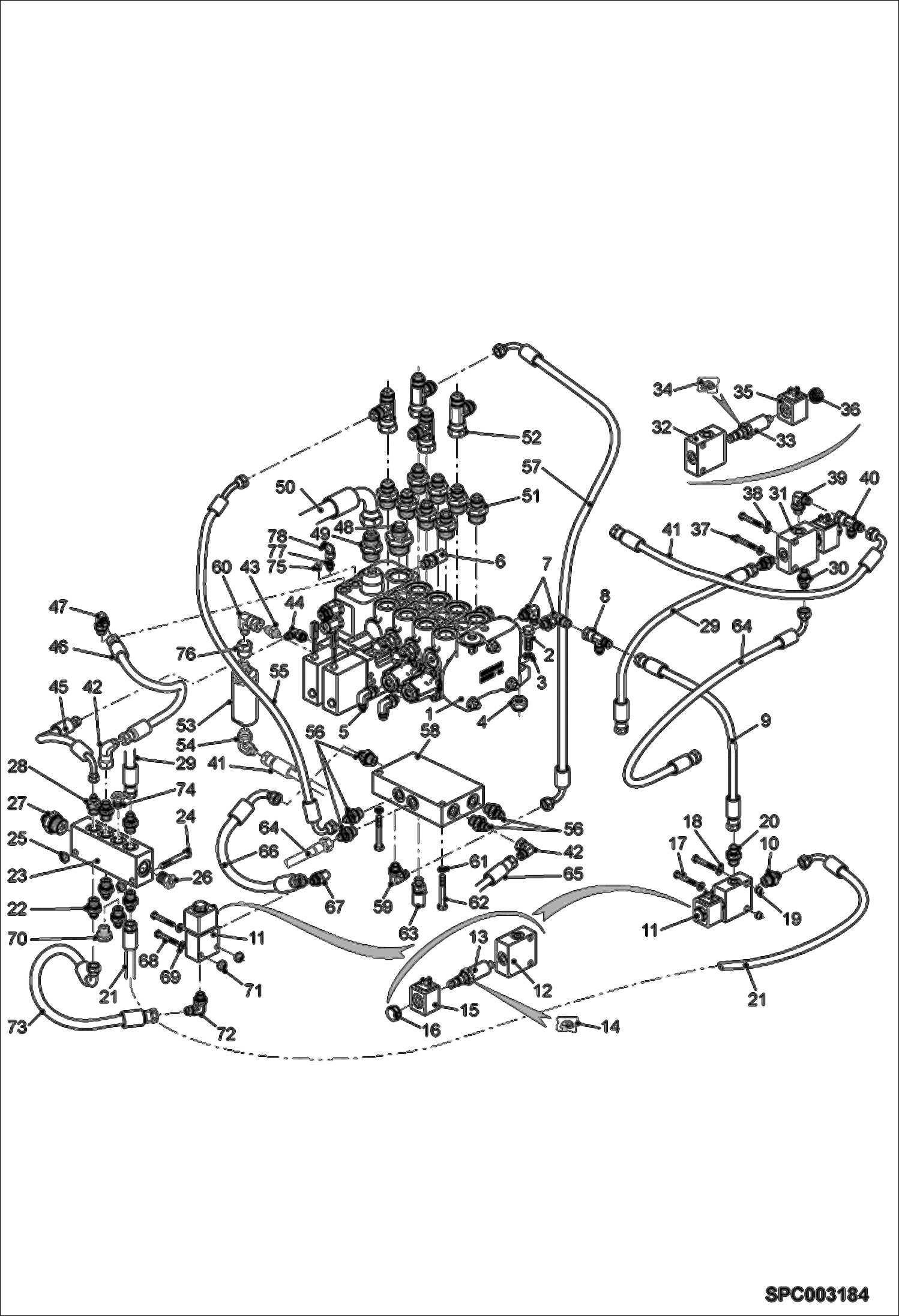

Запчасти Bobcat T35100 HYDRAULIC CONTROL VALVE INSTALLATION (S/N A8HD11001 - 14999, A8GW11001 - 14999, A8GT11001 - 14999) HYDRAULIC SYSTEM

1

CONTROL VALVE ASSY See Illustration HYDRAULIC CONTROL VALVE/ EM8675 NAP Was 6912484 - A

2

1CM1040

BOLT Was 01608.9 - B

3

000350-21R

WASHER

4

100345-09A

NUT

5

100370-18C

ELBOW PIECE

6

54367.8

PORT, PRESSURE TEST

7

100370-18C

ELBOW PIECE

8

100372-06G

UNION

9

85283.0

Hose

10

022375-31Z

UNION

11

6911845

SOLENOID 2-2 W/Ref. 12-16

12

BLOCK NLA - Order Ref. 11

13

6912531

VALVE

14

6912547

SET OF SEALS

15

6912528

COIL

16

6912529

NUT

17

1CM650

SCREW Was 48829.6 - A

18

000350-01U

WASHER

19

100345-06W

NUT

20

022375-31Z

UNION

21

6911143

HOSE

22

77013.1

Adapter

22

77013.1

Adapter

23

6910822

MANIFOLD , RETURN

24

10947.0

Screw

25

01681.6

Nut Was 51851.4 - B

26

69187.3

Plug

27

100375-59Q

UNION 3/4 JIC 3/4 BSP Was 88946.9 - D

28

65614.0

Union

29

6911817

HOSE, HYD

30

022375-31Z

UNION

31

6910208

VALVE 3/2 CE12V W/Ref. 32-36

32

BLOCK NLA - Order Ref. 31

33

6912527

VALVE

34

KIT, SEALS NLA - Order Ref. 31

35

6912528

COIL

36

6912529

NUT

37

000326-25M

SCREW

38

94574.1

Washer

39

100370-18C

ELBOW PIECE

40

100372-06G

UNION

41

6913655

HOSE

42

100370-29P

ELBOW PIECE

43

82181.9

Union

44

85955.3

Elbow

45

6913658

HOSE

46

6911817

HOSE, HYD

47

100370-18C

ELBOW PIECE

48

68609.7

Union

49

100375-40U

UNION

50

6910390

HOSE

51

014375-02C

UNION 7/8 JIC 3/4 BSPP

52

008372-28F

UNION

53

6919913

OIL FILTER

54

100370-18C

ELBOW PIECE

55

6918017

HOSE

56

77013.1

Adapter

57

6918017

HOSE Was 6912467 - A

58

6917692

HYDRAULIC BLOK

59

6918652

ELBOW UNION

60

100370-29P

ELBOW PIECE

61

89519.3

Washer

62

01508.1

Screw

63

54367.8

PORT, PRESSURE TEST

64

6913655

HOSE

65

6913656

HOSE

66

6914033

HOSE

67

100370-18C

ELBOW PIECE

68

1CM650

SCREW Was 48829.6 - A

69

000350-01U

WASHER

70

56029.2

Plug

71

100345-06W

NUT

72

100370-18C

ELBOW PIECE

73

85283.0

Hose

74

69187.3

Plug

75

56028.4

Plug

76

022375-30X

UNION

77

022375-28V

UNION

78

72294.2

Elbow union
