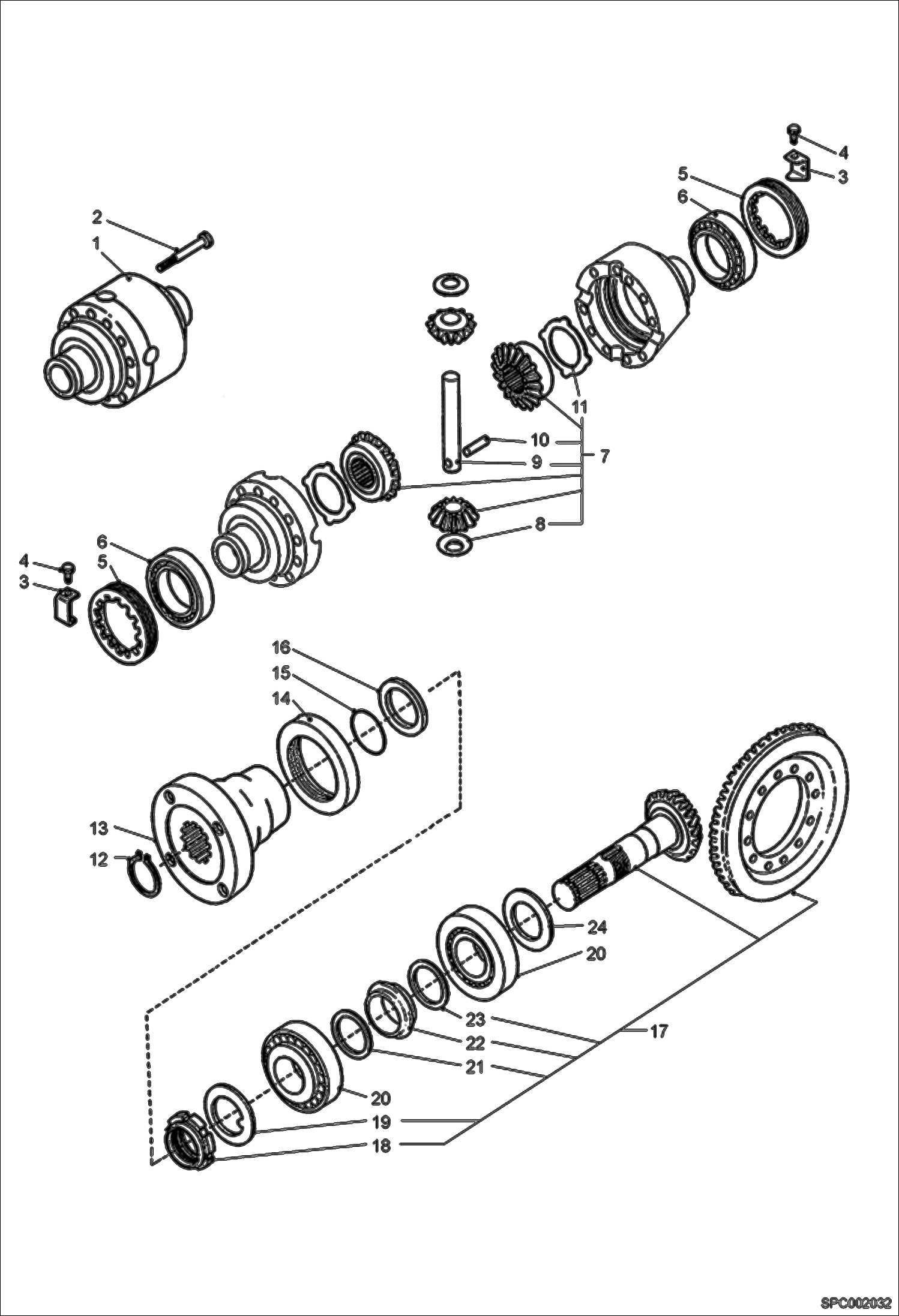

Запчасти Bobcat T2566 DIFFERENTIAL - REAR AXLE DRIVE SYSTEM

1

100485-58V

HOUSING

2

100338-39W

SCREW

3

100261-86D

PLATE

4

66048.0

Screw

5

100345-40J

COLLAR

6

00909.2

Bearing

7

89960.1

Differential Kit

8

100485-56T

WASHER

9

89961.7

Pin

10

89962.5

Pin

11

75789.8

Washer

12

75805.2

Clip

13

75806.0

Bracket

14

75804.5

Seal

15

75803.7

O-ring

16

75802.9

Washer

17

75791.4

Ring Gear

18

100345-37F

NUT

19

100348-06X

WASHER

20

07187.8

Bearing

21

64851.9

Washer

22

101288-39H

SPACER

23

64851.9

Washer

24

75779.9

Shim 2.50mm 2,50 mm

24

75780.7

Shim 2.60mm 2,60 mm

24

75781.5

Shim 2.70mm 2,70 mm

24

75782.3

Shim 2.80mm 2,80 mm

24

75783.1

Shim 2.90mm 2,90 mm

24

75784.9

Shim 3.00mm 3,00 mm

24

75785.6

Shim 3.10mm 3,10 mm

24

75786.4

Shim 3.20mm 3,20 mm

24

75787.2

Shim 3.30mm 3,30 mm

24

75788.0

Shim 3.40mm 3,40 mm
