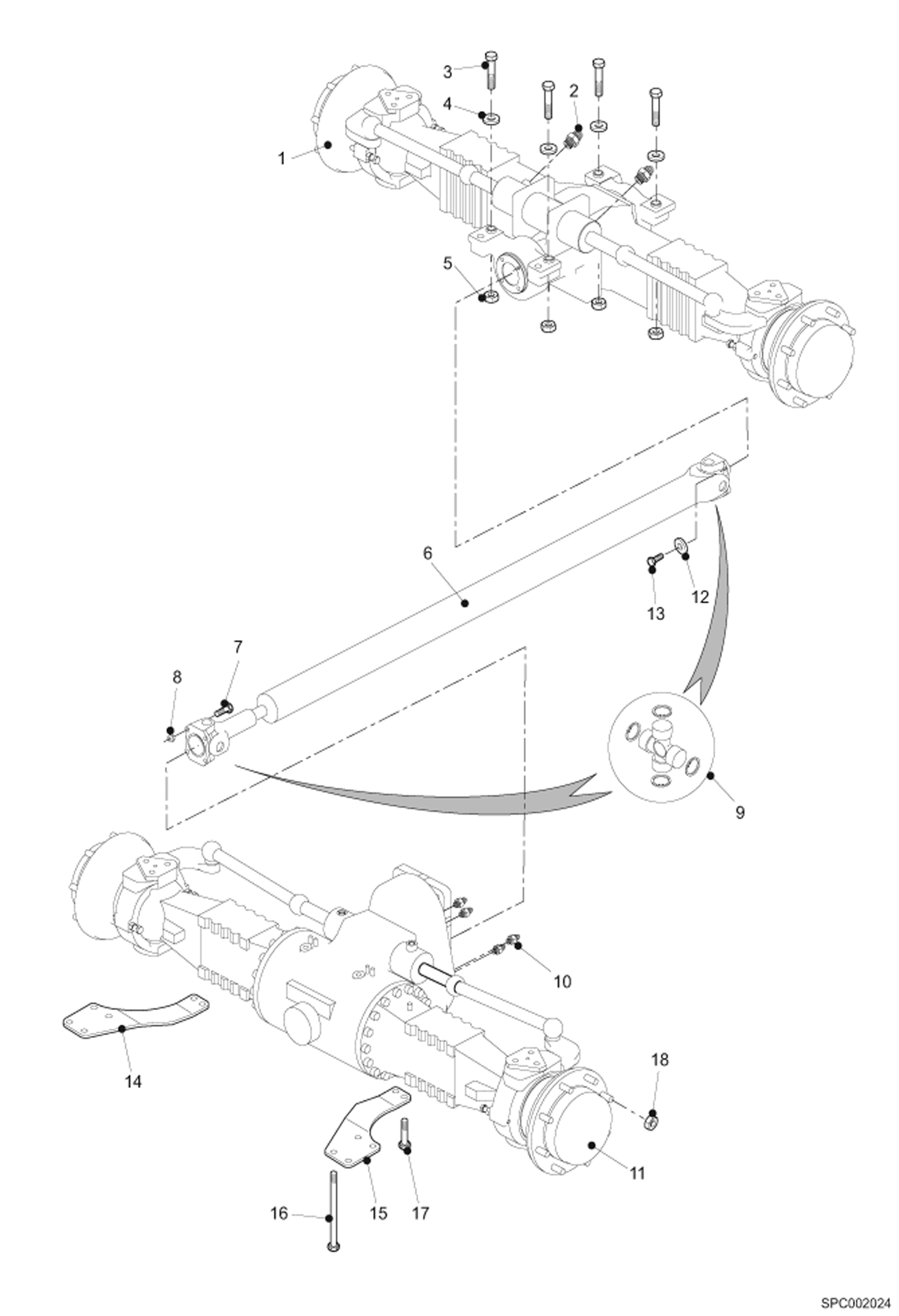

Запчасти Bobcat T2566 AXLE INSTALLATION DRIVE SYSTEM

1

89272.9

Rear Axle

2

89503.7

Adapter

3

57734.6

Screw Torque 41Nm

4

15323.9

Washer Was 33107.4 - B

5

100345-20M

NUT

6

80742.0

U. Joint

7

100338-15V

SCREW Torque 12Nm

8

100345-11C

NUT

9

75658.5

U-joint

10

100375-71D

UNION

11

AXLE, FRONT NAP Was 89271.1 - A

11

6913222

AXLE, FRONT ASSY

12

89517.7

Washer

13

66425.0

Screw Torque 12Nm

14

82275.9

Plate

15

82276.7

Plate

16

1CM20220

SCREW Torque 41Nm Was 25237.9 - A

17

44001.6

Screw

18

100345-41K

NUT
