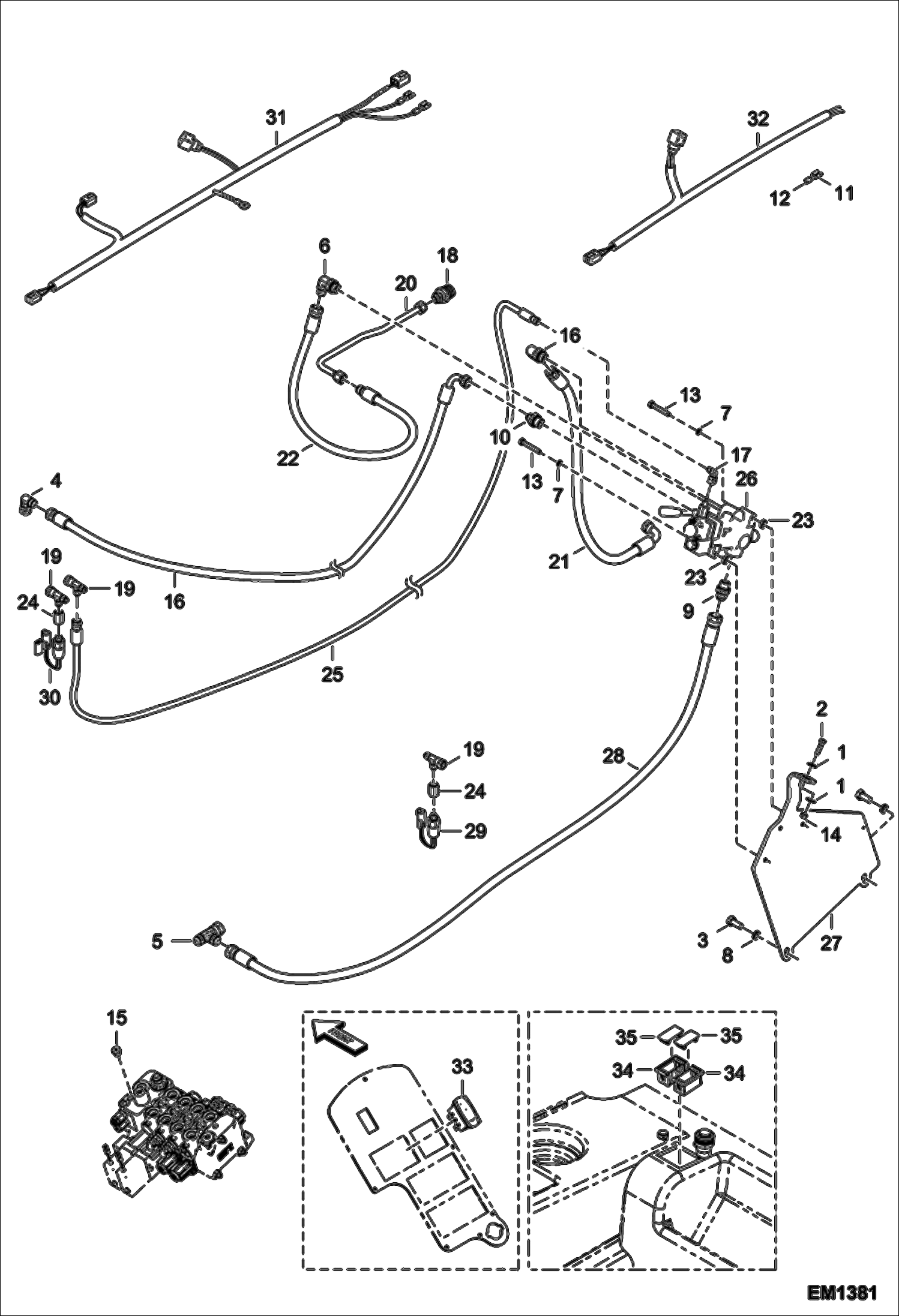

Запчасти Bobcat T2566 TRAILER BRAKE (Italy Version) (S/N A8FR11001 - 13003, A8G311001 - 13000) ACCESSORIES & OPTIONS

1

000350-20Q

WASHER

2

01598.2

Screw

3

01612.1

Screw

4

008372-01B

ELBOW PIECE

5

008372-28F

UNION

6

010370-93A

ELBOW PIECE

7

11463.7

Washer

8

11689.7

Washer

9

014375-30H

UNION

10

022375-04U

UNION

11

26261.8

Clip

12

26263.4

Sleeve Was 26267.5 - A

13

34174.6

SCREW

14

01681.6

Nut Was 51851.4 - B

15

56028.4

Plug

16

72281.9

Hose

17

72294.2

Elbow union

18

79170.7

Coupling

19

100372-06G

UNION

20

6908332

Pipe

21

6910391

Adapter

22

6911151

Hose

23

6911384

Spacer

24

6916745

UNION

25

6916966

Hose

26

6922655

VALVE Was 6622655 - D

27

6922991

SUPPORT Was 6916562 - A

28

6923022

HOSE

29

6923136

PRESSURE SWITCH 232 PSI (16 bar)

30

6923401

PRESSURE SWITCH 1450 PSI (100 bar)

31

6923530

HARNESS, WIRE

32

6923577

HARNESS, WIRE

33

6925569

INDICATOR, RED

33

6932019

INDICATOR, TRAILER BRAKE

34

7178511

SOCKET, END

35

7178513

CAP, SOCKET
