Запчасти Bobcat T2566 SERVICE BRAKE HYDRAULIC INSTALLATION (W/Accumulator) ACCESSORIES & OPTIONS

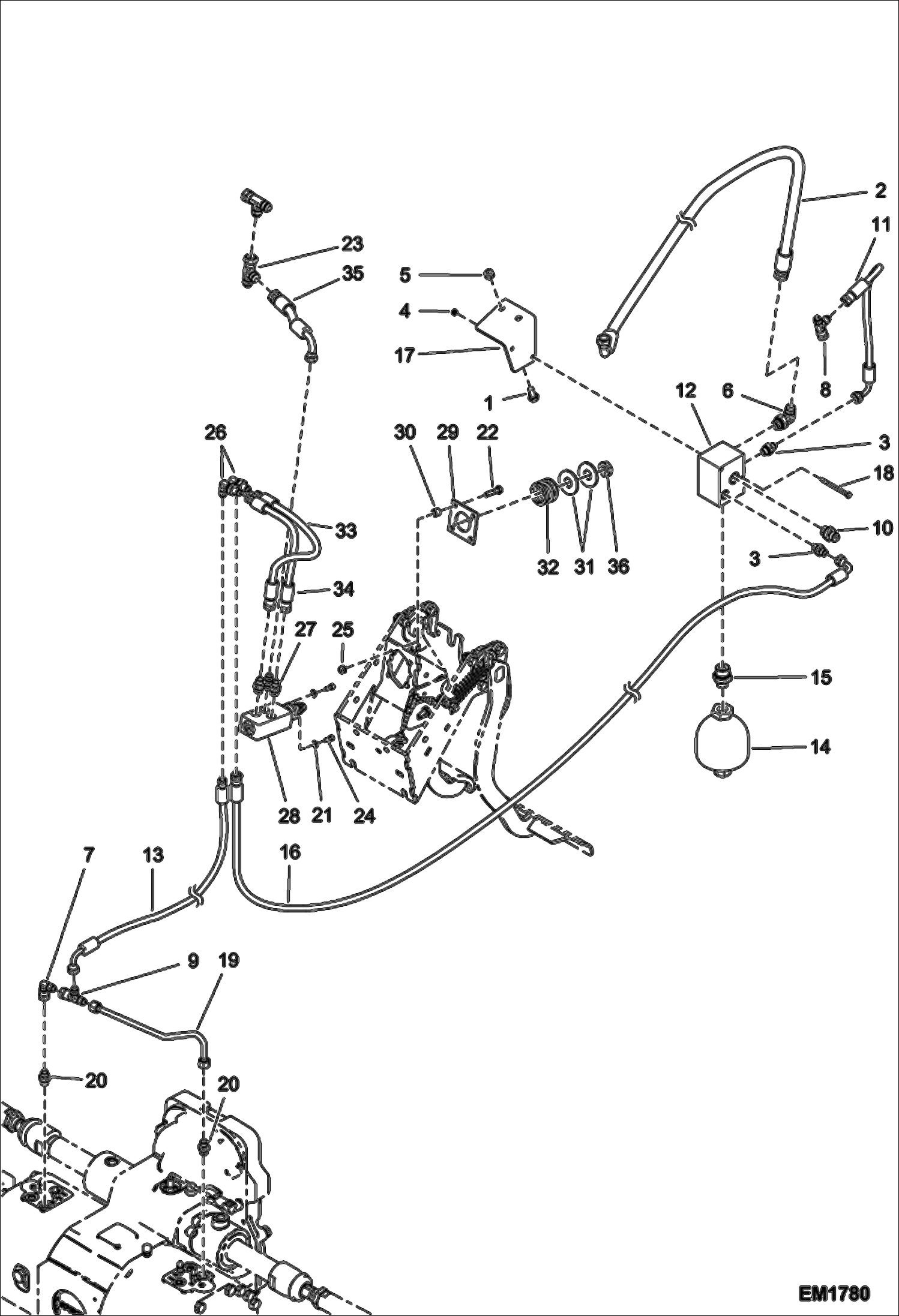

Схема запчастей Bobcat T2566 - SERVICE BRAKE HYDRAULIC INSTALLATION (W/Accumulator) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

01605.5

Screw

2

65717.1

Hose

3

90289.0

Union

4

100345-06W

NUT

5

100345-09A

NUT

6

7228465

FITTING, HYD ELBOW Was 100370-06P - A

7

100370-29P

ELBOW PIECE

8

100372-06G

UNION

9

100372-06G

UNION

10

100375-56M

UNION

11

6913657

Hose

12

6915372

SWITCH

13

6915430

HOSE

14

6915584

ACCUMULATOR

15

6916630

ADAPTOR

16

6916642

HOSE

17

6916647

SUPPORT

18

6916913

SCREW

19

6917567

HYDRAULIC PIPE

20

90289.0

Union Was 100375-17U - B

21

000350-01U

WASHER

22

01578.4

Screw

23

008372-02C

UNION

24

15354.4

Screw

25

01681.6

Nut Was 51851.4 - B

26

67196.6

Elbow

27

90289.0

Union

28

90807.9

Brake Valve

29

96054.2

Spacer

30

96061.7

Spacer

31

96655.6

Washer

32

96656.4

Spring

33

98397.3

Hose

34

98397.3

Hose

35

6908595

HOSE

36

000342-17S

NUT

Выбрано товаров: 36
