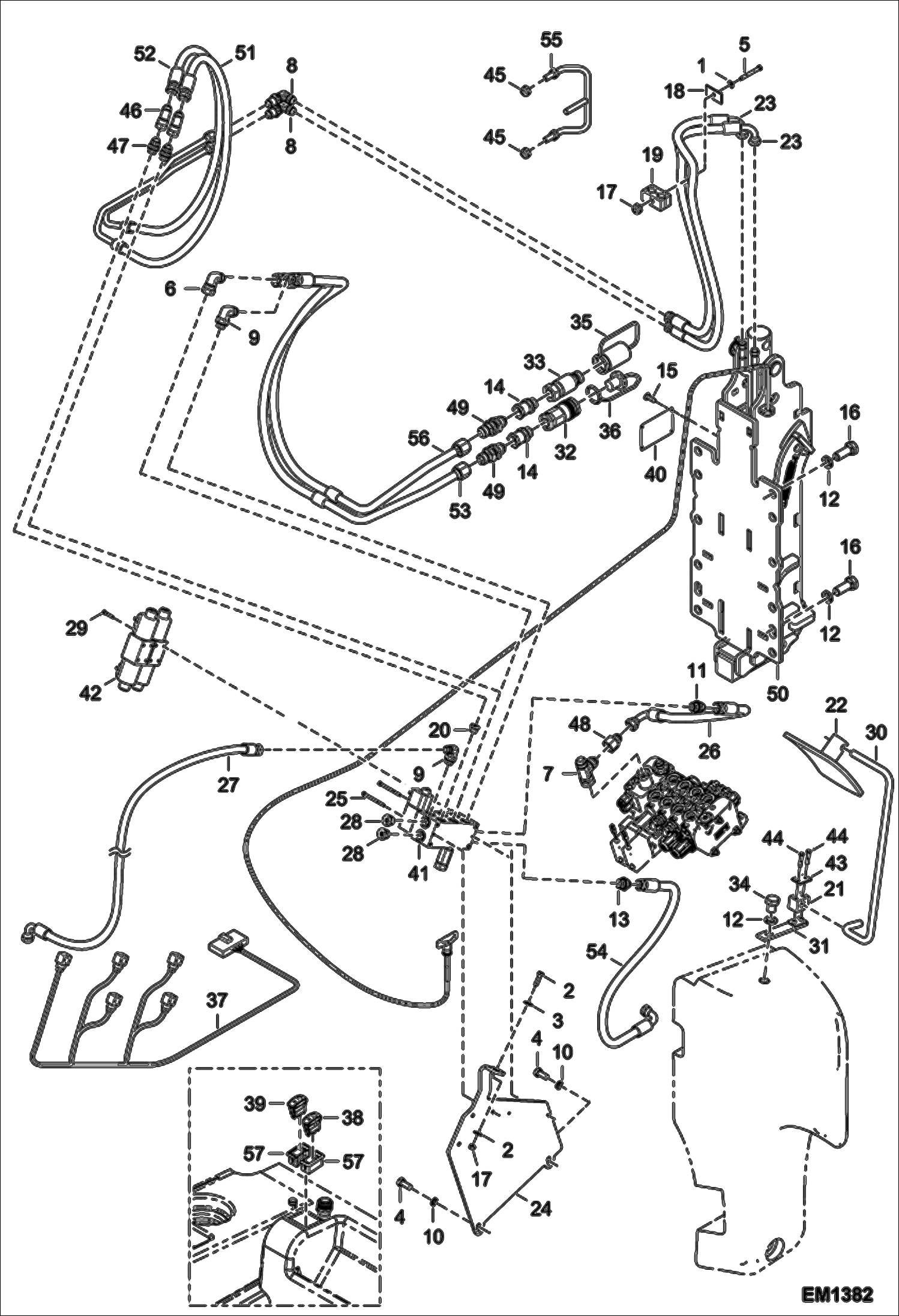

Запчасти Bobcat T2566 REAR HYDRAULIC HOOK & AUXILIARY HYDRAULICS (S/N A8FR11001 - 13003, A8G311001 - 13000) ACCESSORIES & OPTIONS

1

000350-01U

WASHER

2

000350-20Q

WASHER

3

01598.2

Screw

4

01612.1

Screw

5

008338-28K

SCREW

6

008372-01B

ELBOW PIECE

7

008372-34M

UNION

8

010370-87T

ELBOW PIECE

9

010370-94B

ELBOW PIECE

10

11689.7

Washer

11

014375-30H

UNION

12

15323.9

Washer

13

022375-04U

UNION

14

7225156

FITTING, HYD Was 022375-06W - A

15

43824.2

Rivet

16

44001.6

Screw

17

01681.6

Nut Was 51851.4 - B

18

54215.9

Plate

19

55605.0

CLAMP

20

56029.2

Plug

21

7179623

SLEEVE Was 61358.8 - A

22

63860.1

Mirror

23

65716.3

HOSE Was 6910391 - A

24

6922991

SUPPORT Was 6916562 - A

25

68566.9

Screw

26

70225.8

Hose

27

72281.9

Hose

28

78743.2

Drain plug

29

79160.8

Screw

30

79300.0

Pipe

31

84648.5

Plate

32

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

33

7225159

COUPLER, HYD Was 95994.0 - A

34

96467.6

Screw

35

7225160

CAP, COUPLER Was 96513.7 - A

36

7225161

CAP, COUPLER Was 96514.5 - A

37

96589.7

Wire harness

38

96598.8

Switch (proportional)

38

6927721

SWITCH, HYD HOOK

39

96599.6

Rear Option Switch

39

6927725

SWITCH, REAR HYD

40

PLATE, CE NAP Was 98167.0 - D

41

98356.9

Valve

42

98360.1

Union

43

100228-57K

COVER

44

100338-23F

SCREW

45

100345-09A

NUT

46

100371-17K

ELBOW

47

100375-38S

UNION

48

100375-44Z

REDUCER 1.1/16JIC 7/8JIC (20-16)

49

100375-52H

UNION

50

6717366

TUBELINE See Illustration REAR HYDRAULIC HOOK/ EM5349

51

6909893

HOSE

52

6909894

HOSE

53

6910275

Hose

54

6910391

Adapter

55

6910517

PROTECTOR

56

6911164

HOSE

57

7178511

SOCKET, END
