Запчасти Bobcat T2566 REAR HYDRAULIC HOOK KIT (S/N A8FR11001 - 13003, A8G311001 - 13000) ACCESSORIES & OPTIONS

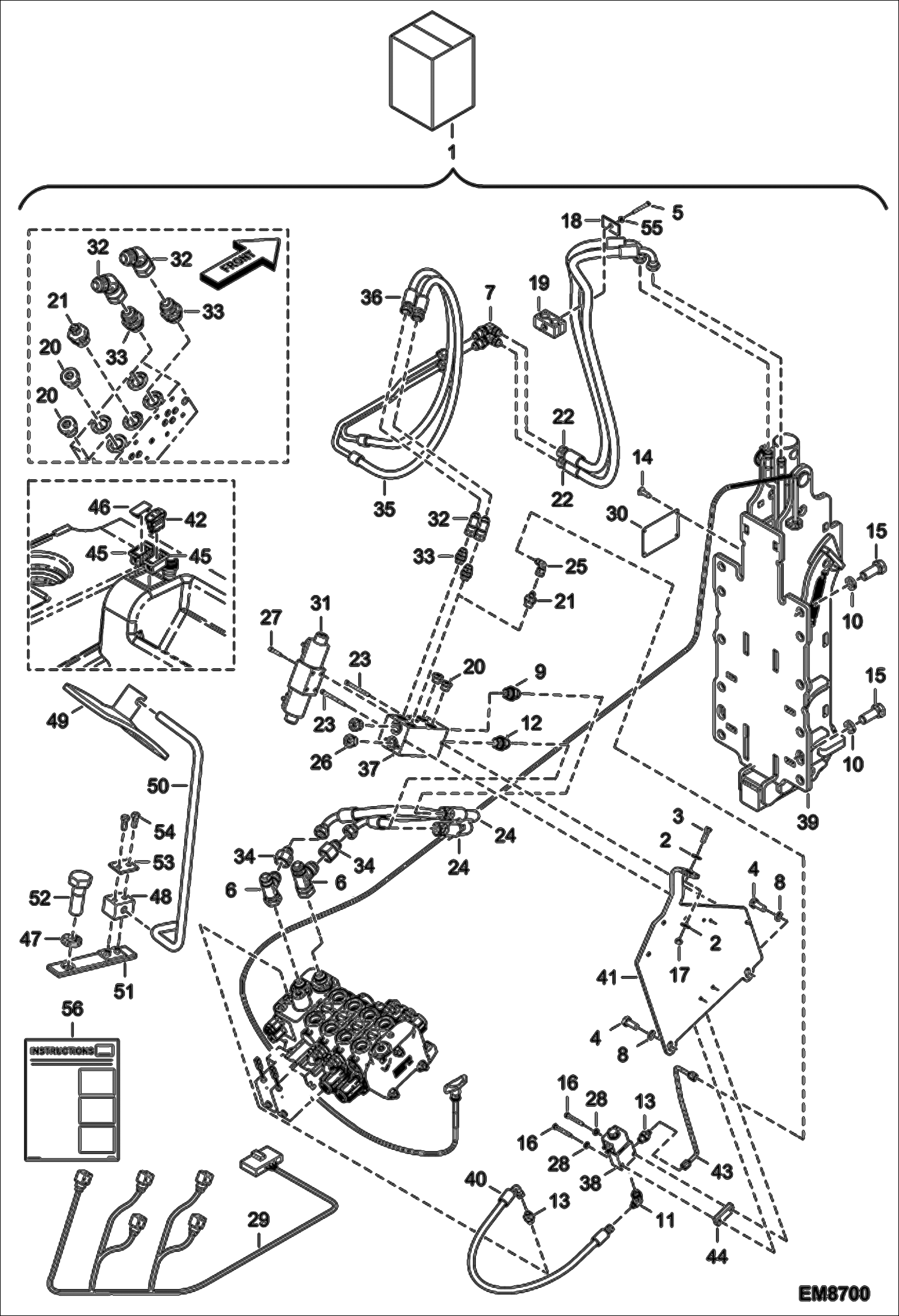

Схема запчастей Bobcat T2566 - REAR HYDRAULIC HOOK KIT (S/N A8FR11001 - 13003, A8G311001 - 13000) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6925388

KIT, REAR HYDRAULIC HOOK W/Ref. 2-56

1

6925389

KIT, REAR HYDRAULIC HOOK W/Ref. 2-56

2

000350-20Q

WASHER

3

01598.2

Screw

4

01612.1

Screw

5

008338-28K

SCREW

6

008372-34M

UNION

7

010370-87T

ELBOW PIECE

8

11689.7

Washer

9

014375-30H

UNION

10

15323.9

Washer

11

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

12

022375-04U

UNION

13

022375-28V

UNION

14

43824.2

Rivet

15

44001.6

Screw

16

1CM650

SCREW Was 48829.6 - A

17

01681.6

Nut Was 51851.4 - B

18

54215.9

Plate

19

55605.0

CLAMP

20

56029.2

Plug

21

65614.0

Union

22

65716.3

HOSE

23

68566.9

Screw

24

70225.8

Hose

25

72294.2

Elbow union

26

78743.2

Drain plug

27

79160.8

Screw

28

94574.1

Washer

29

96589.7

Wire harness

30

PLATE, SERIAL NO. NAP

31

98360.1

Union

32

100371-17K

ELBOW

33

100375-38S

UNION

34

100375-44Z

REDUCER 1.1/16JIC 7/8JIC (20-16)

35

6909893

HOSE

36

6909894

HOSE

37

6911079

HYDRAULIC BLOCK

38

6911845

SOLENOID 2-2

39

6917366

HOOK See Illustration REAR HYDRAULIC HOOK/ EM5349

40

6922045

HOSE

41

6922991

SUPPORT

42

96598.8

Switch (proportional)

42

6927721

SWITCH, HYD HOOK

43

6927949

HYDRAULIC TUBE

44

6927957

SPACER

45

7178511

SOCKET, END

46

7178513

CAP, SOCKET

47

15323.9

Washer

48

7179623

SLEEVE Was 61358.8 - A

49

63860.1

Mirror

50

79300.0

Pipe

51

84648.5

Plate

51

6918252

SUPPORT

52

96467.6

Screw

53

100228-57K

COVER

54

100338-23F

SCREW

55

000350-01U

WASHER

56

6986910

INSTRUCTIONS, INSTALLATION

Выбрано товаров: 59
