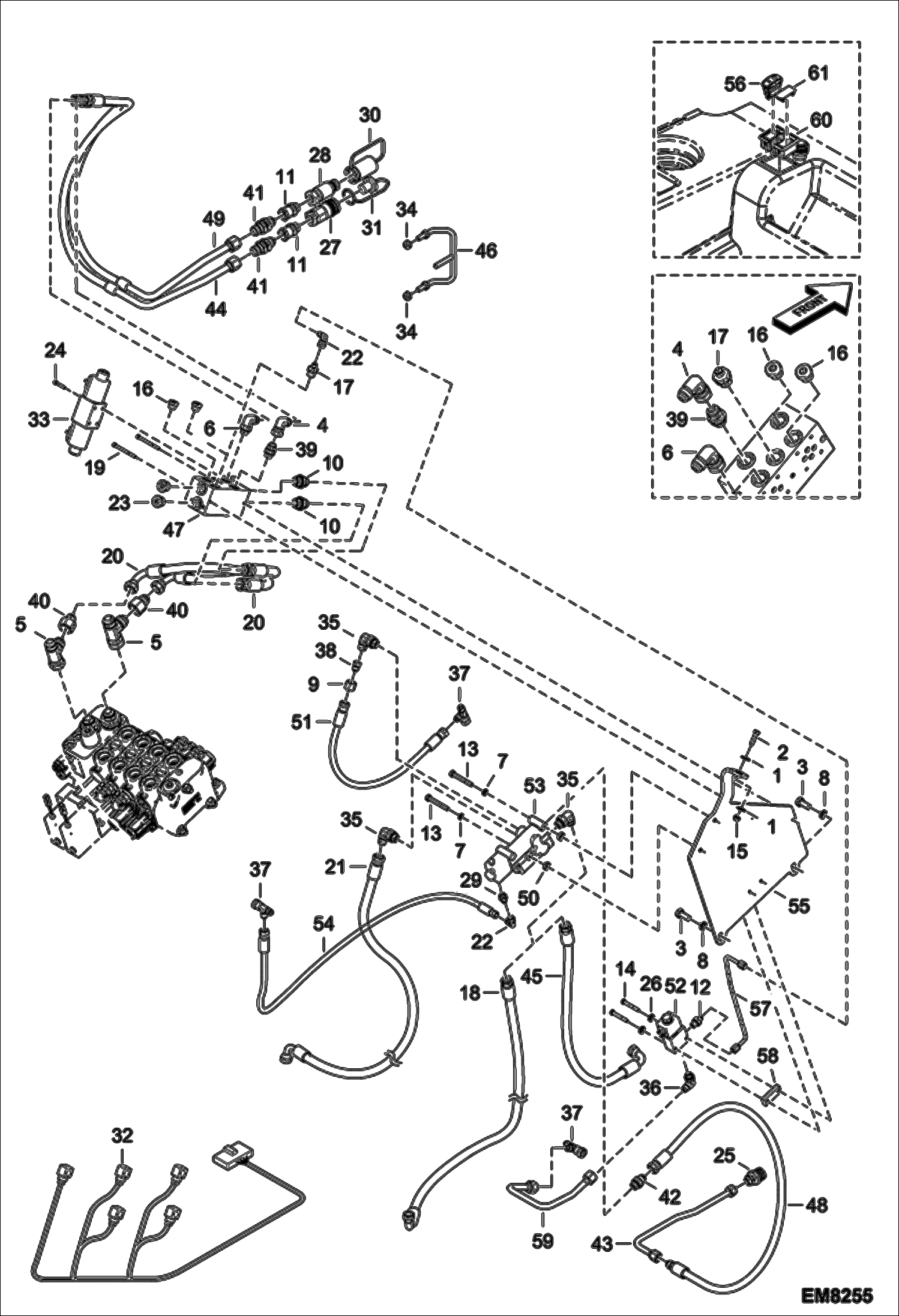

Запчасти Bobcat T2566 REAR AUXILIARY HYDRAULICS & TRAILER BRAKE (S/N A8FR15000 & Above, A8G315000 & Above) ACCESSORIES & OPTIONS

1

000350-20Q

WASHER

2

01598.2

Screw

3

01612.1

Screw

4

008372-01B

ELBOW PIECE

5

008372-34M

UNION

6

010370-94B

ELBOW PIECE

7

11463.7

Washer

8

11689.7

Washer

9

014345-12C

NUT , ADAPTER

10

014375-30H

UNION

11

7225156

FITTING, HYD Was 022375-06W - A

12

022375-28V

UNION

13

33966.3

Screw

14

1CM650

SCREW Was 48829.6 - A

15

01681.6

Nut Was 51851.4 - B

16

56029.2

Plug

17

65614.0

Union

18

65717.1

Hose

19

68566.9

Screw

20

70225.8

Hose

21

72281.9

Hose

22

72294.2

Elbow union

23

78743.2

Drain plug

24

79160.8

Screw

25

79170.7

Coupling

26

94574.1

Washer

27

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

28

7225159

COUPLER, HYD

29

96505.3

Union union Was 96505.3 - A

30

7225160

CAP, COUPLER Was 96513.7 - A

31

7225161

CAP, COUPLER Was 96514.5 - A

32

96589.7

Wire harness

33

98360.1

Union

34

100345-09A

NUT

35

7228465

FITTING, HYD ELBOW Was 100370-06P - A

36

100370-18C

ELBOW PIECE

37

100372-06G

UNION

38

100375-06H

ADAPTER

39

100375-38S

UNION

40

100375-44Z

REDUCER 1.1/16JIC 7/8JIC (20-16)

41

100375-52H

UNION

42

100375-56M

UNION

43

6908332

Pipe

44

6910275

Hose

45

6910391

Adapter

46

6910517

PROTECTOR

47

6911079

HYDRAULIC BLOCK

48

6911151

Hose

49

6911164

HOSE

50

6911384

Spacer

51

6911817

HOSE, HYD

52

6911845

SOLENOID 2-2

53

6915262

VALVE

54

6916966

Hose

55

6922991

SUPPORT

56

6927725

SWITCH, REAR HYD

57

6927949

HYDRAULIC TUBE

58

6927957

SPACER

59

6933444

TUBELINE

60

7178511

SOCKET, END

61

7178513

CAP, SOCKET
