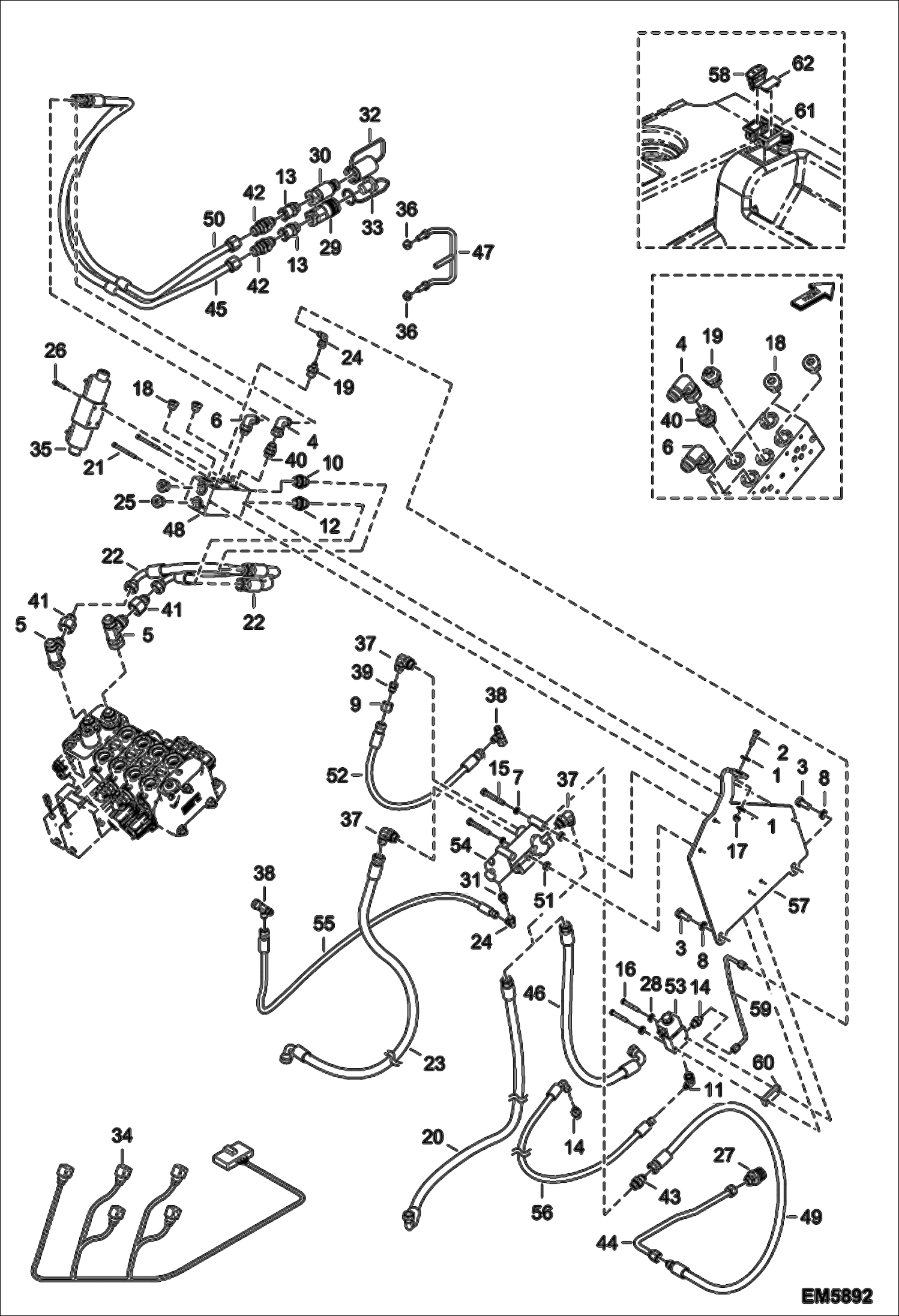

Запчасти Bobcat T2566 REAR AUXILIARY HYDRAULICS & TRAILER BRAKE (S/N A8FR13004 - 14999, A8G313001 - 14999) ACCESSORIES & OPTIONS

1

000350-20Q

WASHER

2

01598.2

Screw

3

01612.1

Screw

4

008372-01B

ELBOW PIECE

5

008372-34M

UNION

6

010370-94B

ELBOW PIECE

7

11463.7

Washer

8

11689.7

Washer

9

014345-12C

NUT , ADAPTER

10

014375-30H

UNION

11

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

12

022375-04U

UNION

13

7225156

FITTING, HYD Was 022375-06W - A

14

022375-28V

UNION

15

33966.3

Screw

16

1CM650

SCREW Was 48829.6 - A

17

01681.6

Nut Was 51851.4 - B

18

56029.2

Plug

19

65614.0

Union

20

65717.1

Hose

21

68566.9

Screw

22

70225.8

Hose

23

72281.9

Hose

24

72294.2

Elbow union

25

78743.2

Drain plug

26

79160.8

Screw

27

79170.7

Coupling

28

94574.1

Washer

29

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

30

7225159

COUPLER, HYD Was 95994.0 - A

31

96505.3

Union union

32

7225160

CAP, COUPLER Was 96513.7 - A

33

7225161

CAP, COUPLER Was 96514.5 - A

34

96589.7

Wire harness

35

98360.1

Union

36

100345-09A

NUT

37

7228465

FITTING, HYD ELBOW Was 100370-06P - A

38

100372-06G

UNION

39

100375-06H

ADAPTER

40

100375-38S

UNION

41

100375-44Z

REDUCER 1.1/16JIC 7/8JIC (20-16)

42

100375-52H

UNION

43

100375-56M

UNION

44

6908332

Pipe

45

6910275

Hose

46

6910391

Adapter

47

6910517

PROTECTOR

48

6911079

HYDRAULIC BLOCK

49

6911151

Hose

50

6911164

HOSE

51

6911384

Spacer

52

6911817

HOSE, HYD

53

6911845

SOLENOID 2-2

54

6915262

VALVE

55

6916966

Hose

56

6922045

HOSE

57

6922991

SUPPORT

58

6927725

SWITCH, REAR HYD

59

6927949

HYDRAULIC TUBE

60

6927957

SPACER

61

7178511

SOCKET, END

62

7178513

CAP, SOCKET
