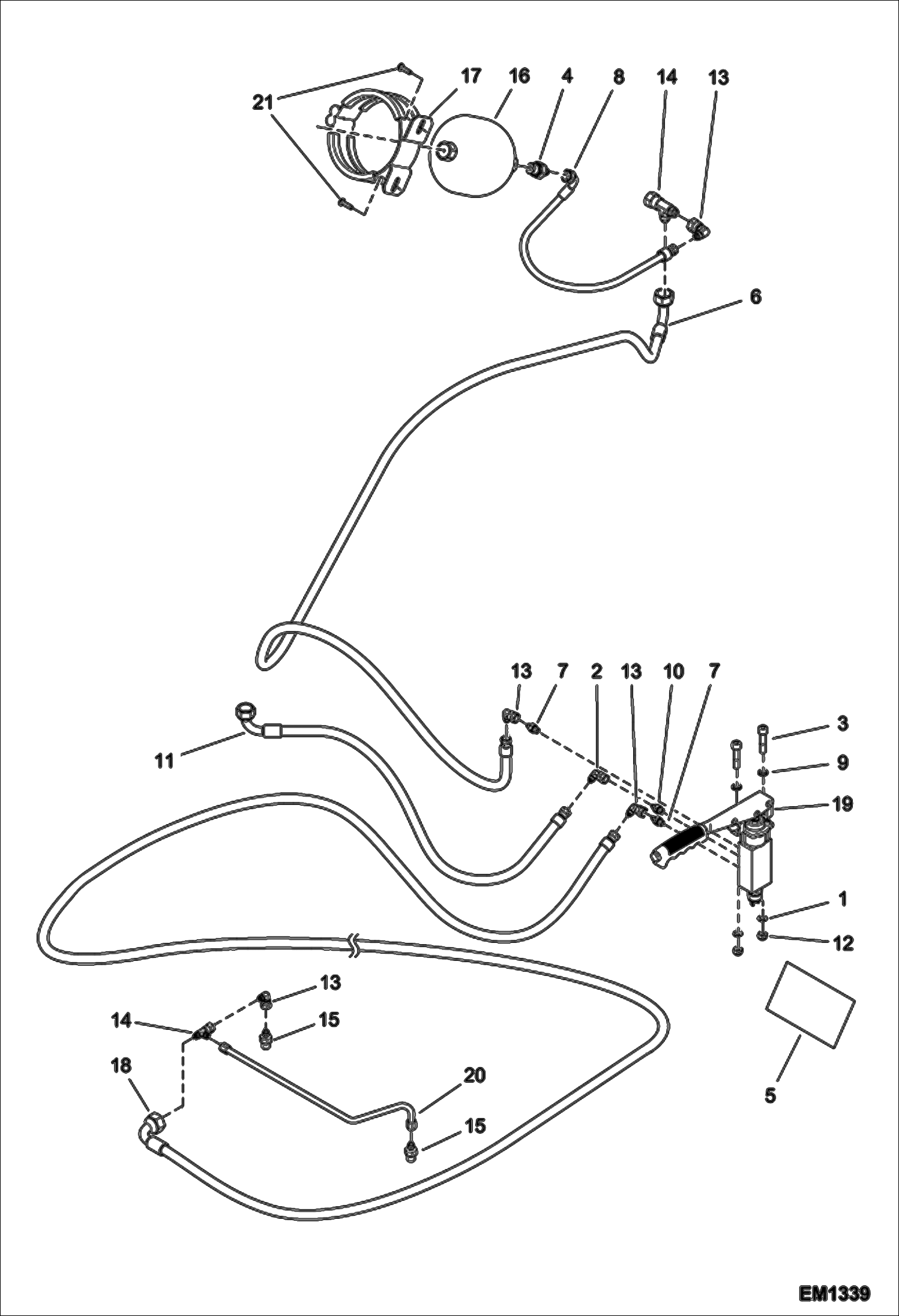

Запчасти Bobcat T2566 PARKING BRAKE HYDRAULIC INSTALLATION (W/Accumulator) ACCESSORIES & OPTIONS

1

01696.4

Washer

2

008372-01B

ELBOW PIECE

3

10167.5

Screw

4

77912.4

Adapter

5

89758.7

Decal

6

70865.1

Hose Was 90265.0 - B

7

90289.0

Union

8

92126.2

Hose

9

94574.1

Washer

10

96567.3

Union

11

96776.0

Hose

12

100345-06W

NUT

13

100370-29P

ELBOW PIECE

14

100372-06G

UNION

15

90289.0

Union Was 100375-17U - B

16

6911486

Accumulator

17

6911812

Collar

18

6915428

HOSE

19

6916931

HAND BRAKE CONTROL

20

6918206

PIPE Was 6917568 - A

21

6926930

RIVET Was 96541.8 - A
