Запчасти Bobcat T2566 BRAKES - FRONT AXLE DRIVE SYSTEM

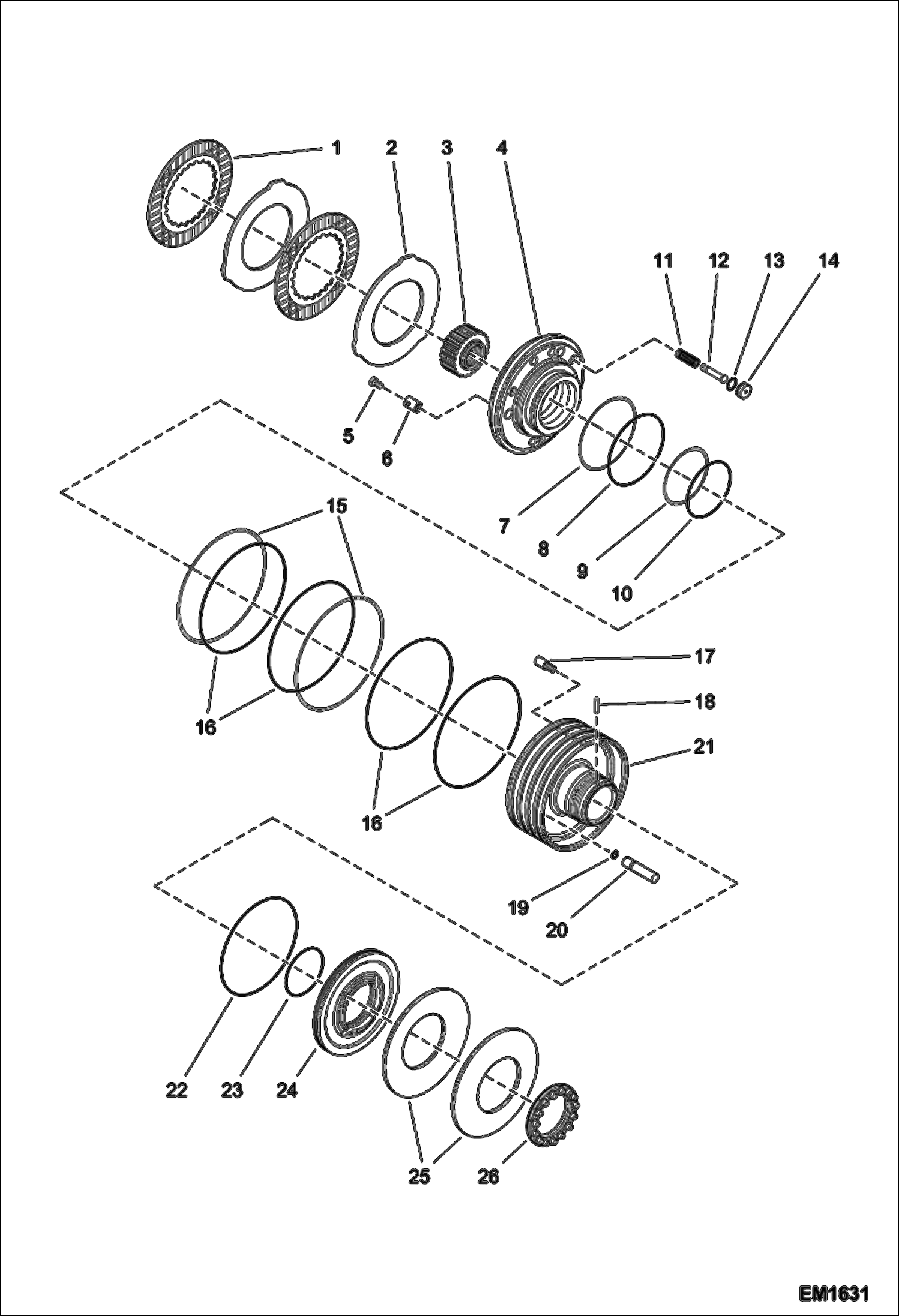

Схема запчастей Bobcat T2566 - BRAKES - FRONT AXLE DRIVE SYSTEM

Артикул

Название

Примечание

Количество

1

6912140

BRAKE DISC

2

6912675

BRAKE DISC intermediate

3

6912142

REDUCER TUBE

4

6912145

PISTON

5

6921027

ADJUSTING BOLT Was 6912154 - B

6

6912864

SPRING

7

6912620

BACK -UP RING

8

6912720

O'RING

9

6912618

BACK -UP RING

10

6912710

O'RING

11

6912147

SPRING

12

6912156

SCREW

13

6912719

O'RING

14

6912135

PLUG

15

6912619

BACK -UP RING

16

6921516

O RING Was 6912712 - A

17

6912155

SCREW

18

6912698

PIN

19

6912713

O'RING

20

6912141

PIN

21

7011139

PISTON Was 6912144 - A

22

6912711

O'RING

23

6912718

O'RING

24

6912143

PISTON Was 7011141 - B

25

6912148

WASHER, SPRING Was 6912711 - B

26

6912687

NUT Was 6912772 - B

Выбрано товаров: 26
