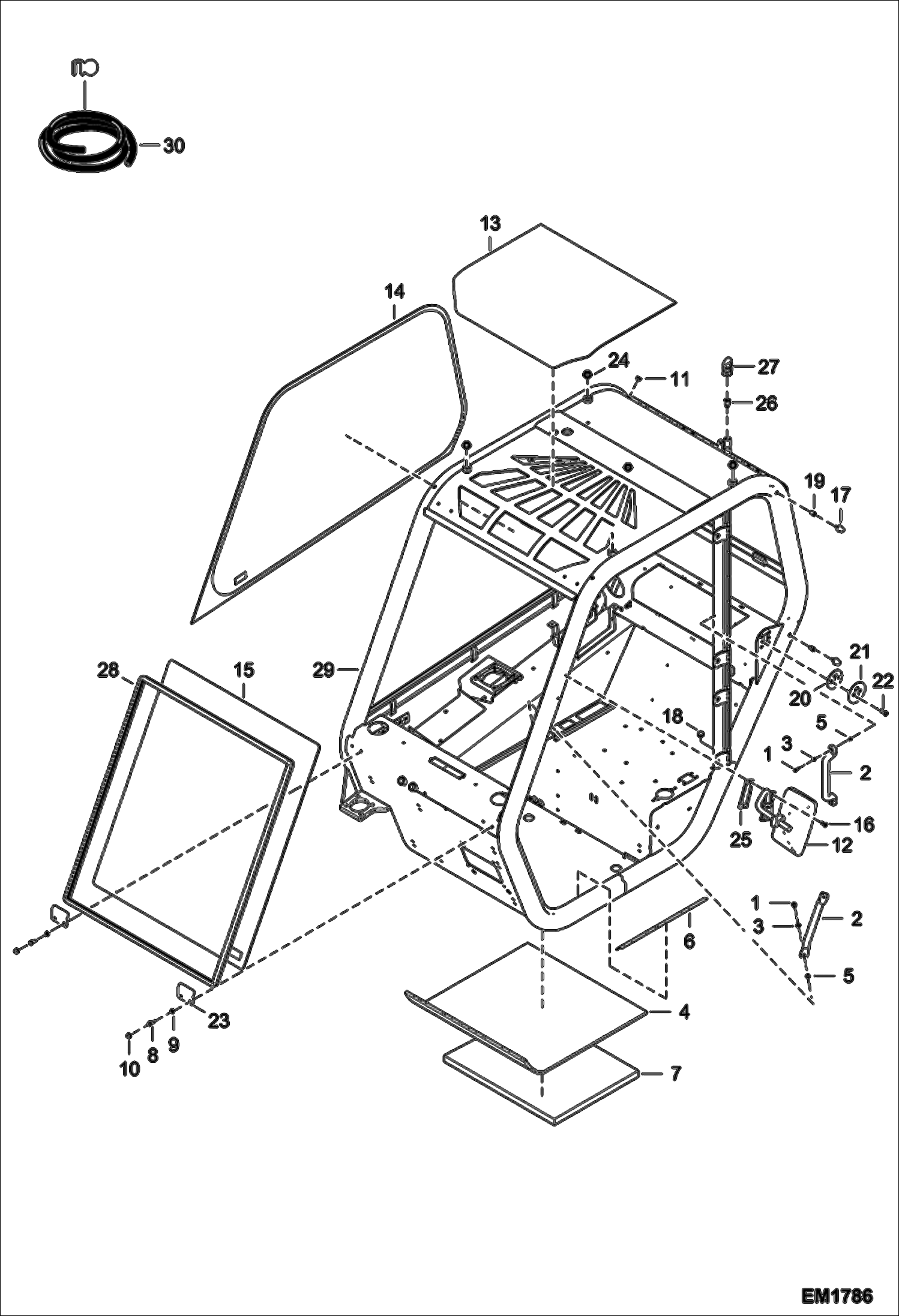

Запчасти Bobcat T2566 OPERATOR CAB MAIN FRAME

1

01591.7

Screw

2

63349.5

Handle

3

94574.1

Washer

4

97088.9

Mat

5

6914407

SPACER

6

6915508

NON SKID Was 6564833 - A

7

6915519

MAT Was 97089.7 - A

8

01590.9

Screw

9

01696.4

Washer

10

63332.1

Cap

11

68952.1

PLUG Was 67368.1 - B

12

79903.1

Mirror LH W/bracket

12

6925400

MIRROR, W/O BRACKET W/O bracket

13

6908786

WINDOW, TOP ROOF

14

6908788

RH WINDOW PANE RH

15

6908790

WINDSHIELD

16

6909997

SCREW FHC M6X16

17

6910542

DOOR STOP

18

6910930

GUIDE

19

6910932

INSERT M8

20

6910933

SPACER,RUBBER

21

6910934

PLATE,PROTECTION

22

6910935

SCREW

23

6971665

SUPPORT

24

6918679

PLUG

25

CONNECTION NAP - Order Ref. 12

26

78818.2

Connection

27

78819.0

Gyrolight plug

28

SEAL NAP - 3650 mm (143.7'') long - Order Ref. 30

29

6963094

FRAME

29

6933448

CABIN WELDED NG25-27-33 Was 6927790 - A

29

6933448

CABIN WELDED NG25-27-33

30

75944.9

SEAL bulk - sold per foot Was 57796.5 - A
