Запчасти Bobcat T2566 COOLING FAN CIRCUIT (W/ OPTIONAL REVERSE) (S/N 363012601 & Above, 363112571 & Above) POWER UNIT

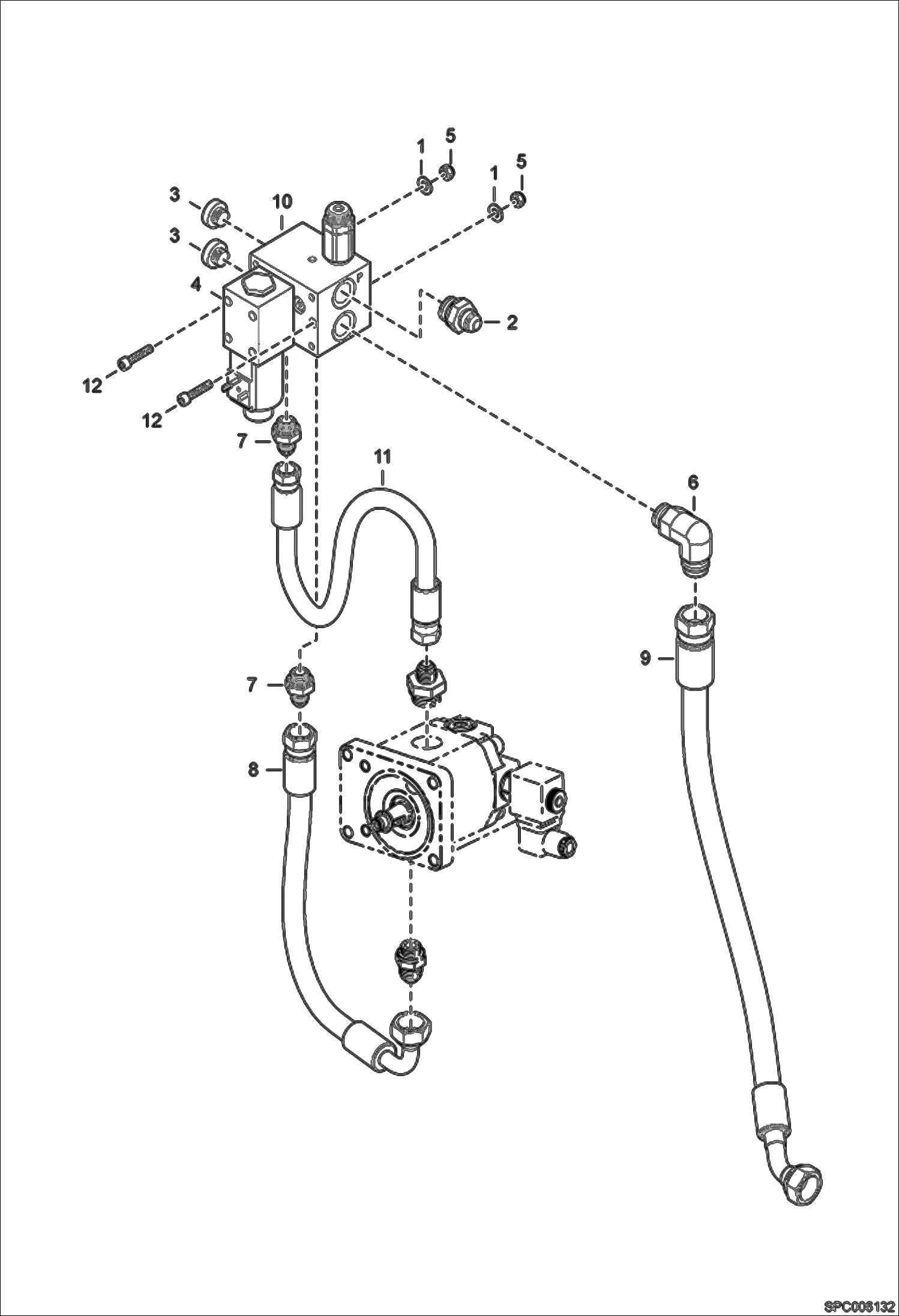

Схема запчастей Bobcat T2566 - COOLING FAN CIRCUIT (W/ OPTIONAL REVERSE) (S/N 363012601 & Above, 363112571 & Above) POWER UNIT

Артикул

Название

Примечание

Количество

1

01696.4

Washer

2

022375-04U

UNION

3

78743.2

Drain plug

4

98355.1

Electro distributor

5

100345-05V

NUT

6

100370-05N

ELBOW UNION

7

100375-38S

UNION

8

6911028

HOSE

9

6928048

HOSE Was 6913654 - A

10

6917718

PRESSURE SWITCH

11

6918314

HOSE

12

98897.2

VIS

Выбрано товаров: 12
