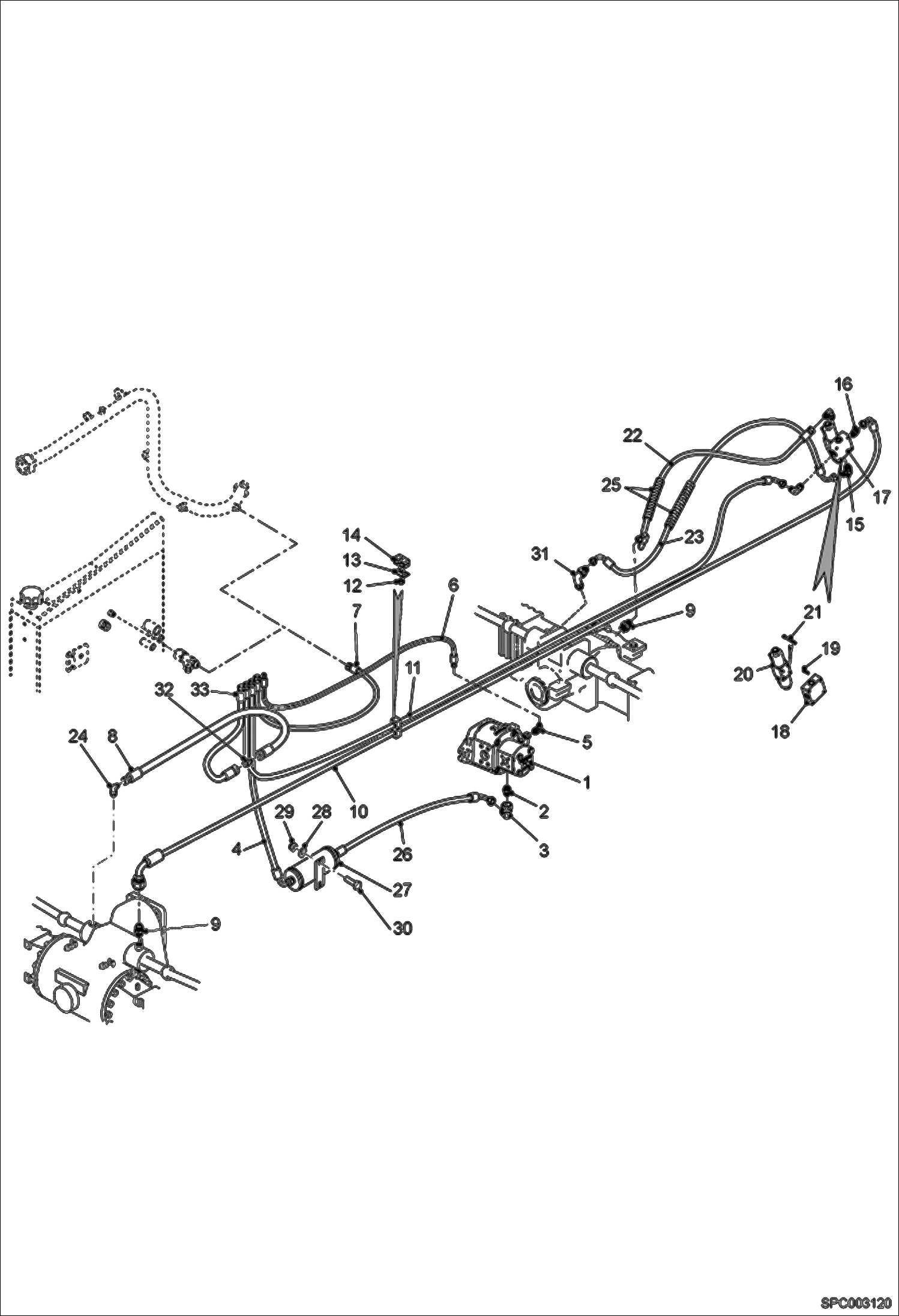

Запчасти Bobcat T2566 STEERING HOSE & FITTINGS (WITH DAMPER) HYDRAULIC SYSTEM

1

6909807

PUMP See Illustration HYDRAULIC PUMP INSTALLATION/ SPC003116

2

100375-38S

UNION

3

008372-01B

ELBOW PIECE

4

100319-28U

HOSE

5

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

6

79148.3

Hose

7

79147.5

Hose

8

6917974

HOSE

9

100375-56M

UNION

10

6915278

HOSE-FLEXIBLE

11

96775.2

Hose

12

100345-06W

NUT

13

100212-53R

COVER PLATE

14

100369-18T

COLLAR

15

010370-94B

ELBOW PIECE

16

100375-38S

UNION

17

98347.8

Steering block

18

98348.6

Support

19

10167.5

Screw

20

98349.4

Steering selector valve

21

79160.8

Screw

22

96776.0

Hose

23

6916885

HOSE Was 96792.7

24

6917976

ELBOW UNION

25

82090.2

Insulation

26

100319-28U

HOSE

27

MUFFLER, HYD NLA Was 6914316 - A

28

01697.2

Washer

29

01681.6

Nut Was 51851.4 - B

30

4CM825

BOLT Was 01597.4 - B

31

7228465

FITTING, HYD ELBOW Was 100370-06P - A

32

6917975

HOSE

33

100375-37R

UNION
