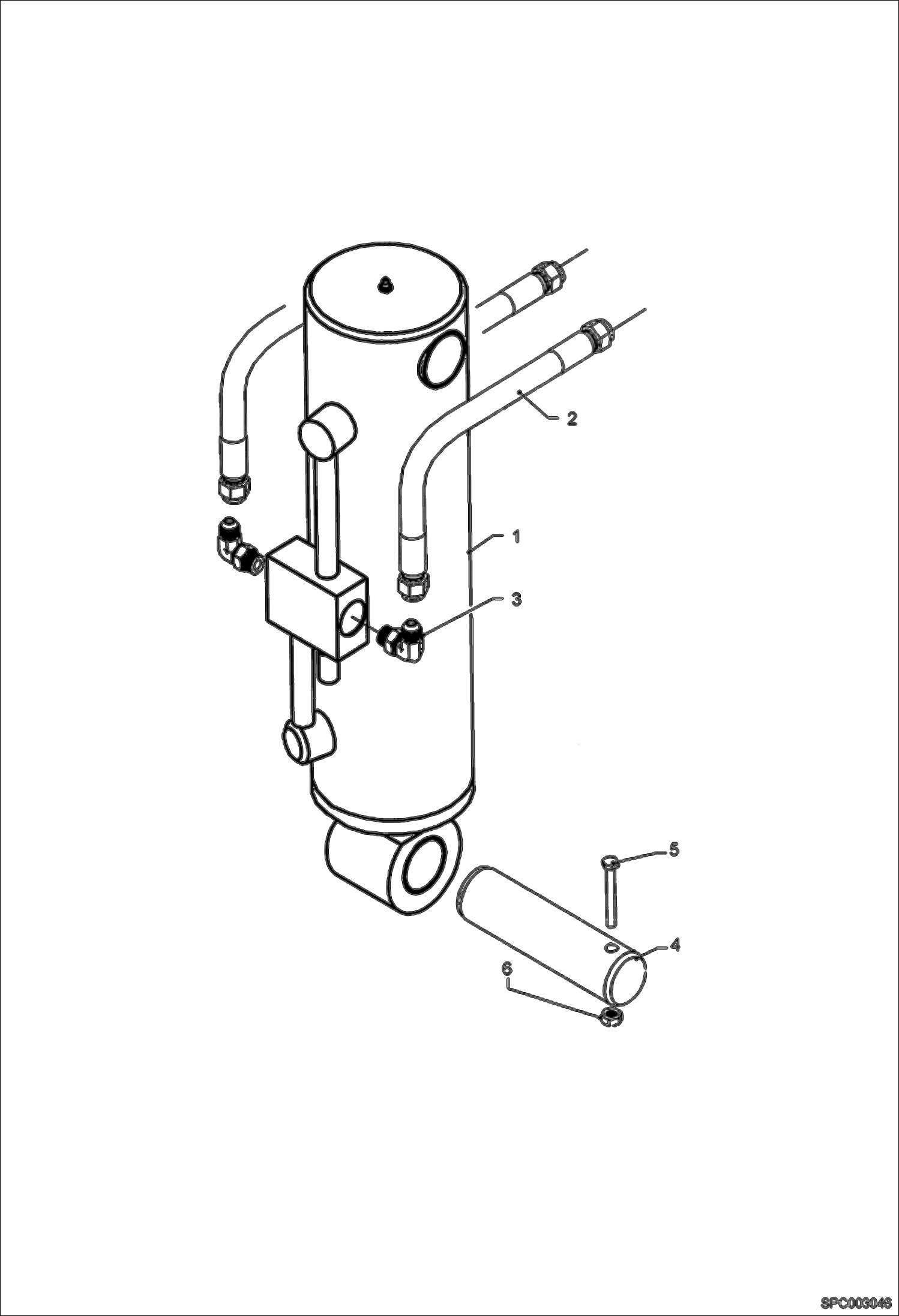

Запчасти Bobcat T2566 TILT CYLINDER INSTALLATION HYDRAULIC SYSTEM

1

TILT CYLINDER See Illustration TILT CYLINDER/ SPC003115 NLA Was 90790.7 - A

1

6917921

CYLINDER, RAM See Illustration TILT CYLINDER/ SPC003175

2

80407.0

Hose

3

65285.9

Elbow

4

7214127

PIN Was 80400.5 - A

5

7CM10100

SCREW HEX Was 65397.2 - A

6

100345-09A

NUT
