Запчасти Bobcat T2566 DIFFERENTIAL - REAR AXLE (serial number listed is the vendor axle serial number) (S/N H-ITA-537600 & Below) DRIVE SYSTEM

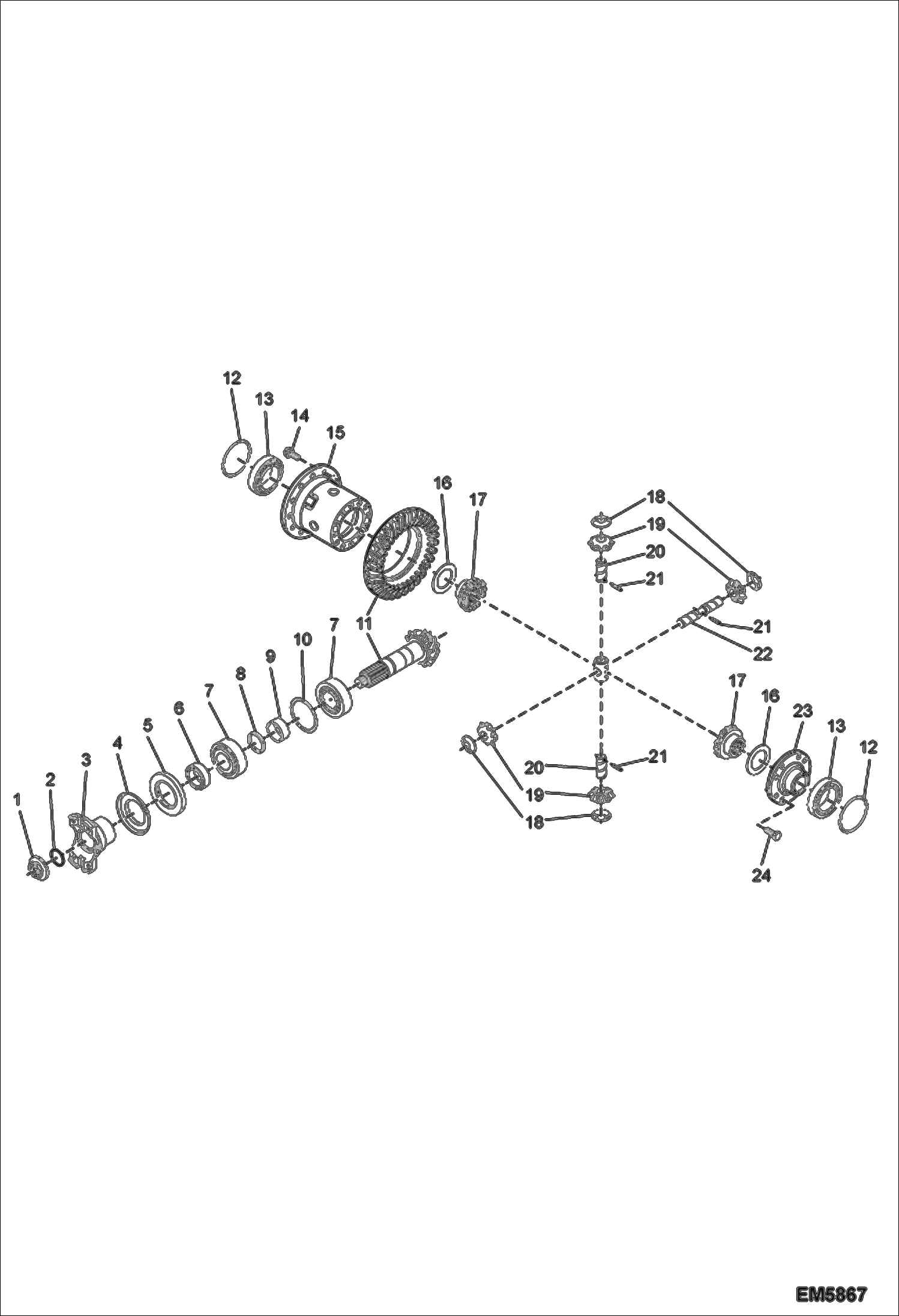

Схема запчастей Bobcat T2566 - DIFFERENTIAL - REAR AXLE (serial number listed is the vendor axle serial number) (S/N H-ITA-537600 & Below) DRIVE SYSTEM

Артикул

Название

Примечание

Количество

1

6912689

NUT

2

6912709

O'RING

3

6912630

FLANGE

4

6912670

COVER

5

7010890

SEAL Was 6912703 - A

6

6912694

SPACER

7

6912744

BEARING

8

6912616

BUSH

8

6912617

BUSH

9

6912692

SPACER

10

6912639

SHIM 0,10 mm

10

6912640

SHIM 0,15 mm

10

6912641

SHIM 0,20 mm

11

6912666

BEVEL GEAR

12

6912638

SHIM 0,10 mm

12

6912643

SHIM 0,15 mm

12

6912644

SHIM 0,20 mm

12

6646265

SHIM 0.25 mm Was 6912645 - A

13

6912743

BEARING

14

6912770

SCREW

15

6912650

DIFFERENTIAL CASE

16

7010568

WASHER FRICTION Was 6912738 - A

17

6912731

PLANETARY

18

7010569

WASHER FRICTION Was 6912739 - A

19

6912750

SATELLITE

20

6912611

SPINDLE

21

6912698

PIN

22

6912610

SPINDLE

23

6912668

COVER

24

6912761

SCREW

Выбрано товаров: 30
