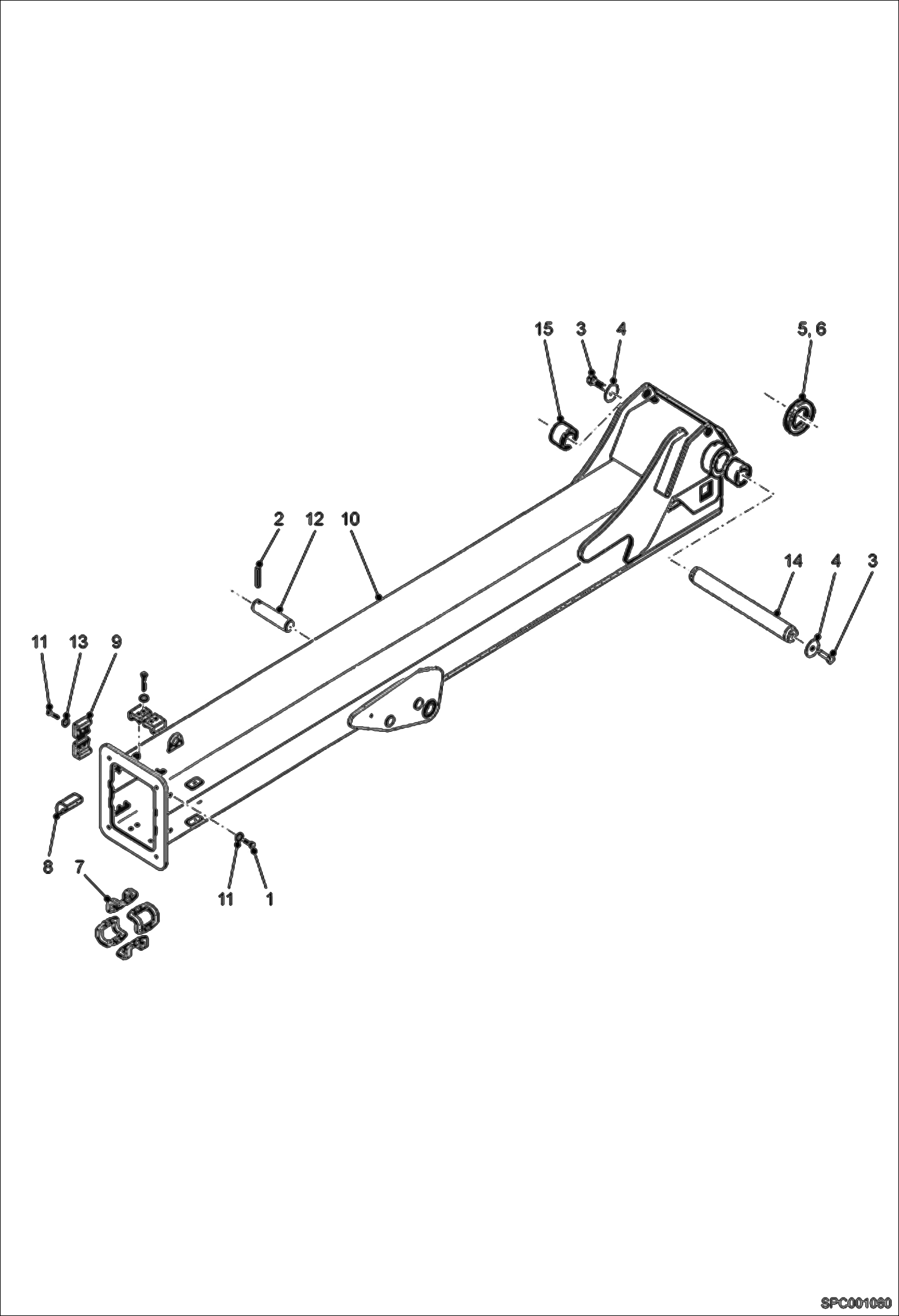

Запчасти Bobcat T2566 FIXED BOOM ASSY (S/N 363012001 & Above) MAIN FRAME

1

01616.2

Screw

2

29264.9

Pin

3

44001.6

Screw

4

7214510

WASHER Was 77430.7 - A

5

79428.9

Washer 2 mm

6

79429.7

Washer 4 mm

7

88401.5

Shoe

8

88403.1

Wear Pad

9

88404.9

Mounting Block

10

88414.8

Outer Boom

11

88497.3

Screw

12

88717.4

Pin

13

89332.1

Washer

14

89409.7

Pin

15

7213359

BEARING, SWING Was 77380.4 - A
