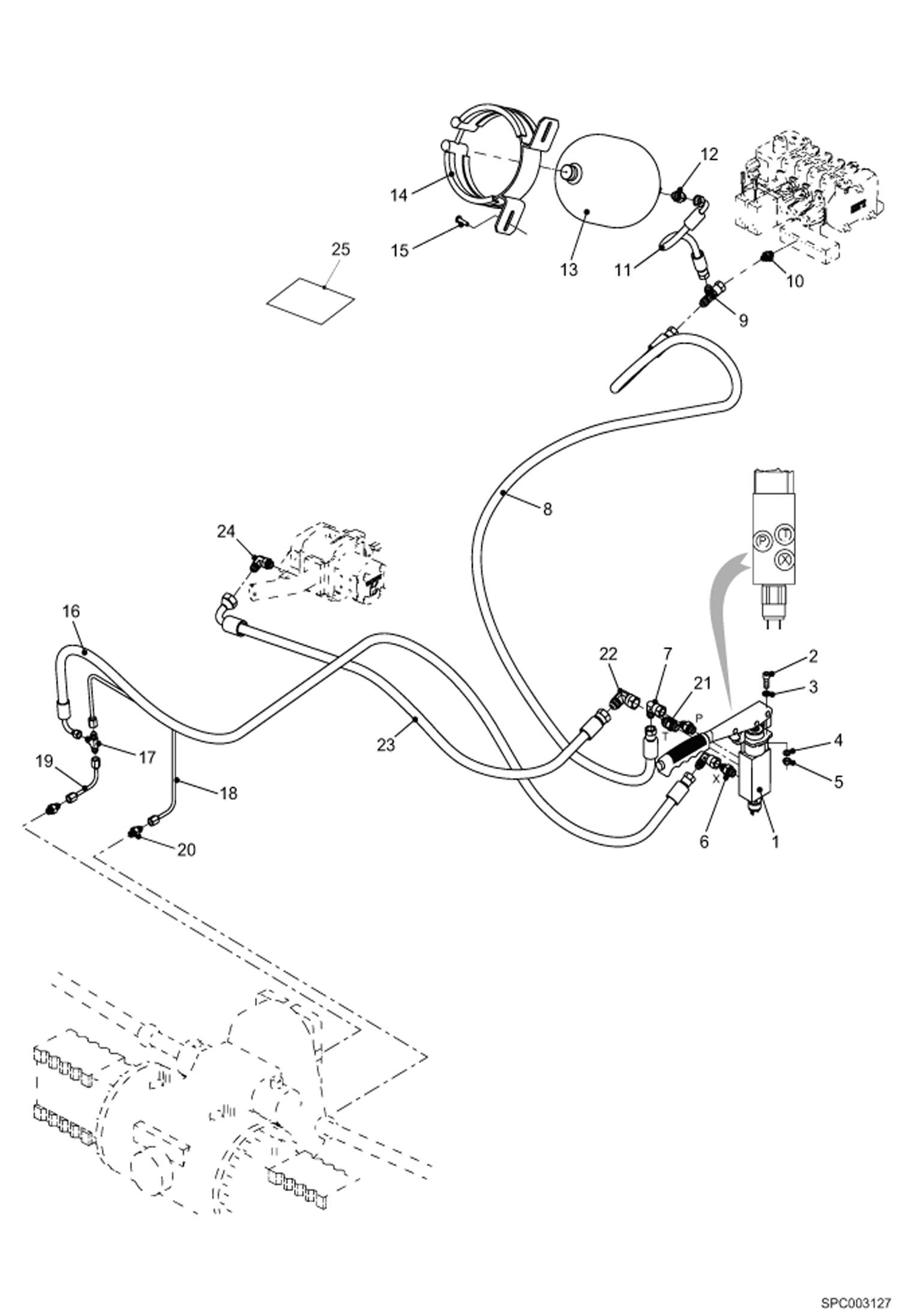

Запчасти Bobcat T2556 PARKING BRAKE HYDRAULIC INSTALLATION (ACCUMULATOR) HYDRAULIC SYSTEM

1

6909330

BRAKE , PARKING , CONTROL See Illustration PARKING BRAKE LEVER/ SPC001022

2

10167.5

Screw

3

94574.1

Washer

4

01696.4

Washer

5

100345-06W

NUT

6

90289.0

Union

7

100370-29P

ELBOW PIECE

8

70865.1

Hose Was 90265.0 - B

9

100372-06G

UNION

10

77013.1

Adapter

11

92126.2

Hose

12

77912.4

Adapter

13

6911486

Accumulator

14

6911812

Collar

15

96541.8

Rivet

16

92991.9

Hose

17

62849.5

T- union

18

90191.8

Tube

19

89475.8

Tube

20

100375-71D

UNION

21

96567.3

Union

22

008372-01B

ELBOW PIECE

23

96776.0

Hose

24

010370-94B

ELBOW PIECE

25

89758.7

Decal
