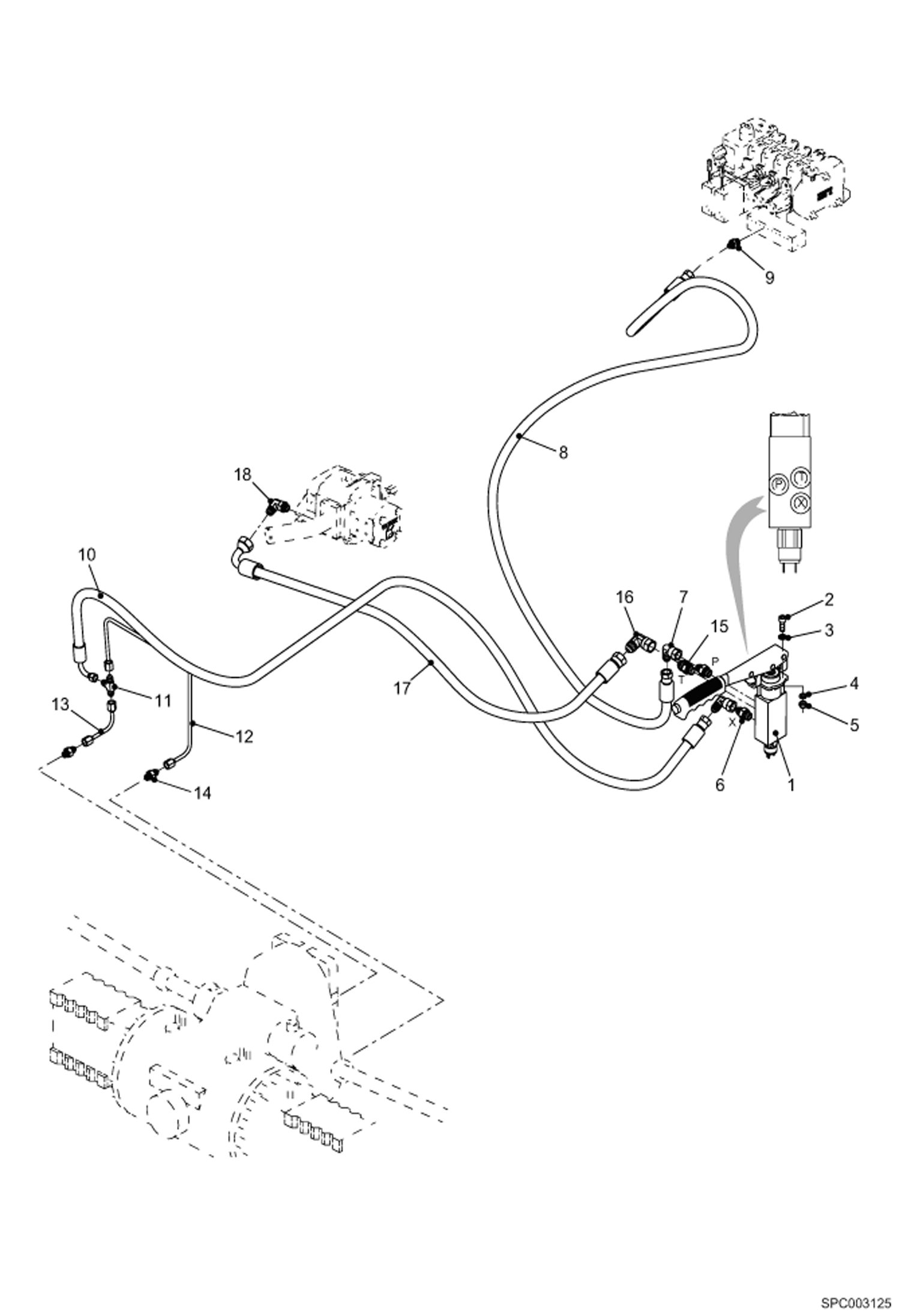

Запчасти Bobcat T2556 PARKING BRAKE HYDRAULIC INSTALLATION HYDRAULIC SYSTEM

1

LEVER ASSY NAP Was 6909330

1

6915524

CONTROL, BRAKE HAND

2

10167.5

Screw

3

94574.1

Washer

4

01696.4

Washer

5

100345-06W

NUT

6

90289.0

Union

7

100370-29P

ELBOW PIECE

8

70865.1

Hose Was 90265.0 - B

9

77013.1

Adapter

10

92991.9

Hose

11

62849.5

T- union

12

90191.8

Tube

13

89475.8

Tube

14

100375-71D

UNION

15

96567.3

Union

16

008372-01B

ELBOW PIECE

17

96776.0

Hose

18

010370-94B

ELBOW PIECE
