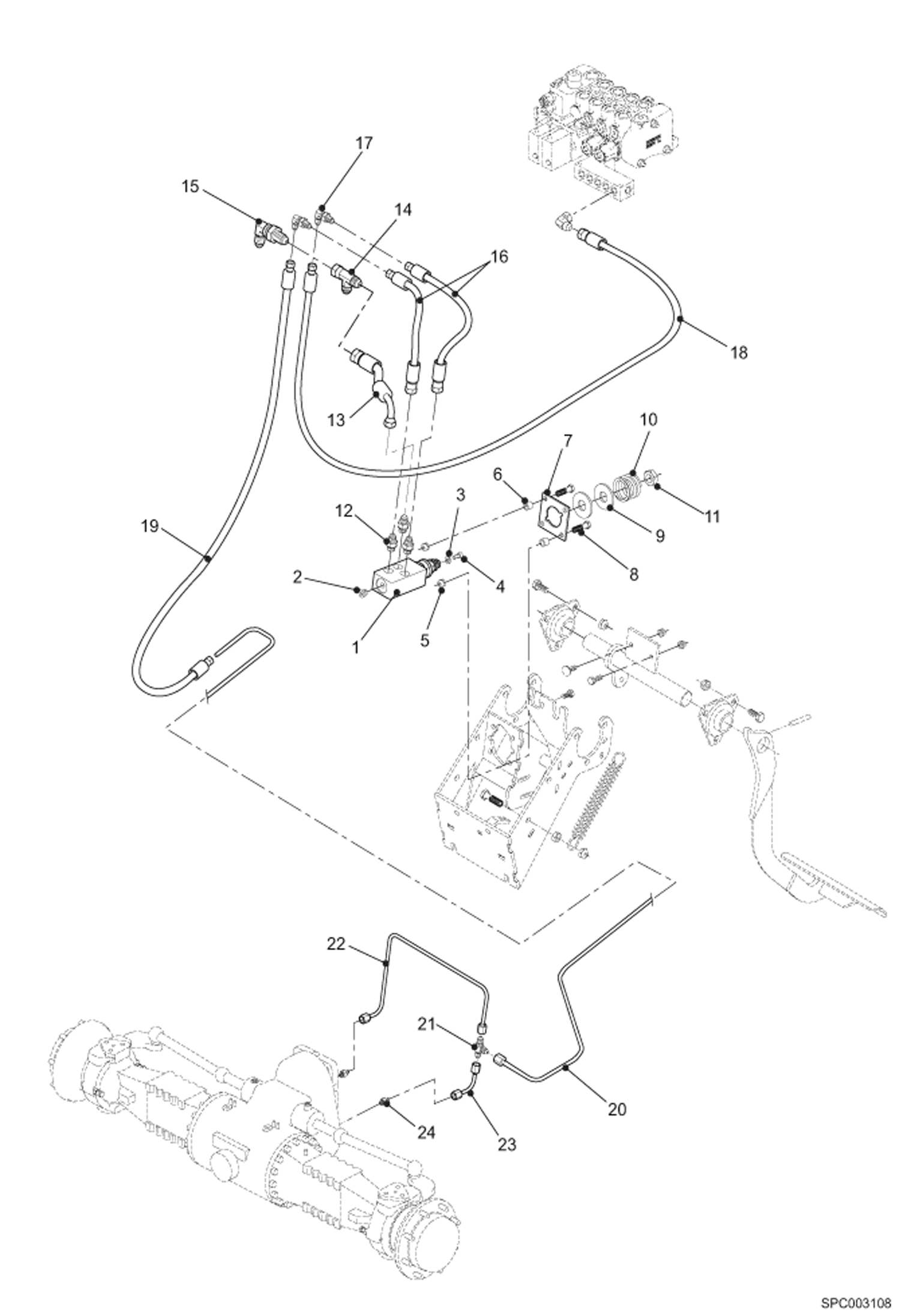

Запчасти Bobcat T2556 SERVICE BRAKE HYDRAULIC INSTALLATION HYDRAULIC SYSTEM

1

90807.9

Brake Valve

2

78927.1

Plug

3

000350-01U

WASHER

4

15354.4

Screw

5

01681.6

Nut Was 51851.4 - B

6

96061.7

Spacer

7

96054.2

Spacer

8

01578.4

Screw

9

96655.6

Washer

10

96656.4

Spring

11

000342-17S

NUT

12

90289.0

Union

13

6908595

HOSE

14

008372-02C

UNION

15

010370-87T

ELBOW PIECE

16

98397.3

Hose

17

67196.6

Elbow

18

6909306

HOSE TJ 7/16 6,4 TJ 9/16 L2500

19

79149.1

Hose

20

89488.1

Tube

21

62849.5

T- union

22

89477.4

Tube

23

89474.1

Tube

24

100375-71D

UNION
