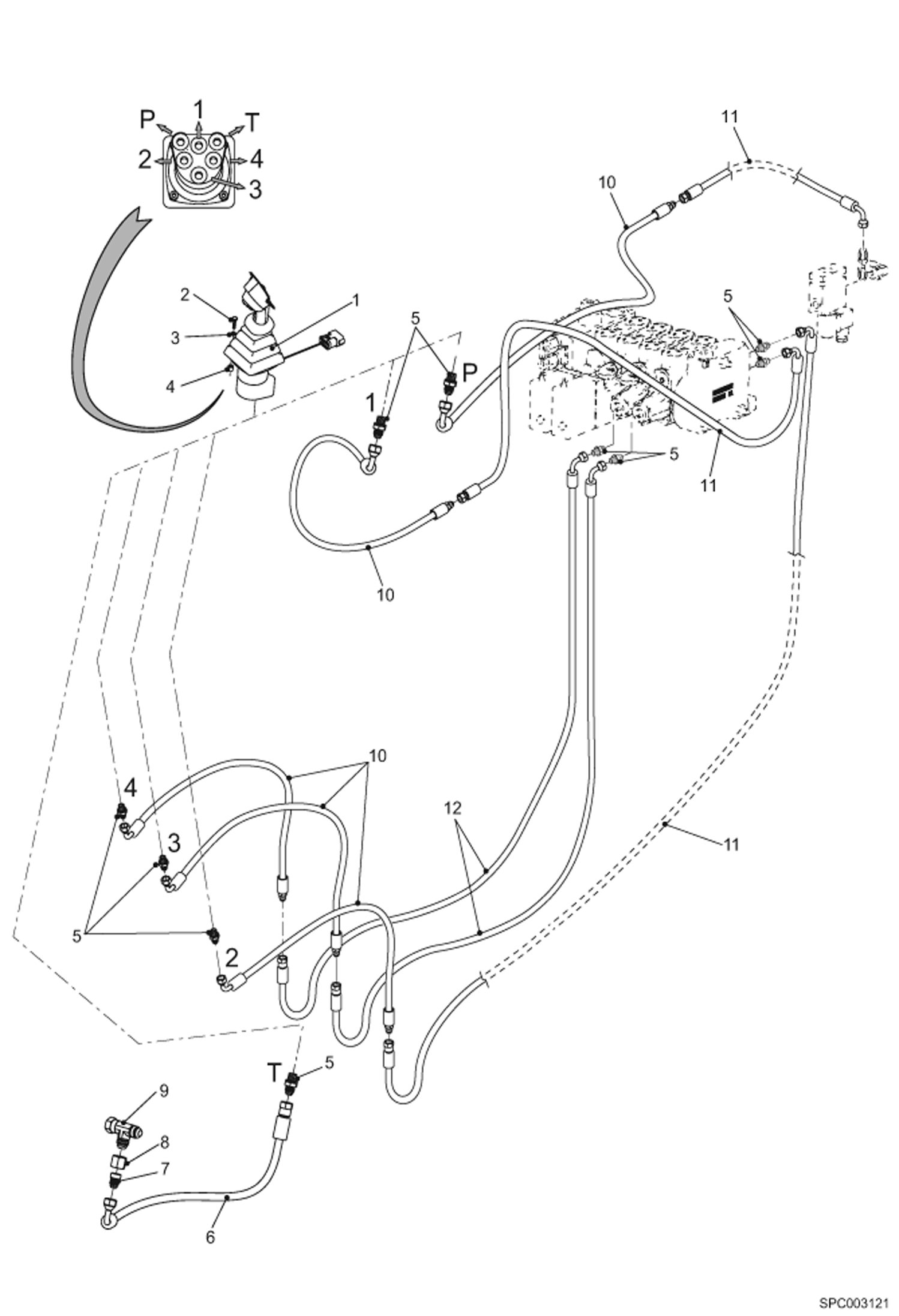

Запчасти Bobcat T2556 JOYSTICK INSTALLATION (WITHOUT AMA) HYDRAULIC SYSTEM

1

6915268

MANIPULATOR Was 6910314 - A

2

01593.3

Screw

3

01696.4

Washer

4

6910953

SPACER,JOYSTICK

5

022375-31Z

UNION

6

6908594

HOSE

7

100375-06H

ADAPTER

8

014345-12C

NUT , ADAPTER

9

008372-02C

UNION

10

6908672

HOSE

11

78728.3

Hose

12

6908671

HOSE TJ90 9/16 6,4 TJ 9/16 L1700
