Запчасти Bobcat T2556 TIMING GEAR POWER UNIT

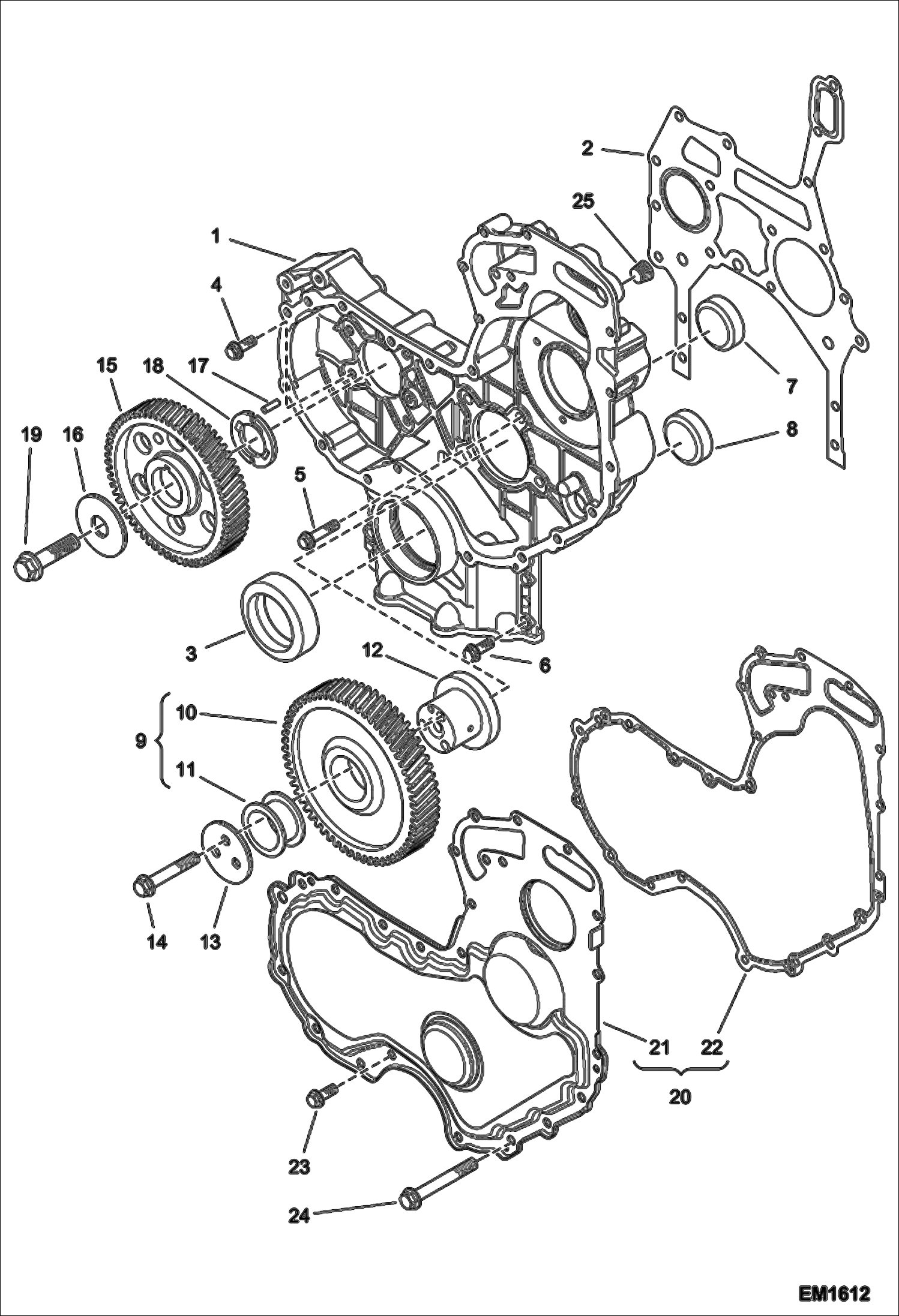

Схема запчастей Bobcat T2556 - TIMING GEAR POWER UNIT

Артикул

Название

Примечание

Количество

1

6924943

TIMING CASE

2

6924902

GASKET - TIMING CASE

3

6924348

FRONT OIL SEAL

4

6668212

SCREW Was 7022440 - A

5

6598031

BOLT Was 64960.8 - A

6

6668258

SCREW Was 7022449 - A

7

6911894

CUP PLUG Was 7017249 - A

8

6912047

CUP PLUG

9

6924906

IDLER GEAR W/Ref. 10-11

10

GEAR NAP - Order Ref. 9

11

BUSHING NAP - Order Ref. 9

12

7013135

HUB Was 6924905 - A

13

6924926

PLATE

14

6668287

SCREW Was 7022452 - A

15

6911919

CAMSHAFT GEAR Was 7017250 - A

16

71386.7

Washer

17

71278.6

DOWEL PIN

18

6911916

THRUST WASHER Was 7017251 - A

19

81019.2

Screw

20

6924347

FRONT COVER KIT W/Ref. 21-22

21

COVER NAP - Order Ref. 20

22

6911971

TIMING COVER JOINT

23

6668487

SCREW Was 7022453 - A

24

93280.6

Screw

25

33219.7

Plug

Выбрано товаров: 25
