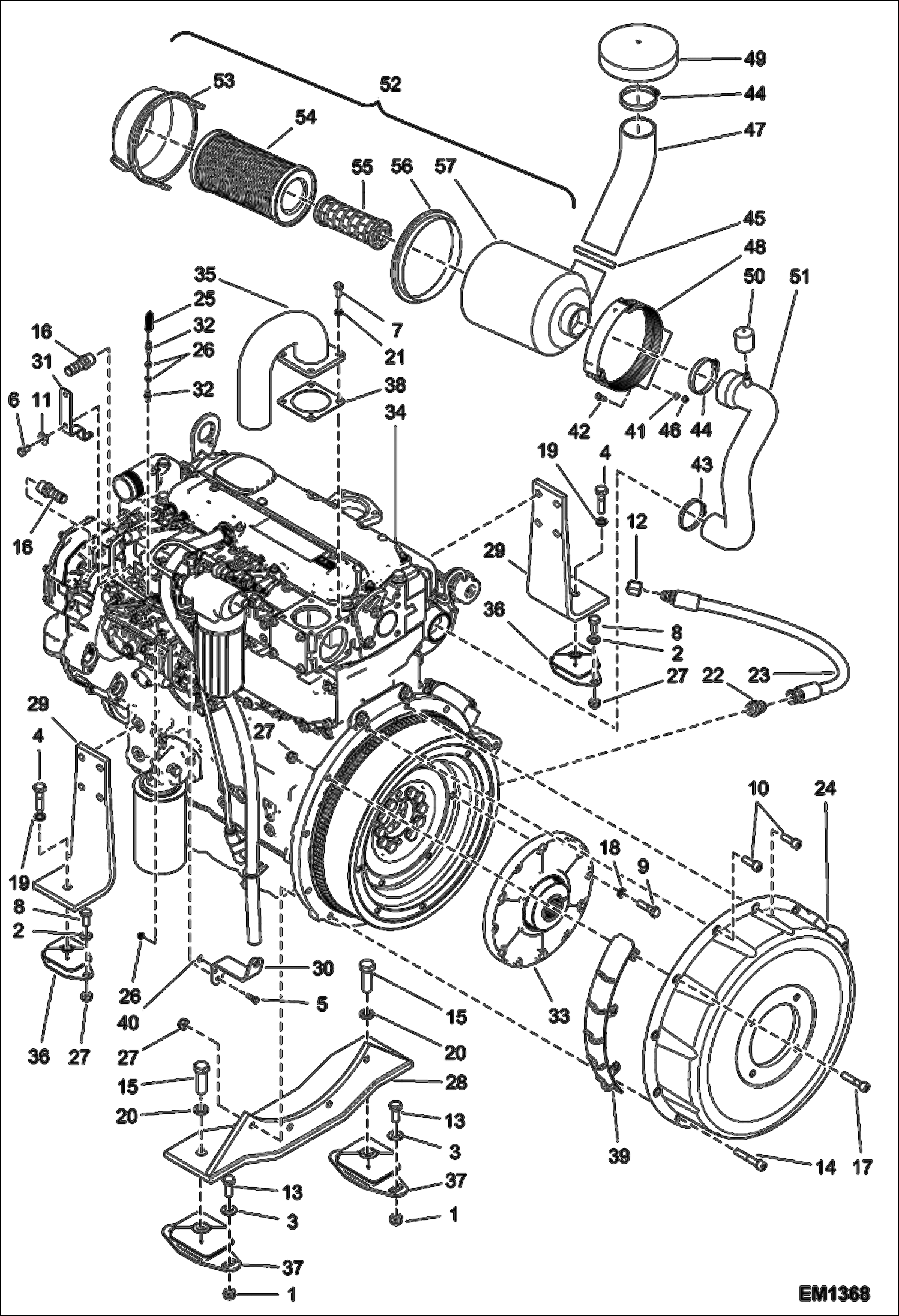

Запчасти Bobcat T2556 ENGINE INSTALLATION POWER UNIT

1

000345-96E

NUT

2

000350-03W

WASHER

3

000350-04X

WASHER M12 14X27 E=2,5

4

01528.9

Screw

5

01591.7

Screw

6

1CM816

BOLT Was 01595.8 - A

7

1CM820

BOLT Was 01596.6 - B

8

01605.5

Screw

9

1CM1040

BOLT Was 01608.9 - B

10

2GM1030

SCREW Was 01640.2 - A

11

01718.6

Washer

12

011374-44C

CUP

13

13399.1

Screw

14

14039.2

Screw

15

28439.8

Screw

16

38441.2

Union

17

54009.6

Screw

18

7225260

WASHER Was 89516.9 - A

19

89517.7

Washer

20

89518.5

Washer

21

89519.3

Washer

22

96461.9

Adapter

23

96462.7

Drain Hose

24

97878.3

Housing

25

98272.8

Spring

26

100345-06W

NUT

27

100345-09A

NUT

28

6908071

SUPPORT

29

6908663

PLATE

30

6910322

BRACKET , THROTTLE

31

6910326

BRACKET , SPRING

32

6910328

BRACKET , SPRING ANCHORING

33

98011.0

Coupling Was 6919219 - D

34

6919322

ENGINE

35

6921134

ENGINE SUPPORT

36

6921192

SILENT BLOCK small

37

6922321

SILENT BLOK medium

38

6923517

INLET SEAL

39

PLATE, ASSY NLA Was 6925727 - D

40

6927129

TAPE ROD

41

01697.2

Washer

42

007330-29V

SCREW HM8-30/30 CL 8.8 ZJ 8

43

29713.5

Clamp

44

35949.7

Clamp

45

38683.9

Collar

46

01681.6

Nut Was 51851.4 - B

47

6916706

HOSE

48

97747.0

Collar

49

6908363

RAIN CAP - FILTER

50

6911276

PLUGGING INDICATOR

51

6916705

HOSE

52

97746.2

Air Filter W/Ref. 53-57

53

6910724

HOUSING

54

6910725

FILTER, AIR OUTER

55

6910726

FILTER, AIR INNER

56

6910727

RING

57

HOUSING NAP
